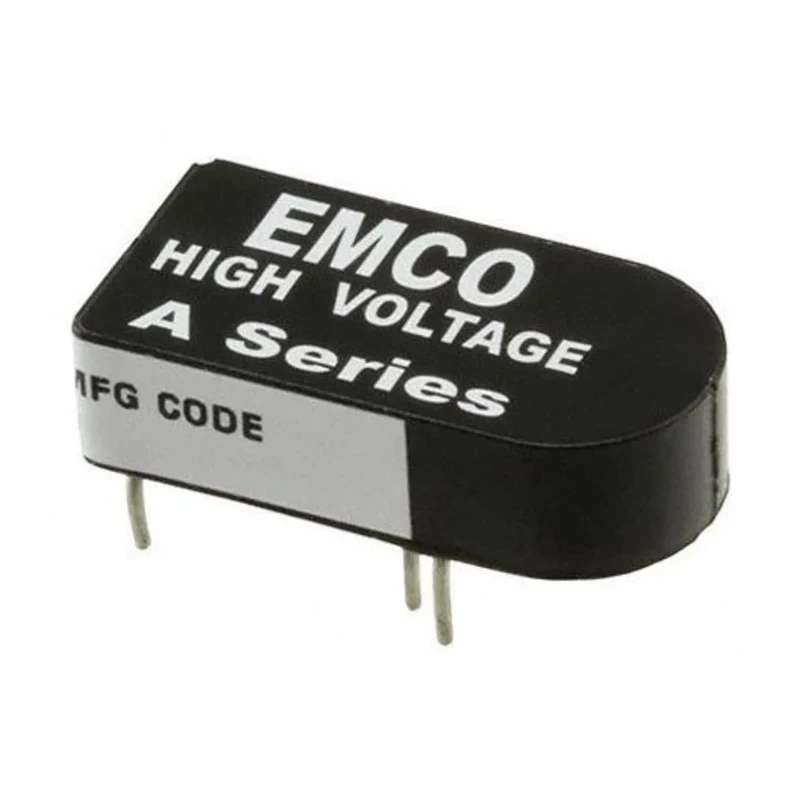

XP Power DC-DC Converter Through Hole 5V Input 500V Output 2mA 1W 75°C Max A05P-5

XP Power A05P-5 DC-DC Converter is a high-performance, isolated device designed for demanding industrial and laboratory applications. This converter features a compact, through-hole mount form factor ideal for PCB integrations where space is limited. With a 5V DC input and a 500V DC output at 2mA, it delivers reliable high-voltage performance for devices requiring precise power conversion.

The converter provides 1 W maximum output power, supporting an operating temperature range of -25°C to 75°C, suitable for environments with significant thermal variation. Built with galvanic isolation, it ensures enhanced safety and separates input and output circuitry, which is critical for sensitive measurements and protection against electrical noise.

Provides 1 W output power with compact footprint. Galvanic input-to-output isolation ensures safety and performance. Features low leakage current and low output/input capacitance. Operating temperature range from -25°C to 75°C for diverse environments.

MTBF of 1,862,000 hours for reliability in critical applications. Suitable for photomultiplier tubes, avalanche photodiodes, mass spectrometry, and capacitor charging. Offers proportional input/output, quasi-sinewave oscillator, and control pin functionality.

Short circuit protection of 1 minute minimum.

Designed for minimal size and weight requirements, the XP Power A05P-5 is used extensively in applications such as photomultiplier tubes, avalanche photodiodes, piezo devices, electrophoresis, capacitor charging, sustaining ion pumps, and mass spectrometry. It requires no external components and can operate with no minimum load.

Installation is simplified with a five-pin configuration and through-hole mounting, integrating easily with standard electronic boards. The converter maintains a ripple and noise profile below 0.5% peak-to-peak for clean high-voltage DC output.

Key industry use cases include scientific instrumentation, medical device power supply, industrial process controls, and high-voltage test equipment. Its robust construction and reliable electronics meet stringent application needs in the laboratory, manufacturing, and research environments.
