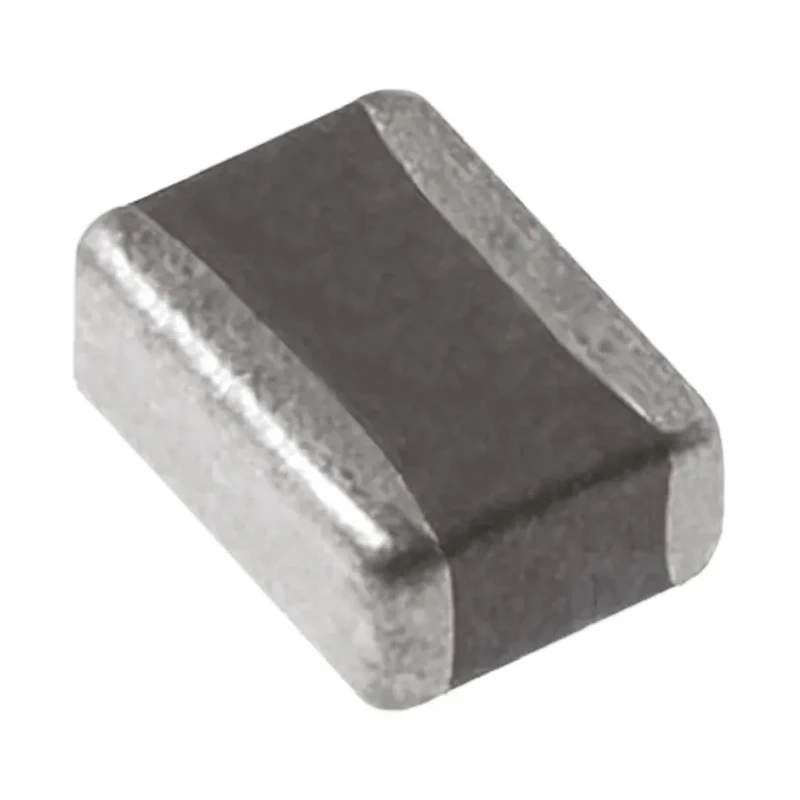

Murata 22 nF Multilayer Ceramic Capacitor 16V dc ±20 % Surface Mount 0603 LLL185R71C223MA01L

Murata LLL185R71C223MA01L is a 22 nF Multilayer Ceramic Capacitor designed for high-performance electronic applications. This MLCC features a 16V dc voltage rating and ±20 % capacitance tolerance, packaged in a 0603 surface mount case suitable for compact PCB designs.

Constructed with an X7R dielectric, it provides stable capacitance values over a wide temperature range from -55°C to a maximum operating temperature of 125°C. The capacitor's stacked monolithic design incorporates reversed geometry for low equivalent series inductance (ESL) from 150 to 250pH, enabling it to effectively reduce high-frequency noise above 200MHz.

These specifications make the LLL185R71C223MA01L ideal for power supply decoupling circuits and applications involving very high-speed CPUs operating beyond 1GHz. Its low ESL and reversed geometry help minimize ground bounce and improve power supply response time in demanding electronic environments.

The compact dimensions of 0.8mm length, 1.6mm width, and 0.5mm height optimize circuit board space, while the surface mount termination type facilitates automated manufacturing processes. Compliance with IEC 60384-14 Class Y3, Y2, X2, X1 and UL RoHS approvals underlines the component's adherence to industrial and environmental standards.

Manufactured in Japan, this component is suitable for industrial, telecommunications, computing, and embedded system applications requiring reliable and noise-reducing capacitors. Capacitance of 22nF suitable for decoupling and filtering applications.

X7R dielectric ensures stability over temperature ranges. Operating temperature range from -55°C to 125°C for robust performance. Low ESL design for effective high-frequency noise reduction. Compact 0.8mm length and 1.6mm width dimensions for space-saving PCB layouts.

Compliance with IEC 60384-14, UL, and RoHS standards ensures quality and safety. Stacked construction offers reliable electrical characteristics. Surface mount termination type supports automated PCB assembly. Browse more Multilayer Ceramic Capacitors by Murata and explore a wide range of electronic components at EnvMart.
