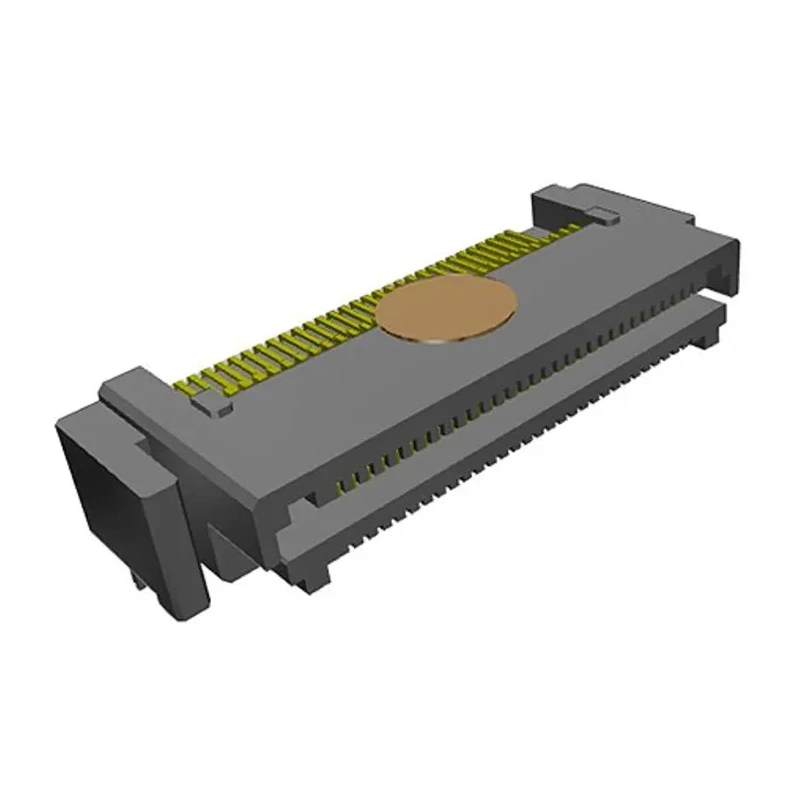

Samtec LSHM Series Right Angle Surface PCB Header, 60 Contacts, 0.5 mm Pitch, 2 Row, Shrouded LSHM-130-01-L-RH-A-N-K-TR

Samtec presents the LSHM-130-01-L-RH-A-N-K-TR series right angle surface PCB header, designed for high-speed, high-density electronic applications requiring reliable board-to-board connections. This connector features 60 phosphor bronze contacts with gold plating, arranged in 2 rows with a pitch of 0.5 mm. The shrouded housing is made of liquid crystal polymer material, offering excellent durability and resistance to electrical interference and thermal stress.

Operating temperature ranges from -55°C to 125°C, allowing usage in demanding industrial, laboratory, and communication equipment environments. The connector supports a maximum current rating of 1.9A and voltage ratings of 160 V and 226 V AC, providing versatile electrical performance for various applications.

The right angle orientation ensures an effective surface mount solution for PCB assemblies, improving device compactness and integration. The hermaphroditic design simplifies inventory and maintenance requirements by allowing self-mating connections, which helps reduce costs. The high-speed capability supports data rates up to 19 Gbit/s in horizontal mounting positions, ensuring efficient signal integrity for advanced electronic devices.

The LSHM series connectors feature razor beam contacts with undercut retention notches, providing high mating and unmating forces alongside audible feedback when connected securely. These features make this PCB header well-suited for industrial machinery, telecommunications hardware, computing devices, and other electronics requiring dense packaging and high signal performance.

Applications extend across industrial electronics, telecommunications, embedded systems, and other advanced electronic manufacturing processes that demand high reliability and precision connections.

This PCB header is shrouded, providing secure and protected connections. Constructed with phosphor bronze contacts plated in gold for reliable conductivity. Housing made from liquid crystal polymer ensures durability and thermal stability.

Operating temperature ranges from -55°C to 125°C, accommodating harsh environments. Supports up to 1.9A current and voltages of 160 V and 226 V AC. The right angle orientation allows for efficient surface mounting on PCB assemblies.

Hermaphroditic design reduces inventory costs by facilitating self-mating connectors. High-speed communication up to 19 Gbit/s in horizontal mounting applications. Suitable for parallel, perpendicular, and coplanar high-density systems.
