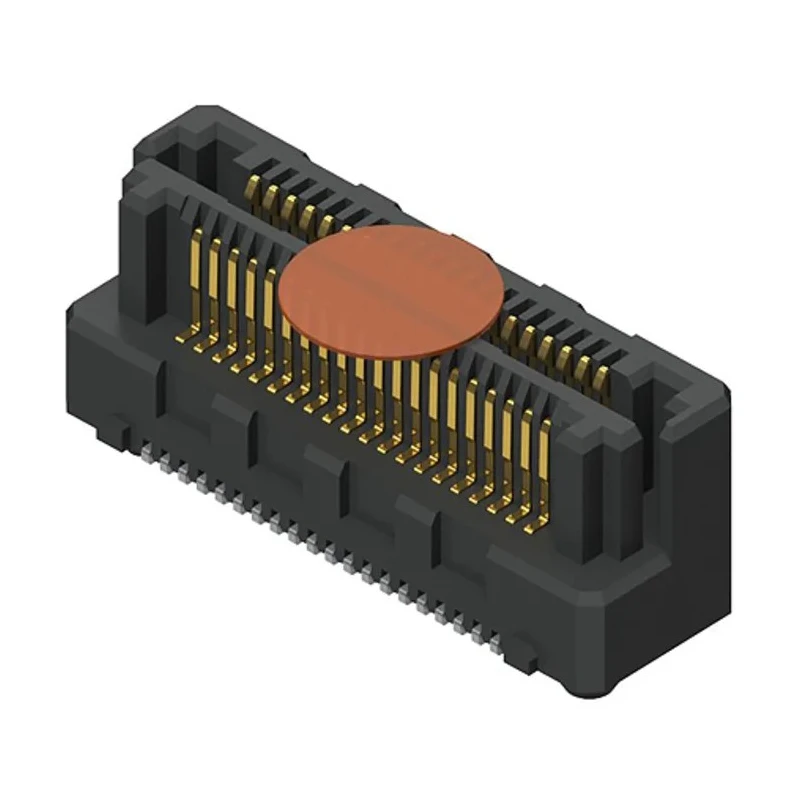

Samtec LSHM Series Straight Surface PCB Header, 80 Contacts, 0.5 mm Pitch, 2 Row, Shrouded LSHM-140-06.0-L-DV-A-N-K-TR

Samtec LSHM-140-06.0-L-DV-A-N-K-TR is a high-density, high-speed straight surface PCB header featuring 80 contacts with a 0.5 mm pitch and 2 rows. This shrouded hermaphroditic SMT board-to-board connector strip offers a slim and ruggedized design for reliable electrical interconnections in demanding electronic systems.

These connectors provide a hermaphroditic design that reduces inventory costs by allowing self-mating of connectors. The razor beam contacts are engineered to provide high retention forces and produce an audible click when mating is secure, enhancing reliability and user confidence during installation.

Designed for robust industrial applications, this PCB header supports operating temperatures from -55°C to 125°C and can handle currents up to 2A, as well as voltages of 160V and 226V AC. The liquid crystal polymer housing ensures excellent durability and electrical insulation, while gold-plated phosphor bronze contacts improve conductivity and corrosion resistance.

The vertical mounting LSHM connectors achieve high-speed data transmission rates up to 23 Gbit/s, and several stack heights ranging from 5 mm to 12 mm can be configured for flexibility in design.

Hermaphroditic SMT connector strips ensure reduced inventory and flexible mating. High-speed performance up to 23 Gbit/s supports demanding electronic communication needs. Ruggedized slim design withstands mechanical stress and environmental challenges.

Gold-plated phosphor bronze contacts provide excellent electrical conductivity. Shrouded, straight orientation protects contacts and ensures reliable mating alignment. Operating temperature range suits applications from -55°C to 125°C.

Supports up to 2A current and voltages of 160V and 226V AC.

This Samtec LSHM series PCB Header is ideal for use in high-speed, high-density applications including industrial automation, telecommunications, computing equipment, and other electronic systems requiring compact and reliable board-to-board connections. It ensures rugged performance in industrial, commercial, and laboratory environments.

Explore the range of Samtec connectors and other high-quality electronic components on EnvMart for your PCB assembly and design needs.
