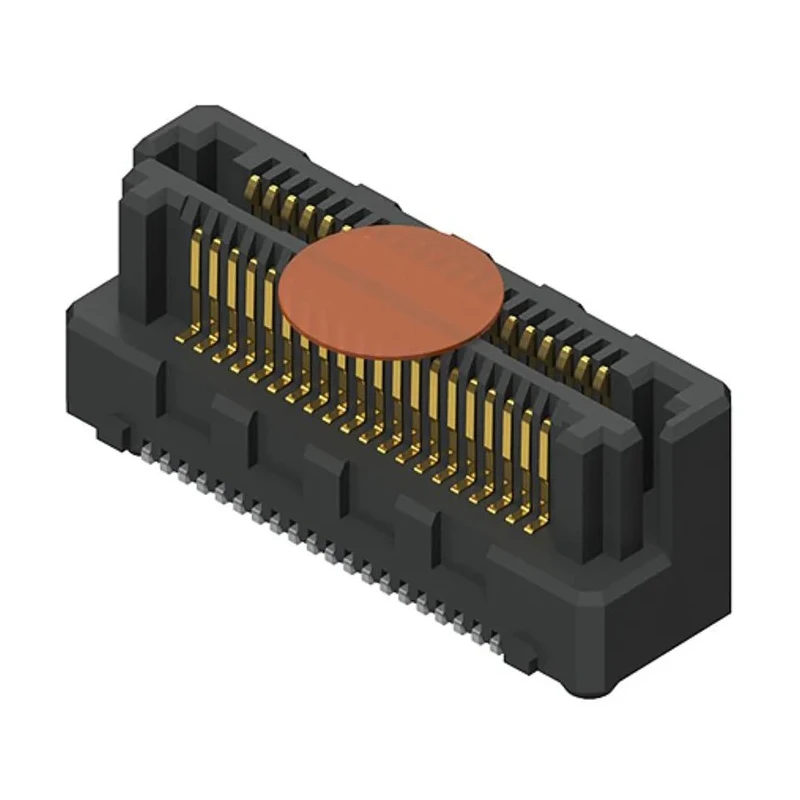

Samtec LSHM Series Straight Surface PCB Header, 60 Contacts, 0.5 mm Pitch, 2 Row, Shrouded LSHM-130-06.0-L-DV-A-N-K-TR

Samtec LSHM-130-06.0-L-DV-A-N-K-TR is a high-performance PCB Header designed for board-to-board connections in electronic applications. It features 60 gold-plated male contacts arranged in two rows with a 0.5 mm pitch, housed in a Liquid Crystal Polymer body that ensures durability and thermal stability.

This shrouded, straight surface mount connector supports voltages of 160 and 226V AC and a current rating of 2A, suited for a range of industrial and commercial electronic systems. Its operating temperature range from -55°C to 125°C makes it ideal for harsh environments.

The hermaphroditic SMT design enables reduced inventory costs by allowing self-mating vertical, right-angle, or reverse right-angle configurations. The razor beam contacts provide high-speed, fine pitch connections with undercut retention notches for increased mating and unmating forces along with audible confirmation clicks.

These connectors offer stack height configurations from 5 mm to 12 mm for greater design flexibility. Their high-speed performance reaches up to 23 Gbit/s for vertical mount and 19 Gbit/s for horizontal mount options. The LSHM Series connectors are compatible with HLCD series high-speed cable assemblies, making them versatile solutions for high-density parallel, perpendicular, and coplanar systems.

High-density 60 contact, 0.5 mm pitch for compact PCB designs. Gold-plated phosphor bronze contacts ensure reliable and corrosion-resistant electrical connections. Liquid Crystal Polymer housing enhances mechanical robustness and temperature tolerance.

Hermaphroditic design reduces inventory and simplifies cabling. Multiple mounting orientations available for diverse application needs. High-speed data transmission capability up to 23 Gbit/s. Operating temperature range from -55°C to 125°C supports industrial environments.

Shrouded design for improved contact protection and alignment. Supports AC voltages of 160V and 226V with 2A current rating.

This PCB header is suited for use in sectors including industrial manufacturing, telecommunications, computing, and high-speed data electronics. It offers robust electrical performance and design flexibility for demanding board-to-board interconnect applications. Browse more PCB Header solutions and other electronic components on EnvMart.
