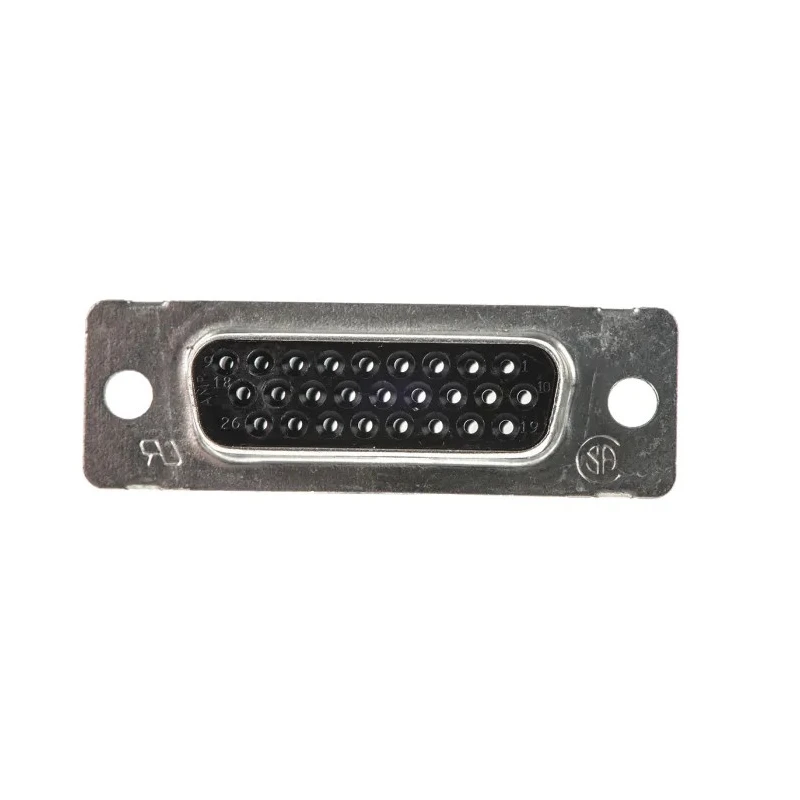

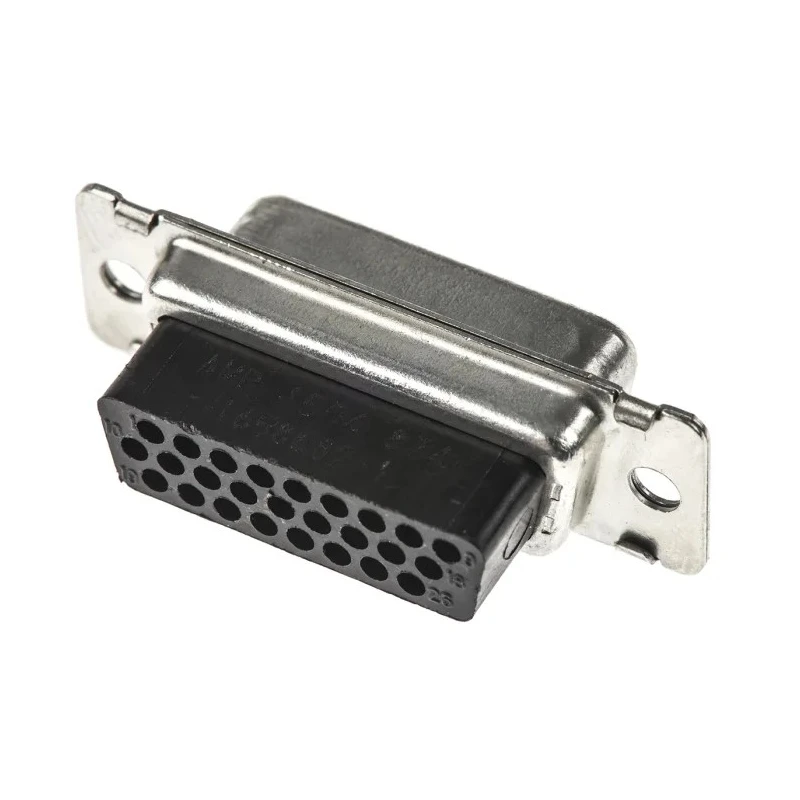

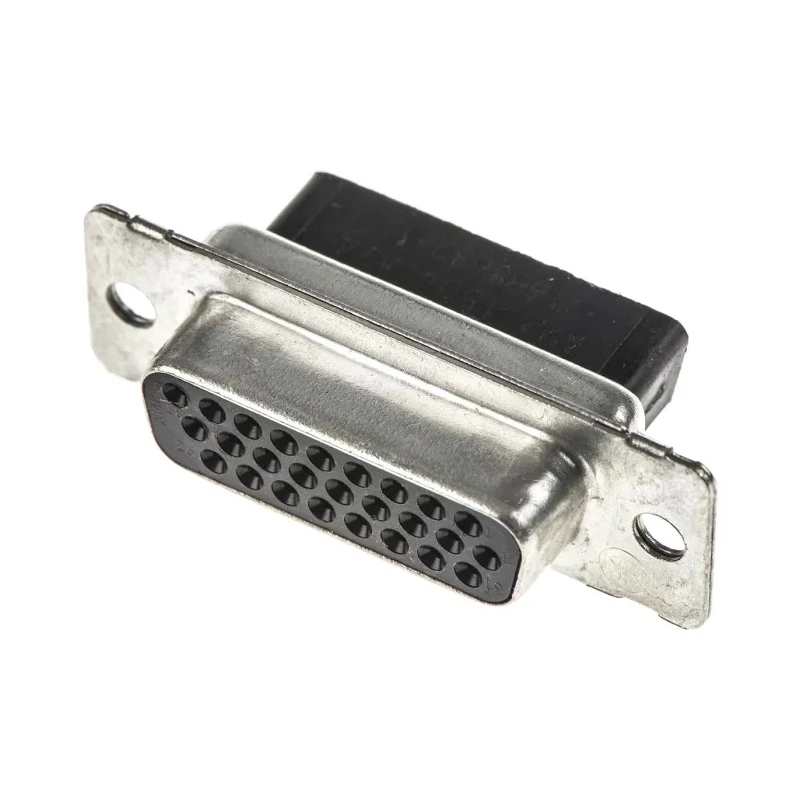

TE Connectivity AMPLIMITE HDP-22 26 Way Straight Cable D-Sub Connector Female 250V 105°C 1658682-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Cable |
| Housing Material | Steel |
| Series | AMPLIMITE HDP-22 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Size | 22 |
| Connector Type D | D-Sub |
| RS PRO 26 Way Straight 2.29 mm Pitch Cable D-Sub Connector FemaleBrand | RS PRO |
| TE Connectivity, AMPLIMITE HDP-22 D-sub Connector Backshell, 26 PinBrand | TE Connectivity |
Key Features
- The connector has 26 contacts providing a high-density solution.
- Features straight orientation with cable mount type suitable for wiring applications.
- Constructed with a steel housing and tin plated shell for durability.
- Operates safely at voltages up to 250V with temperature range from -55°C to 105°C.
- Designed for crimp termination with female contact gender ensuring secure wire connection.
- Complies with RoHS standards supporting environmentally safe use.
- Part of the AMPLIMITE HDP-22 series known for high-density contacts approximately 65% higher than HD-20 connectors.
- Suitable for military, industrial, and commercial electronic interfacing applications.
Product Description
TE Connectivity 1658682-1 AMPLIMITE HDP-22 26 Way Straight Cable D-Sub Connector Female is a high-density electronic connector designed for robust circuit interfacing solutions. Operating at 250V and capable of withstanding temperatures from -55°C up to 105°C, this crimp termination connector is engineered to provide reliable electrical performance in demanding industrial, military, and commercial environments.
This connector is constructed with a tin-plated steel shell combined with a 94V0 black thermoplastic insert ensuring durability and stability over time. The AMPLIMITE HDP-22 series facilitates an approximately 65% higher contact density compared to traditional HD-20 connectors, allowing more connections within the same shell size.
Its cable mount with straight orientation supports cable wiring without compromise on connection integrity. The female gender configuration accommodates corresponding male connectors compliant with MIL-C-C24303 dimensional standards.
This 26-way connector uses size 22 contacts suitable for precision electronic interfacing and high-reliability connections. The connector meets RoHS compliance requirements, supporting adherence to environmental safety regulations.
Ideal for a wide range of applications including military hardware, industrial machinery control, electronic communication systems, computer peripherals, and other commercial interface solutions requiring compact and reliable connection hardware.
The connector features high-density, crimp snap-in contacts in the HDP-22 series. It is built to provide space-saving advantages with durable steel housing and tin plating. Operates under a broad temperature range ensuring dependability in harsh conditions.
Female connector gender designed specifically for mating with compliant male D-sub connectors. Meets strict manufacturing and environmental standards with RoHS certification.
For related connector solutions and accessories, browse the Electronics & Electricals category on EnvMart for a broad array of compatible D-Sub Connectors and components from TE Connectivity and other industry-leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector operates safely at voltages up to 250V.
It can withstand temperatures ranging from -55°C to 105°C.
The connector features 26 contacts, providing a high-density solution.
This model is designed for crimp termination, ensuring a secure wire connection.
It is constructed with a steel housing and a tin-plated shell, providing durability.
The connector has a straight orientation and is designed for cable mounting.
Yes, it complies with RoHS standards, supporting environmentally safe use.
The connector uses size 22 contacts suitable for precision electronic interfacing.
It is suitable for military, industrial, and commercial electronic interfacing applications.
This connector is part of the AMPLIMITE HDP-22 series, known for high-density contacts.
This model features a female contact gender, designed for mating with male connectors.
The connector is manufactured in India.
