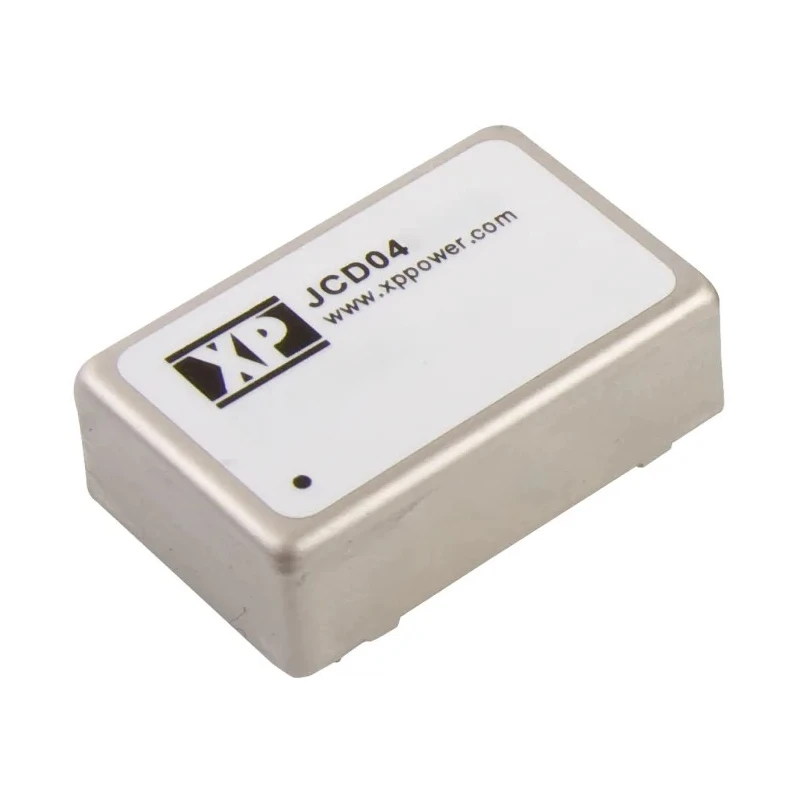

XP Power JCD Series 4W Isolated DC/DC Converter 3.3V DC Output 1.2A 18-36V DC Input Through Hole DIP Package JCD0424S3V3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Efficiency | 77% |
| Length | 31.75mm |
| Model | JCD0424S3V3 |
| Depth | 10.4mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCD |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 4W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 1.2A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Features a through-hole DIP package for easy PCB mounting and integration.
- Offers high isolation voltage of 1.6kV DC ensuring electrical safety and noise immunity.
- Designed to operate in extreme temperature ranges from -40°C to 100°C for industrial environments.
- Demonstrates 77% efficiency for effective power conversion and energy savings.
- Equipped with continuous short circuit protection for enhanced reliability in applications.
- Compact dimensions measuring 31.75mm length, 20.32mm width, and 10.4mm depth optimize board space.
- High MTBF of 1,100,000 hours ensures long-term dependable operation.
- Complies with RoHS environmental standards, supporting green manufacturing initiatives.
Product Description
XP Power JCD0424S3V3 is a 4 Watt isolated DC/DC converter from the reputable JCD series designed for industrial and electronic applications requiring stable and efficient power conversion. It provides a 3.3 Volt output at 1.2 Amperes from a wide DC input range of 18 to 36 Volts, suitable for battery-powered devices and other DC sources.
The device features a through-hole mounting DIP package, facilitating simple and secure PCB assembly. Its robust design includes an isolation voltage of 1.6kV DC, providing protection against electrical noise and surges while maintaining signal integrity across isolated circuits.
The converter is optimized for industrial temperature operation from -40°C to 100°C, making it ideal for harsh environments such as manufacturing equipment, communications infrastructure, and embedded systems. With an efficiency of 77%, it ensures energy-efficient operation, reducing heat dissipation and power loss.
Additional protective features include continuous short circuit protection, enhancing system reliability and safeguarding connected components in demanding applications.
Compact in size (31.75mm x 20.32mm x 10.4mm), the XP Power JCD0424S3V3 conserves valuable board space without compromising performance or safety standards. The product meets RoHS compliance, supporting environmentally responsible development and deployment.
Features a through-hole DIP package for straightforward PCB mounting. Wide 2:1 input voltage ratio ranges from 18V to 36V DC supply voltages. Isolated output with 1.6kV DC isolation voltage for enhanced safety. Operating temperature range from -40°C to +100°C for versatility in environments.
Efficiency rating of 77% for effective power management. Continuous short circuit protection enhances reliability and durability. High MTBF rating of 1,100,000 hours ensures long service life. Compact dimensions optimize space in electronic assemblies.
Complies with RoHS environmental directives for green compliance.
This DC/DC Converter is widely applicable in industrial machines, communication devices, instrumentation, and embedded system power supplies where reliable and efficient isolated power conversion is critical.
Explore EnvMart’s extensive range of XP Power converters and related power supply products to find solutions tailored to your industrial and electronic power conversion needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The XP Power JCD0424S3V3 provides a 3.3V DC output at a maximum current of 1.2A.
It operates within a wide input voltage range of 18V to 36V DC.
This DC/DC converter has an efficiency rating of 77%, ensuring effective power management.
The compact dimensions are 31.75mm in length, 20.32mm in width, and 10.4mm in depth.
It features a high isolation voltage of 1.6kV DC, providing enhanced electrical safety.
It is designed to operate in extreme temperature ranges from -40°C to 100°C.
This model utilizes a through-hole DIP package for easy PCB mounting.
Yes, it is equipped with continuous short circuit protection to enhance reliability in applications.
The JCD0424S3V3 has a high MTBF rating of 1,100,000 hours, indicating long-term dependable operation.
Yes, it complies with RoHS environmental standards, supporting green manufacturing initiatives.
It is widely applicable in industrial machines, communication devices, instrumentation, and embedded systems requiring reliable power conversion.
This model has a single output configuration.
