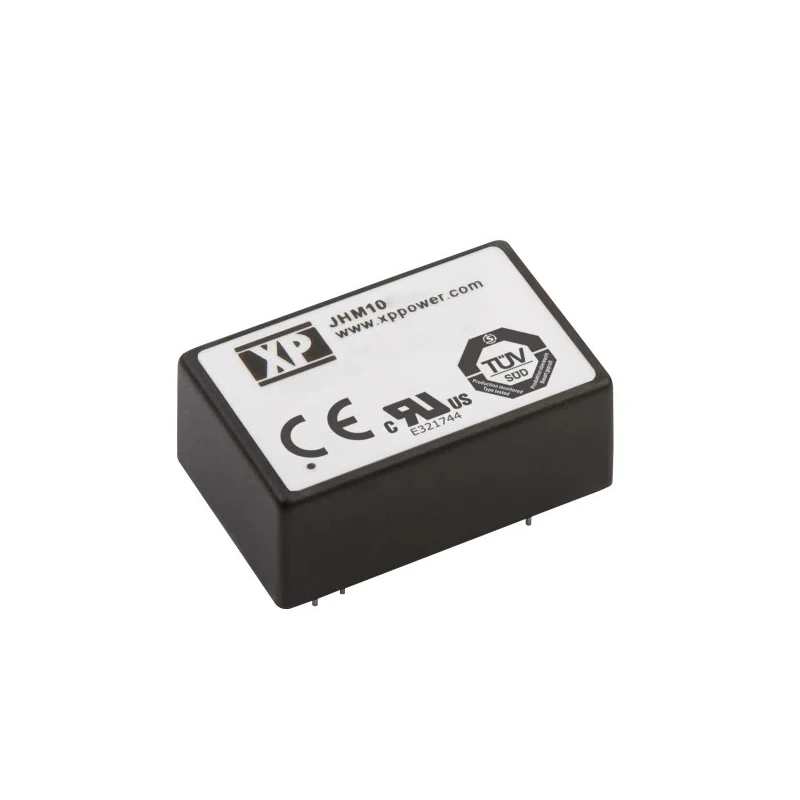

XP Power Isolated 10W DC/DC Converter 12V -12V Output, 420mA, 9-18V Input, Through Hole DIP-24 Package JHM1012D12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JHM DC/DC Converter, 12V, -12 V/ 420 mA |
| Brand | XP Power |
| Efficiency | 88% |
| Length | 31.75mm |
| Model | JHM1012D12 |
| Depth | 10.4mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JHM |
| Maximum Operating Temperature | 80°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 2 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 24 |
| Output Voltage 1 | 12, -12V |
| Output Current 1 | 420mA |
| Isolation Voltage | 4kV ac |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Features a through-hole DIP-24 package for easy board mounting.
- Provides reinforced insulation with 4000 VAC isolation voltage for safety and reliability.
- Wide operating temperature range from -40°C to 80°C suitable for harsh environments.
- High efficiency rating of 88% reducing energy consumption.
- MTBF of 1,000,000 hours ensuring long-term durability.
- Low patient leakage current of 2 μA meeting international medical standards IEC60601-1.
- Meets IEC60601-1 3rd edition safety approvals for medical and industrial use.
- Manufactured in Taiwan with quality assurance.
Product Description
XP Power JHM1012D12 DC/DC Converter is a highly reliable and isolated converter designed to deliver dual output voltages of 12V and -12V at 420mA current with a maximum output power of 10W. It operates from a DC input voltage range of 9V to 18V with a typical 2:1 input ratio. Packaged in an industry-standard DIP-24 through-hole format, it allows convenient board mounting for electronic and medical equipment.
This converter offers reinforced 4000 VAC insulation voltage and complies with IEC60601-1, 3rd edition safety standards, making it suitable for medical and industrial applications requiring stringent safety and low patient leakage current of 2 microamps. The device operates efficiently at 88%, minimizing power losses and thermal stress over a broad temperature range from -40°C to 80°C.
The JHM1012D12's modular design supports various industrial sectors including electronic components, power supplies, medical instruments, and laboratory equipment. Its long mean time between failures (MTBF) of 1,000,000 hours ensures dependable operation in demanding environments.
Through-hole DIP-24 package with 24 pins for robust mechanical mounting. Dual output voltages 12V and -12V with a continuous output current of 420mA per channel. Wide input range 9 to 18V DC with input ratio 2:1 providing flexibility in power sources.
Reinforced insulation and 4kV isolation voltage for electrical safety compliance. IEC60601-1 medical safety approvals and low leakage for patient safety. Operating temperature from -40°C to 80°C for harsh environment suitability.
88% efficiency for reduced heat dissipation and improved power management. Compact dimensions of 31.75mm (L) x 20.32mm (W) x 10.4mm (D) saving PCB space. Ideal for medical, industrial, laboratory power supply needs, embedded applications, and instrumentation.
Manufactured in Taiwan, ensuring consistent product quality. Explore the XP Power product range on EnvMart for high-performance DC/DC Converters tailored for electronics and power supply systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of 12V and -12V at a continuous output current of 420mA per channel.
It operates with a DC input voltage range of 9V to 18V, featuring a typical input ratio of 2:1.
The maximum output power of this unit is 10W.
The converter has compact dimensions of 31.75mm in length, 20.32mm in width, and 10.4mm in depth.
It has an efficiency rating of 88%, which helps in reducing energy consumption and thermal stress.
This model features a through-hole DIP-24 package, allowing for easy board mounting.
The JHM1012D12 provides reinforced insulation with an isolation voltage of 4000 VAC.
It operates effectively within a wide temperature range from -40°C to 80°C, suitable for harsh environments.
This converter meets IEC60601-1, 3rd edition safety approvals, making it suitable for medical and industrial applications.
The MTBF for the JHM1012D12 is 1,000,000 hours, indicating long-term reliability.
This unit has two outputs, providing both 12V and -12V.
The device has a low patient leakage current of 2 μA, complying with international medical standards.
