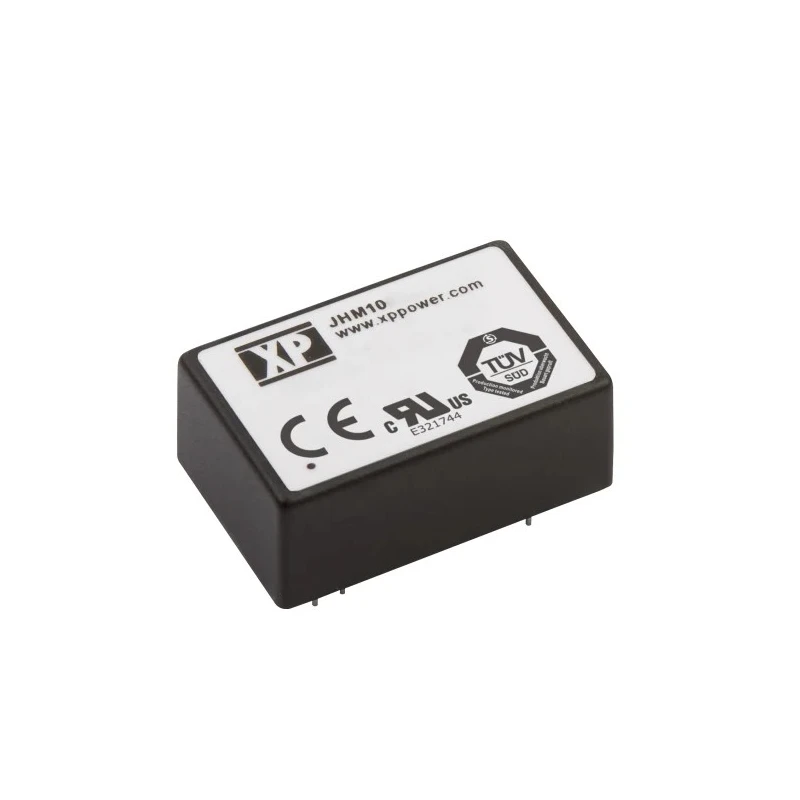

XP Power Isolated DC/DC Converter 10W, 5V DC Output, 600mA, 4.5V-9V DC Input, Through Hole SIP Package JHM1005D15
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JHM DC/DC Converter, 5V dc/ 600 mA, 9V dc |
| Brand | XP Power |
| Efficiency | 85% |
| Length | 31.75mm |
| Model | JHM1005D15 |
| Depth | 10.4mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JHM |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 2 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 9V dc |
| Minimum Input Voltage | 4.5V dc |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 600mA |
| Isolation Voltage | 4kV ac |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Through hole mounting type with SIP package for easy board integration.
- Supports a wide operating temperature range from -40 °C to 85 °C.
- Features 4kV AC isolation voltage ensuring electrical safety and noise reduction.
- Achieves 85% efficiency for energy-saving performance.
- Compact dimensions of 31.75mm length, 20.32mm width, and 10.4mm depth.
- High reliability with mean time between failures (MTBF) of 1,100,000 hours.
Product Description
XP Power JHM1005D15 is a high-reliability isolated DC/DC converter designed for industrial, medical, and electronic applications requiring stable 5V DC output at 600mA. It operates efficiently within a 4.5V to 9V DC input voltage range and delivers a maximum output power of 10 watts.
This converter features a through-hole SIP package, facilitating easy board mounting and integration into circuits. With 4kV AC reinforced insulation, it ensures electrical isolation and protects sensitive components. The device supports dual outputs and includes 7 pins in total, optimized for versatile power management needs.
Its wide operating temperature range from -40 °C to +85 °C makes it suitable for challenging environments, including industrial and medical applications. The converter meets safety regulations with an international medical standard IEC60601-1, 3rd edition, limiting patient leakage current to 2 μA, thereby ensuring suitability for medical equipment use.
The device is engineered to high standards with a mean time between failures (MTBF) of over 1 million hours, guaranteeing long-term reliability. Its compact size of 31.75mm by 20.32mm by 10.4mm optimizes PCB space utilization.
XP Power JHM series DC/DC converters are widely used in power supplies and voltage regulation for industrial equipment, laboratory instrumentation, and medical devices that require isolated and stable DC power.
Through hole mounting type with SIP package for easy board integration. Supports a wide operating temperature range from -40 °C to 85 °C. Features 4kV AC isolation voltage ensuring electrical safety and noise reduction. Achieves 85% efficiency for energy-saving performance.
Includes dual outputs with 7 pins and 2:1 input ratio suitable for various applications. Compact dimensions of 31.75mm length, 20.32mm width, and 10.4mm depth. High reliability with mean time between failures (MTBF) of 1,100,000 hours.
Explore EnvMart's extensive range of DC/DC Converters for industrial, laboratory, medical, and electronic power solutions from trusted brands like XP Power.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 5V DC and a maximum output current of 600mA.
It operates efficiently within a DC input voltage range of 4.5V to 9V.
The device features an isolation voltage of 4kV AC, ensuring electrical safety and noise reduction.
The compact dimensions of this unit are 31.75mm in length, 20.32mm in width, and 10.4mm in depth.
It achieves an efficiency of 85%, contributing to energy-saving performance.
This converter supports a wide operating temperature range from -40°C to +85°C.
This unit features dual outputs, providing versatility for various applications.
It has a mean time between failures (MTBF) of 1,100,000 hours, indicating high reliability.
This model utilizes a through-hole SIP package for easy board integration.
It meets the international medical standard IEC60601-1, 3rd edition, ensuring suitability for medical equipment use.
This converter includes a total of 7 pins, optimized for versatile power management needs.
It is designed for industrial, medical, and electronic applications that require stable DC power.
