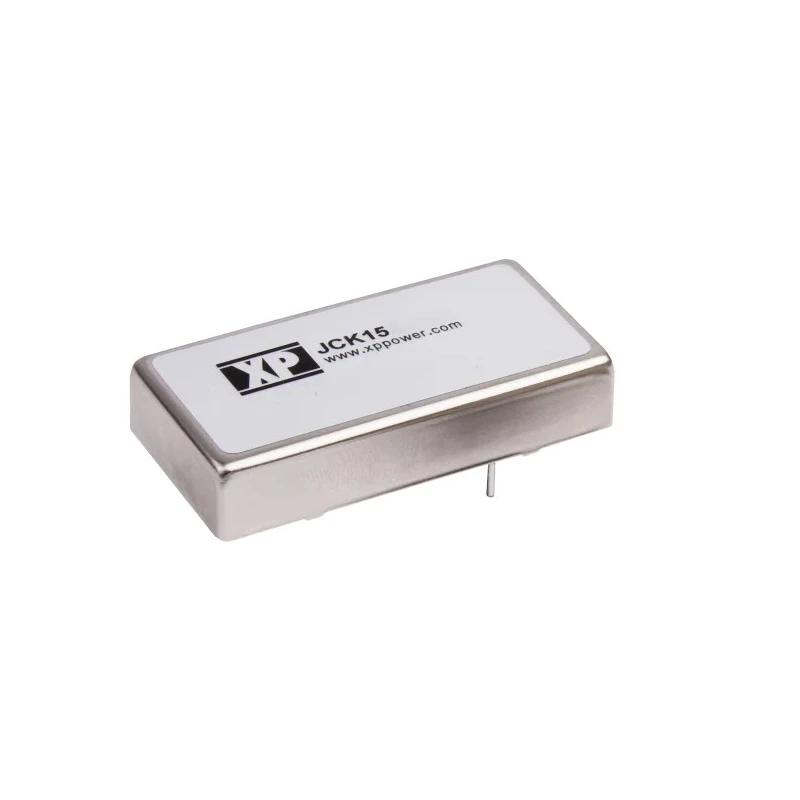

XP Power JCK DC/DC Converter 5V DC Output 3A 36V DC Input 15W Through Hole DIP Package JCK1524S05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCK DC/DC Converter, 5V dc/ 3 A, 36V dc I |
| Brand | XP Power |
| Efficiency | 85% |
| Length | 50.8mm |
| Model | JCK1524S05 |
| Depth | 10.16mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JCK |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 5 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 3A |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Provides isolated DC-DC conversion with 1500 VDC isolation for electrical safety.
- Compact DIP package measuring 50.8mm length, 25.4mm width, and 10.16mm depth.
- Operating temperature range from -40°C up to 100°C ensuring reliability in harsh environments.
- High efficiency of 85% for energy-saving operation.
- Constructed for continuous short circuit protection enhancing durability.
- Designed with 5 pins to support single output configuration.
- MTBF rated at 1,100,000 hours for high reliability and long life.
- Suitable for board mount applications in industrial electronics and power systems.
Product Description
XP Power JCK1524S05 DC/DC Converter is a highly reliable and efficient isolated power converter designed for electronic components and power applications requiring stable 5V output at up to 3A current. It operates across a wide DC input voltage range of 18V to 36V, accommodating varying power supply conditions with a 2:1 input ratio. Housed in an industry standard DIP through-hole package measuring 50.8mm in length, 25.4mm in width, and 10.16mm in depth, the converter ensures easy integration in PCB board mount systems.
This model supports a maximum output power of 15W and offers electrical isolation of 1500 VDC, safeguarding sensitive electronics from voltage spikes or disturbances. It features continuous short circuit protection and maintains operation efficiency at 85%, promoting energy savings and thermal management. Its operating temperature range extends from a low of -40°C to a maximum of 100°C, enabling deployment in a variety of industrial, commercial, and instrumentation environments.
The converter includes five pins facilitating a single isolated output and boasts a mean time between failures (MTBF) of 1,100,000 hours, emphasizing its dependable performance. XP Power's JCK series is particularly suitable for applications in industrial control, instrumentation, communication systems, and power supply conditioning.
Isolated 15W DC-DC converter with 1500 VDC electrical isolation. Wide input voltage span from 18V to 36V DC at 2:1 ratio. High operating temperature tolerance from -40°C to +100°C. Compact DIP Through Hole package for standardized mounting.
5V DC output with 3A maximum current capacity. Energy efficient with 85% typical conversion efficiency. Robust continuous short circuit protection built-in. High MTBF rating ensuring long-term reliability.
This XP Power DC/DC Converter is an ideal choice for precise voltage step-down needs in industrial power supplies, automation equipment, and electronic instruments supporting reliable and safe voltage conversion. Explore the XP Power product range for comprehensive power solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a DC input voltage range of 18V to 36V, accommodating a 2:1 input ratio.
The maximum output power of the JCK1524S05 is 15W, providing a stable 5V output at up to 3A current.
It features a typical efficiency of 85%, promoting energy savings during operation.
This unit has a compact DIP package measuring 50.8mm in length, 25.4mm in width, and 10.16mm in depth.
The converter provides electrical isolation of 1500 VDC, ensuring safety for sensitive electronics.
It operates effectively in temperatures ranging from -40°C to 100°C, making it suitable for harsh environments.
This model supports a single output configuration, designed with five pins for easy integration.
The XP Power JCK1524S05 is designed for through-hole mounting, suitable for PCB board applications.
The MTBF for the JCK1524S05 is rated at 1,100,000 hours, indicating high reliability and long operational life.
Yes, it includes continuous short circuit protection, enhancing its durability during operation.
This model is particularly suitable for applications in industrial control, instrumentation, communication systems, and power supply conditioning.
It is constructed in a DIP package, making it easy to integrate into various electronic systems.
