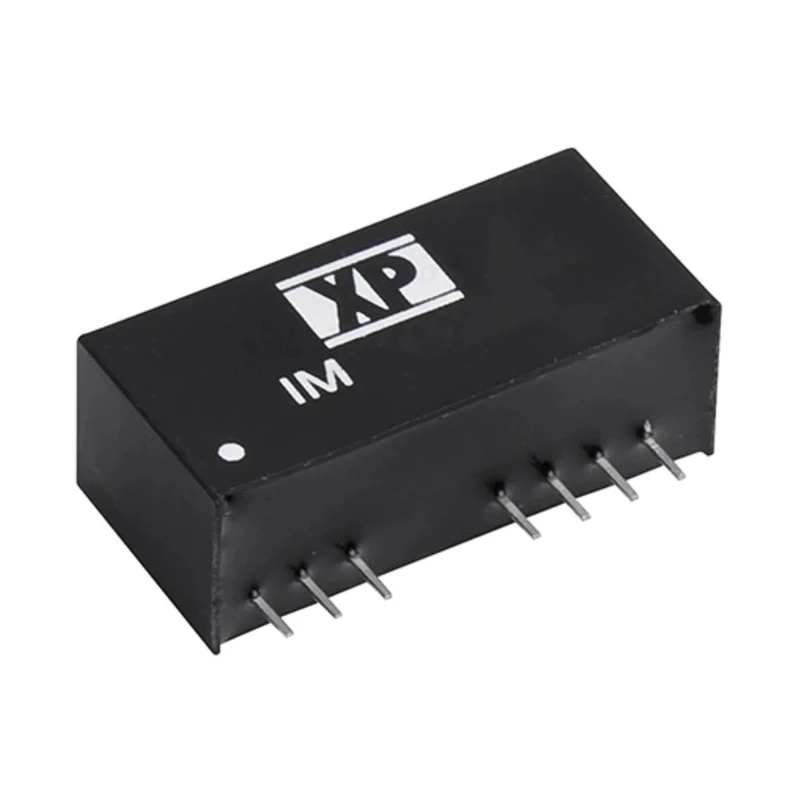

XP Power Isolated DC-DC Converter 5V 400mA 75V Input 18V Input 2W Through Hole SIP Package IM4805SA

XP Power IM4805SA is an isolated DC-DC converter designed to provide stable 5V DC output at 400mA current with a maximum output power of 2 watts. The converter accepts a wide input voltage range from 18V up to 75V DC, accommodating various power source configurations. Packaged in a through-hole SIP form factor, it ensures ease of integration and stability in printed circuit board assemblies.

Its high isolation voltage of 1.5kV DC safeguards sensitive components by electrically isolating input and output circuits. The converter achieves an 80% efficiency rating, reducing heat generation and improving energy consumption. It supports remote on/off control and continuous short circuit protection for enhanced functionality and safety.

Rated for operation in extreme temperature environments ranging from -40°C to 100°C, this model is suitable for demanding industrial, telecommunications, and instrumentation power management applications. The compact size (26mm length, 12.5mm depth, 9.2mm width) allows for space-efficient designs without compromising performance.

The IM series from XP Power, including the IM4805SA, is highly reliable with an MTBF of 1.2 million hours, promising long-term operational stability. These isolated DC-DC converters are ideal for engineering projects requiring regulated power sources with isolation, temperature resilience, and fault protection.

This converter supports an input voltage range from 18V to 75V DC for flexible power applications. It features a high isolation voltage of 1.5kV DC ensuring safe electrical separation. The unit operates efficiently at 80% efficiency maximizing power usage.

It includes a single output with remote on/off control and continuous short circuit protection. Designed for harsh environments, it operates from -40°C up to 100°C maximum temperature. The package dimensions (26mm length, 12.5mm depth, 9.2mm width) suit compact circuit designs.

Typical applications include industrial power supply, telecom, and instrumentation requiring regulated power conversion. Long mean time between failures (MTBF) of 1,200,000 hours indicates high reliability.
