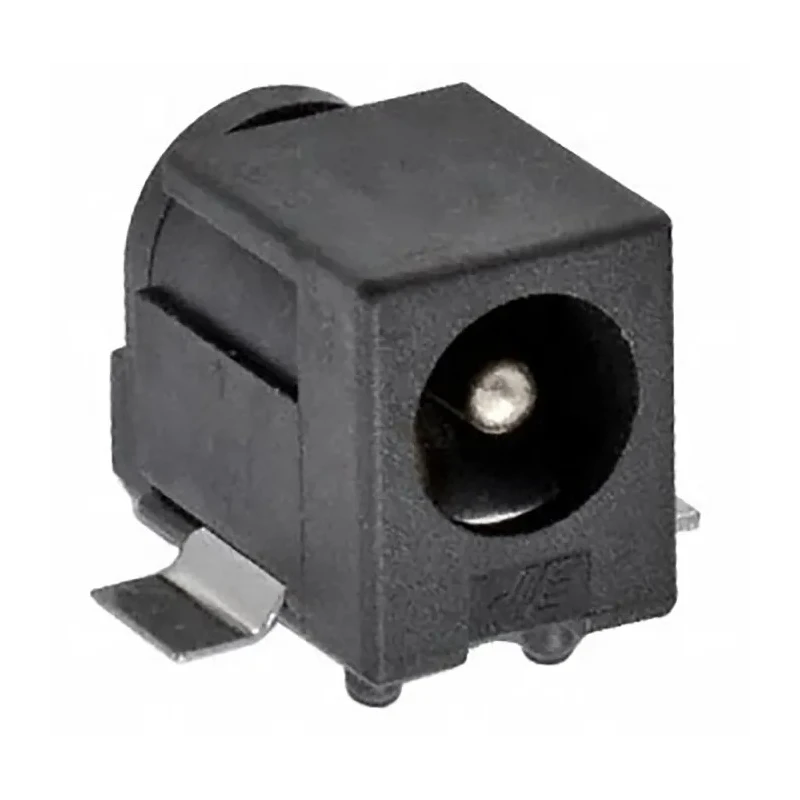

Wurth Elektronik WR-DC Right Angle DC Socket 5A 24V PCB Mount Length 9 mm Gold Tin 694108105102

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-DC Right Angle DC Socket 5A 24V PCB Mount Length 9 mm Gold Tin 694108105102

Name: Wurth Elektronik WR-DC Right Angle DC Socket 5A 24V PCB Mount Length 9 mm Gold Tin 694108105102
Brand: Wurth Elektronik
SKU: 140365
Price: 2.55 USD
Availability: InStock



Category PCB Connectors Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Voltage	24V
Brand	Wurth Elektronik
Orientation	Right Angle
Current	5A
Length	9mm
Width	14.5mm
Mount Type	PCB
Contact Material	Copper Alloy
Series	WR-DC
Termination Type	Solder
Outside diameter	5.55mm
Inside Diameter	2.5mm
Pin Diameter	5.5mm
Contact Plating	Gold, Tin
Contact Gender	Female
Connector Gender	Female

Key Features

This socket features a female connector gender for easy mating with DC plugs.
The contact plating comprises gold and tin for enhanced conductivity and corrosion resistance.
It has a right angle orientation suitable for PCB mounting in compact electronic designs.
The barrel diameter measures 6.4 mm with internal diameters of 2.5 mm and pin diameter of 5.5 mm.
The socket is constructed with copper alloy contacts and a black UL94-V0 PA9T housing for safe and durable use.
It is designed with board guides for precise positioning on the PCB.
This part originates from Taiwan, Province Of China, ensuring quality manufacturing.
Ideal for low voltage DC power applications in electronics, industrial, and communications equipment.

Product Description

Wurth Elektronik 694108105102 WR-DC Right Angle DC Socket is a high-quality PCB mount DC power connector designed for 5A current and 24V voltage applications. Featuring a female connector with right angle orientation, this socket enables efficient and reliable power transfer in compact electronic assemblies. The contacts are gold and tin plated over a copper alloy material to enhance conductivity and durability.

The socket housing is manufactured from black UL94-V0 PA9T, ensuring flame retardancy and resistance to environmental stress. It measures 9 mm in length and 14.5 mm in width with a barrel diameter of 6.4 mm, an inside diameter of 2.5 mm, and a pin diameter of 5.5 mm. The solder termination type and board guides facilitate secure and accurate PCB mounting.

This component does not carry specific standards or approvals but is widely used within low voltage DC power systems, including industrial, electronic, telecommunications, and laboratory equipment. Manufactured in Taiwan, it meets the demanding requirements of modern electronics design, providing reliable power connections with minimal voltage drop and mechanical robustness.

This DC socket incorporates internal normally closed single switch features. Gold and tin plating on contacts reduces corrosion and improves electrical performance. Right angle orientation enables space-saving PCB layouts.

Solder termination ensures secure and stable electrical connection. Excellent for applications requiring 5A current at 24V DC. Durable black UL94-V0 PA9T housing resists heat and impact. Board guides support precise mounting on printed circuit boards.

Wurth Elektronik’s WR-DC series caters to various industrial and commercial electronics applications. This DC power socket is suitable for manufacturing, assembly, research laboratories, and repair environments. Explore more connectors and accessories in the PCB Connectors category at EnvMart to complete your electronic component selection.
