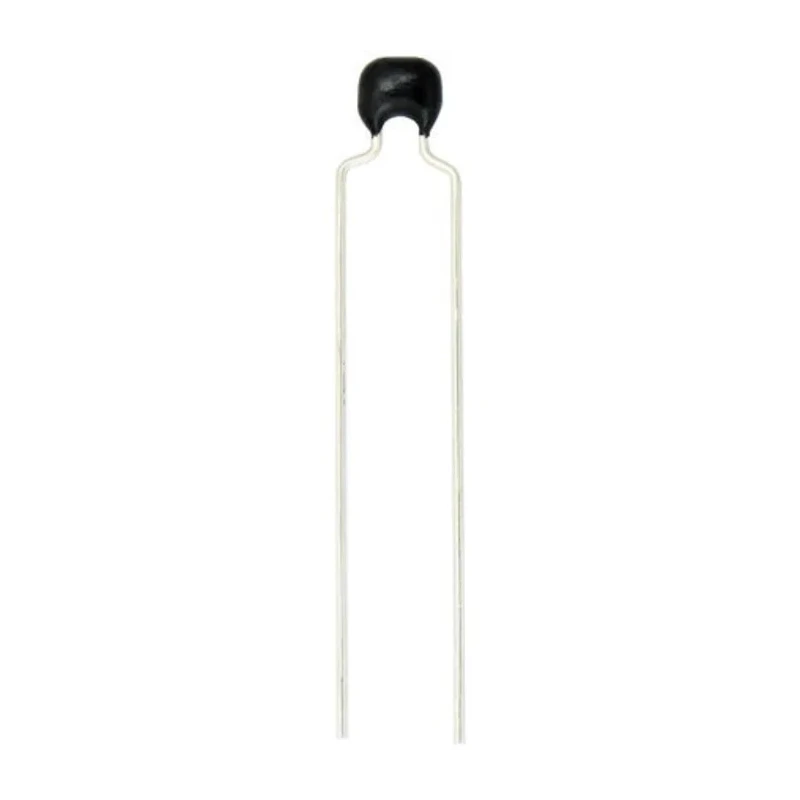

Vishay 100 pF 200V DC ±5% Multilayer Ceramic Capacitor Through Hole Radial K101J15C0GK53H5H

Name: Vishay 100 pF 200V DC ±5% Multilayer Ceramic Capacitor Through Hole Radial K101J15C0GK53H5H
Brand: Vishay
SKU: 140104



Category Multilayer Ceramic Capacitors Brand Vishay Condition New

Specifications

Country of Origin	China
Voltage	200V dc
Brand	Vishay
Height	2.6mm
Length	3.8mm
Model	K101J15C0GK53H5H
Packaging	Bulk
Width	3.8mm
Mount Type	Through Hole
Series	K-H
Termination Type	Radial
Maximum Operating Temperature	175°C
Tolerance	±5 %
Capacitance	100pF
Minimum Operating Temperature	-55°C
Standards/Approvals	EIA, UL, EN, RoHS, IEC
Lead Diameter	0.5mm
Dielectric	C0G
Automotive Standard	AEC-Q200
Suppression Class	Class I
Lead Spacing	5mm
Seated Plane Height	2.6mm

Key Features

This capacitor has a high operating temperature of up to 175°C, suitable for harsh environments.
It is AEC-Q200 qualified for automotive applications ensuring high reliability.
The C0G dielectric offers stable and predictable characteristics over temperature and time.
Radial mounting with 5 mm lead spacing and 0.5 mm lead diameter for secure PCB connection.
Capacitor dimensions are 3.8 mm length, 3.8 mm width, and 2.6 mm height for compact installation.
Constructed with 100% tinned copper-clad straight or crimped leads for efficient soldering.
Complies with industry standards including EIA, UL, EN, RoHS, and IEC for quality assurance.
Ideal for EMI filtering and timing circuits in automotive and industrial electronics.

Product Description

Vishay K101J15C0GK53H5H Multilayer Ceramic Capacitor is designed for demanding automotive and industrial applications, offering a capacitance of 100 pF and voltage rating of 200V DC. It features a through hole radial mounting style and a stable C0G dielectric, delivering excellent reliability and performance.

This capacitor is qualified to the AEC-Q200 automotive standard, ensuring suitability for the harshest operating environments with a maximum operating temperature of 175°C. The capacitor maintains a capacitance change of ±330 ppm/K from -55°C to +175°C, providing consistent electrical characteristics over temperature variations.

The device includes 100% tinned copper clad leads available in straight or crimped styles, with a lead spacing of 5 mm and lead diameter of 0.5 mm to facilitate reliable PCB mounting. Its compact dimensions of 3.8 mm by 3.8 mm by 2.6 mm make it ideal for space-constrained designs.

This capacitor is designed for high reliability and performance in automotive EMI filtering applications such as cable harnesses, turbochargers, throttle valves, brake system controls, exhaust gas sensors, and seat position sensors.

The C0G (NP0) dielectric ensures stable, predictable electrical characteristics over time and temperature, making it suitable for filtering, timing, and sample-and-hold circuits requiring high Q and stability.

Compliant with industry standards including EIA 198, IEC 60384-9, UL 94 V-0 flame retardant epoxy resin, RoHS, and IEC. Manufactured via a wet build process with noble metal electrodes for superior quality. Bulk packaging supports high volume assembly and manufacturing efficiency.

The Vishay K-H series capacitors provide unmatched maximum operating temperatures for ceramic dielectrics and are built to meet stringent automotive and industrial requirements. This capacitor is sourced from China and is new with full compliance and certifications.
