SKF Single Row Angular Contact Ball Bearing 80 mm ID, 170 mm OD, 39 mm Race Width 7316 BECBM

Free Delivery in India | Lowest Global Shipping Charges

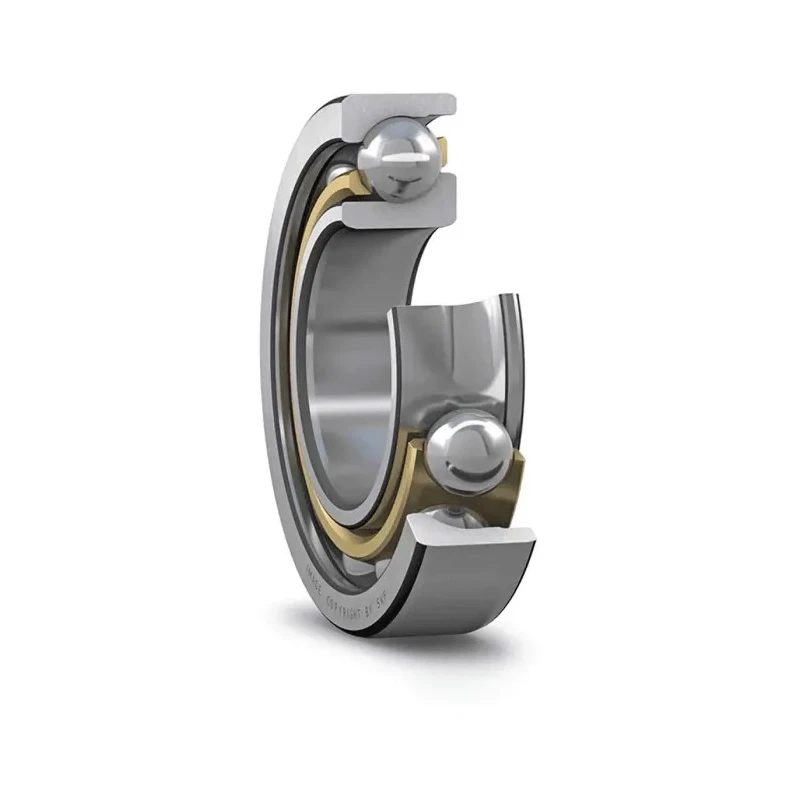

SKF Single Row Angular Contact Ball Bearing 80 mm ID, 170 mm OD, 39 mm Race Width 7316 BECBM



Category Rotary Bearings & Housing Units Brand SKF Condition New

Specifications

Country of Origin	Germany
Brand	SKF
Model	7316 BECBM
Series	7316
Outside diameter	170mm
Inside Diameter	80mm
Number of Rows	1
Ball Material	Steel
Limiting Speed	6300rpm
Internal Clearance	CN
End Type	Open
Bore Type	Parallel
Bearing Type	Single Row Angular Contact Ball
Cage Material	Brass
Race Width	39mm
Static Load Rating	118kN
Dynamic Load Rating	143kN
Contact Angle	40°

Key Features

The bearing has a brass cage and steel balls for durability.
It is an open-end type with a single row configuration.
The nominal contact angle is 40 degrees to increase axial load capacity.
The bearing has a parallel bore type and CN internal clearance.
Static and dynamic load ratings are 118 kN and 143 kN, respectively.
It can operate at limiting speeds up to 6300 rpm.
This model is part of the SKF 7316 series produced in Germany.

Product Description

SKF 7316 BECBM is a single row angular contact ball bearing engineered with an 80 mm inside diameter, 170 mm outside diameter, and a 39 mm race width. It is designed to support combined loads, accommodating both radial and axial forces simultaneously, which makes it suitable for various industrial and mechanical applications.

The bearing's brass cage and high-quality steel balls ensure longevity and efficient performance under demanding conditions. Its 40° nominal contact angle significantly enhances its axial load-carrying capacity, an essential feature for applications requiring precise load transmission.

Featuring an open end type and parallel bore, this bearing provides flexibility in mounting and maintenance. The internal clearance marked as CN indicates normal internal clearance, which balances operational noise and heat generation. Static and dynamic load ratings of 118 kN and 143 kN respectively reflect its robustness and suitability for high-load environments.

With a limiting speed of 6300 rpm, the SKF 7316 BECBM bearing is well-suited for high-speed industrial machinery, laboratory instruments, and manufacturing equipment. Its German origin ensures high standards of quality and reliability.

The bearing features a brass cage and steel ball elements for durability. It is a single row angular contact type suitable for combined loads. The nominal contact angle of 40 degrees enhances axial load capacity. The bearing has open ends and a parallel bore for easy installation.

Static load rating is 118 kN, and dynamic load rating is 143 kN. The design supports speeds up to 6300 rpm, ideal for industrial applications. It belongs to the 7316 series and is manufactured in Germany. This bearing is commonly used in industrial machines, mechanical power transmission setups, and rotary equipment requiring high precision and durability.

Explore similar high-quality ball bearings and related components on EnvMart to find the perfect fit for your engineering needs.
