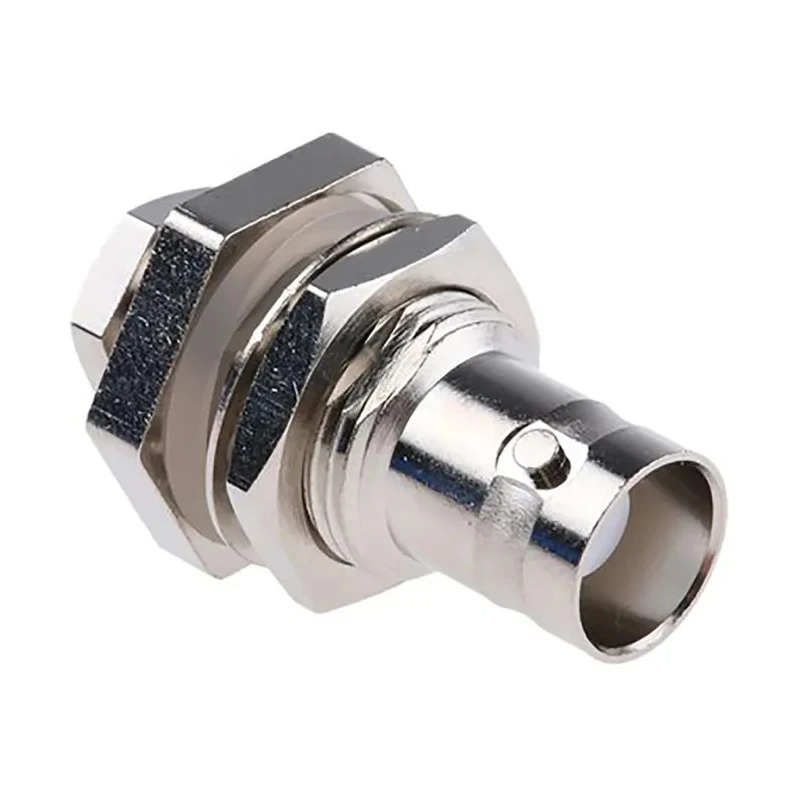

Telegartner BNC Series Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body Clamp 100123526

Free Delivery in India | Lowest Global Shipping Charges

Telegartner BNC Series Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body Clamp 100123526

Name: Telegartner BNC Series Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body Clamp 100123526
Brand: Telegartner
SKU: 139229
Price: 32.36 USD
Availability: InStock



Category Coaxial Connector Brand Telegartner Condition New

Specifications

Country of Origin	Germany
Size	Standard
Brand	Telegartner
Orientation	Straight
Mount Type	Panel Mount
Operating Frequency	4GHz
Contact Material	Beryllium Copper
Series	BNC
Termination Type	Clamp
Maximum Operating Temperature	165°C
Cable Type	RG316/U
Minimum Operating Temperature	-65°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Gold
Contact Gender	Female
Connector Gender	Female
Coaxial Connector Type	BNC
Body Plating	Nickel

Key Features

Features a reliable bayonet coupling mechanism for quick connect/disconnect.
Gold plated beryllium copper contacts ensure excellent conductivity.
Designed for panel mount installation with a standard size and bulkhead design.
Operates up to a frequency of 4 GHz suitable for high-frequency signals.
Suitable for RG316/U cable type with clamp termination ensuring a strong mechanical connection.
Body plated with nickel for corrosion resistance and durability.
Wide operating temperature range from -65°C to 165°C for versatility.
Rated IP54 between mated plug and jack providing reasonable protection against dust and water.

Product Description

Telegartner 100123526 BNC Series Coaxial Connector is a panel mount female BNC connector designed for industrial and electronic use, offering 50 Ω impedance with a straight body and clamp termination type. Operating up to 4 GHz frequency, it supports high-frequency data, video, and signal transmission, making it suitable for various electronics, manufacturing, and communication applications.

The connector features a bayonet coupling mechanism that requires only a quarter turn to connect or disconnect, enhancing ease of use and reliability. Its contacts are made of beryllium copper with gold plating to ensure excellent electrical connectivity, while the nickel-plated body provides strong corrosion and environmental resistance.

Designed to accommodate RG316/U cable type, this standard-sized Coaxial Connector is bulkhead mountable with a clamp termination ensuring a secure mechanical connection. It withstands harsh operational environments with an operating temperature range from -65°C up to 165°C. The IP54 rating between mated plug and jack offers good protection against dust and water splash.

Applications include signal, data, and video transmission in industrial machinery, communication equipment, laboratory instruments, and other electronics requiring robust RF connections. This product is manufactured in Germany, aligning with stringent quality and manufacturing norms.

Reliability through bayonet coupling mechanism. High conductivity from gold plated beryllium copper contacts. Durable nickel-plated body for corrosion resistance. Supports high frequency up to 4 GHz. Clamp termination suitable for RG316/U cable type.

Wide temperature operating range from -65°C to 165°C. IP54 rating between mated plug and jack. Panel mount bulkhead design standard size. Applications in signal, video, and data transmission. Made in Germany for assured quality.

Explore the Telegartner series connectors on EnvMart for reliable industrial and electronic coaxial connections.
