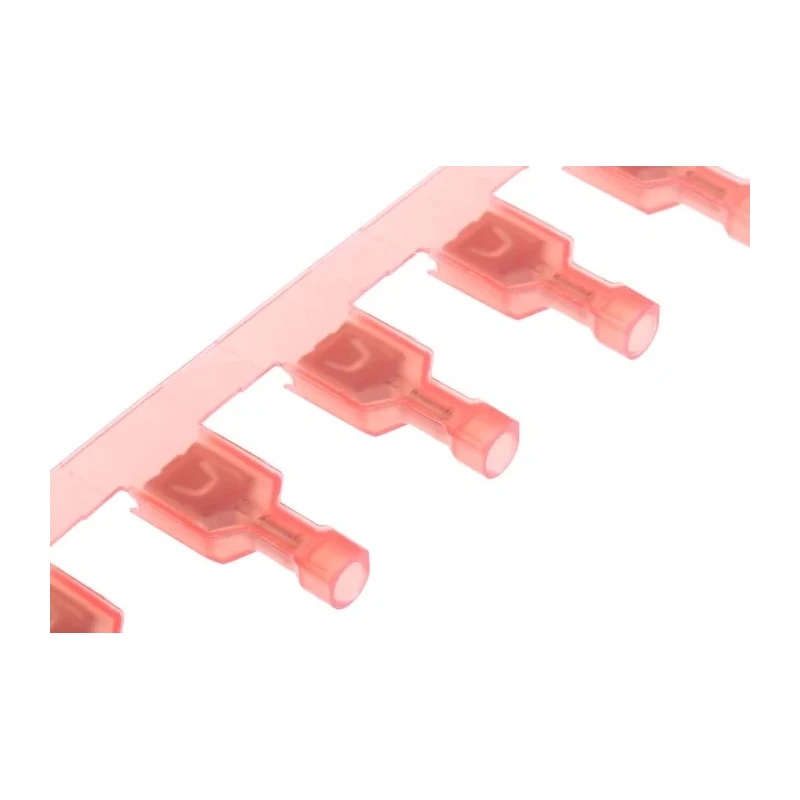

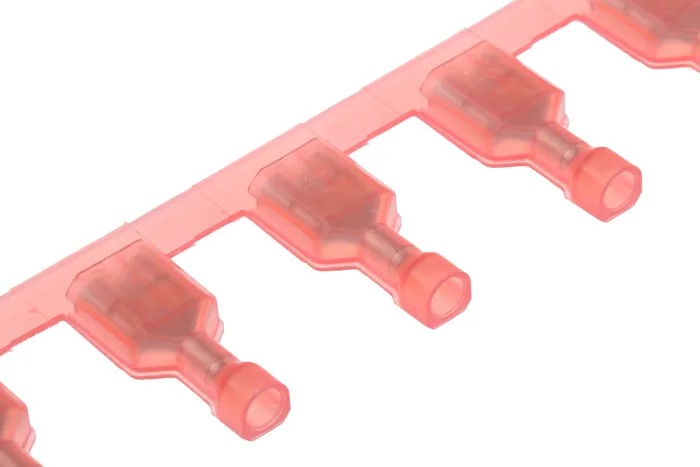

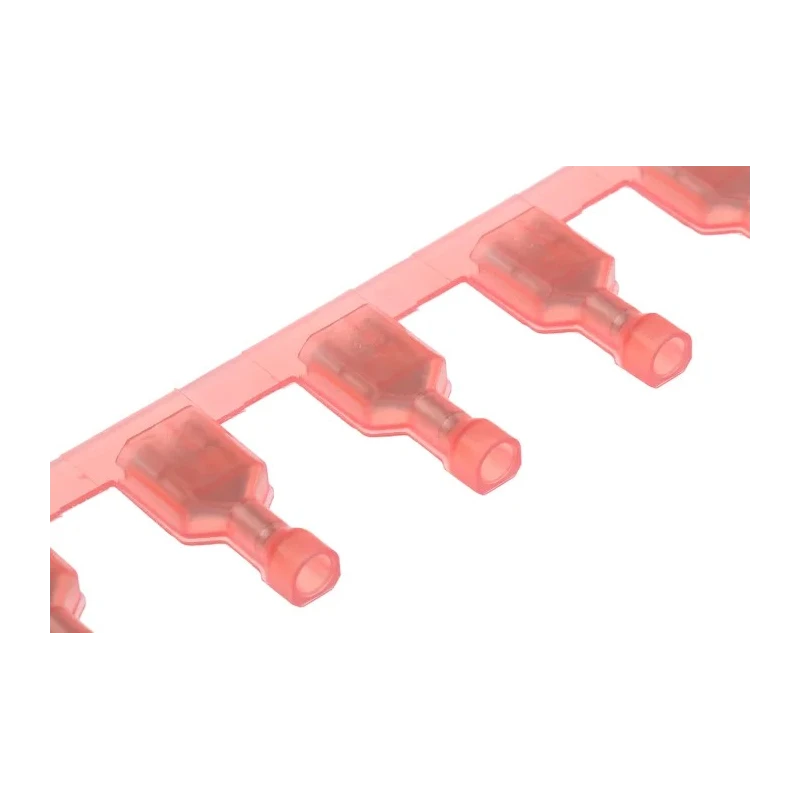

TE Connectivity Insulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size Red Ultra-Fast .250 2-520183-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Insulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size Red Ultra-Fast .250 2-520183-2

Name: TE Connectivity Insulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size Red Ultra-Fast .250 2-520183-2
Brand: TE Connectivity
SKU: 209619
Price: 0.37 USD
Availability: InStock



Category Spade Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Colour	Red
Orientation	Straight
Gender	Female
Insulation	Insulated
Overall Length	0.855mm
Contact Material	Brass
Series	Ultra-Fast .250
Termination Type	Crimp
Insulation Material	Polyamide 66
Contact Plating	Tin
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Tab Width	6.35mm
Tab Thickness	0.81mm
Tab Size	6.35 x 0.81 mm

Key Features

Fully insulated to prevent shock and electrical short circuits.
Built with brass contact material plated with tin for reliable conductivity.
Red polyamide 66 translucent housing enables visual inspection of termination.
Funnelled design housing provides easy wire insertion and prevents wire fraying.
Compatible with 6.35 x 0.81 mm tab size for secure connection.
Straight orientation suitable for various electrical applications.
Designed for solid, fused, and stranded wires within 0.3 mm² to 0.8 mm² wire size.

Product Description

TE Connectivity 2-520183-2 Ultra-Fast .250 insulated female spade connector features a crimp type termination designed for wires sized 22 AWG to 18 AWG. It is engineered for optimal electrical performance in electronic, electrical power distribution, and industrial equipment applications.

The connector uses brass contact material plated with tin to ensure corrosion resistance and reliable conductivity. Its fully insulated polyamide 66 housing provides protection against shock and electrical short circuits, meeting the needs of demanding industrial environments.

This model includes a translucent red V-2 rated nylon housing, allowing for visual inspection of the wire termination and is color-coded for convenient wire gauge identification. The funnel-shaped housing design facilitates easy wire insertion and minimizes frayed ends to ensure a reliable, long-lasting connection.

Specifically built for straight orientation tabs measuring 6.35 mm width by 0.81 mm thickness, this ultra-fast receptacle connector seamlessly mates with corresponding tab connectors for effective power and signal transmission.

Applications for this spade connector include factory automation, control panels, HVAC systems, electronics manufacturing, and wiring harness assemblies requiring consistent and secure electrical connections.

Fully insulated design prevents electrical shock and short circuits. Brass contacts plated with tin for enhanced durability and conductivity. Red translucent polyamide 66 housing with funnel design enables quick inspection and wire insertion.

Compatible with 6.35 x 0.81 mm tab size, suitable for a variety of electrical wiring uses. Supports wire sizes from 0.3 mm² (22 AWG) to 0.8 mm² (18 AWG), including solid, fused, and stranded wires. Meets industrial quality standards ensuring long-term operational stability.
