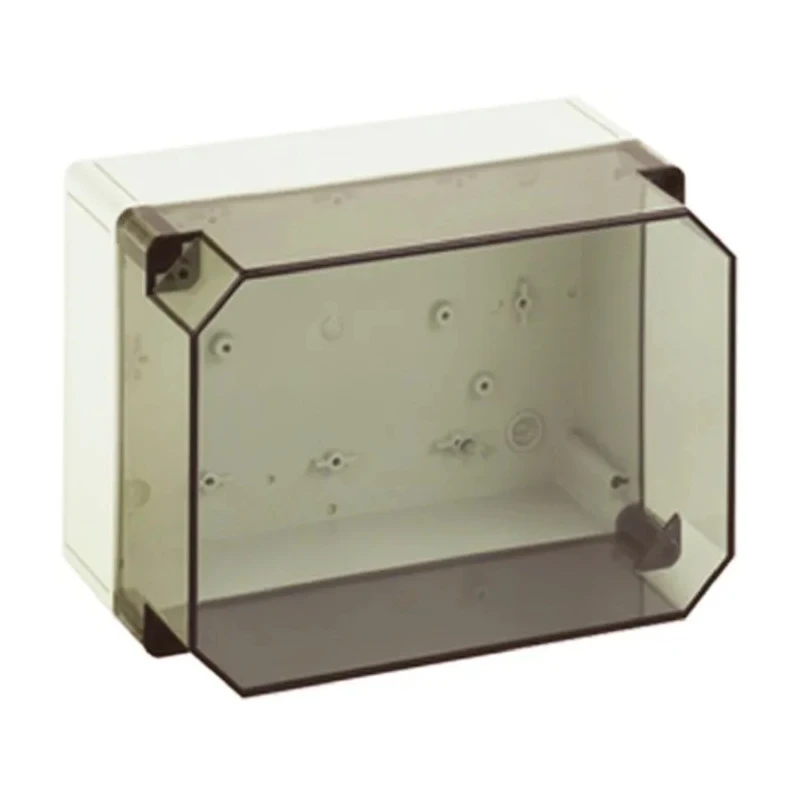

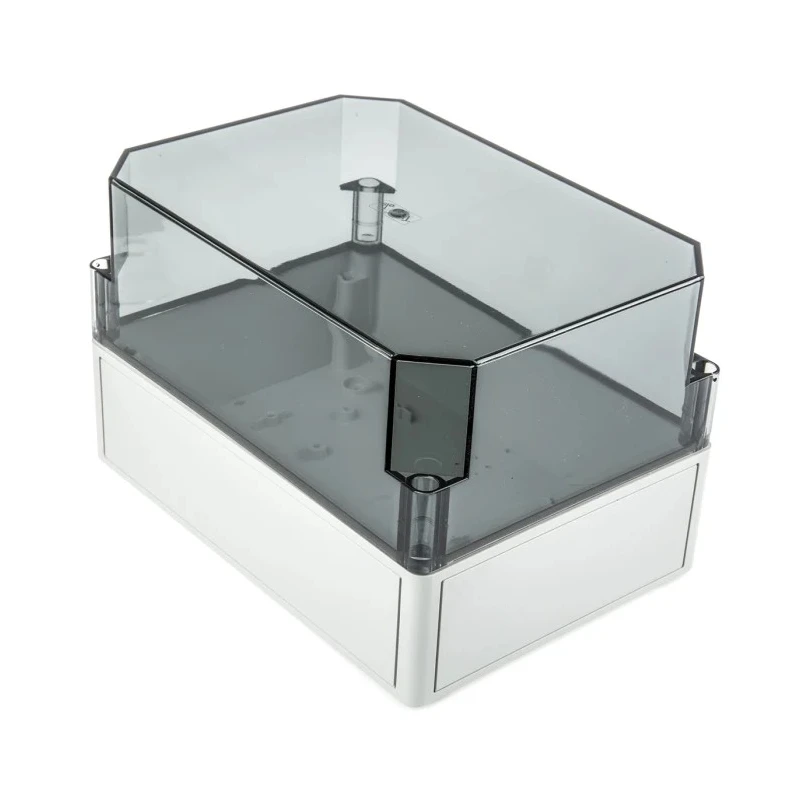

Spelsberg TK PS Series Grey Transparent Lid Polystyrene Enclosure IP66 IK07 165 mm x 254 mm x 180 mm IP66

Free Delivery in India | Lowest Global Shipping Charges

Spelsberg TK PS Series Grey Transparent Lid Polystyrene Enclosure IP66 IK07 165 mm x 254 mm x 180 mm IP66

Name: Spelsberg TK PS Series Grey Transparent Lid Polystyrene Enclosure IP66 IK07 165 mm x 254 mm x 180 mm IP66
Brand: Spelsberg
SKU: 181080
Price: 118.25 USD
Availability: InStock



Category General Purpose Electrical Enclosure Brand Spelsberg Condition New

Specifications

Country of Origin	Germany
Brand	Spelsberg
Colour	Grey
Body Material	Polystyrene
Model	IP66
IP Rating	IP66
Series	TK PS
External Width	180mm
External Height	165mm
Shielding	Unshielded
Standards/Approvals	RoHS
Flammability Rating	VDE 0471, UL94, 650 °C / HB
External Length	254mm
Lid Colour	Transparent
IK Rating	IK07

Key Features

The enclosure provides IP66 ingress protection and IK07 impact resistance.
It includes a transparent lid made from durable polycarbonate and a grey polystyrene body.
Designed for indoor use with polyurethane sealing and polyamide fiberglass reinforced screws.
Flammability rating complies with VDE 0471, UL94 standards at 650 °C / HB.
The enclosure has no pre-embossed knockouts, ensuring flexible installation.
Rated insulation voltage is 690 V AC and 1000 V DC for electrical safety.
The design includes integrated polyurethane cover gasket for moisture protection.
Manufactured in Germany, this enclosure is halogen-free, silicone-free, and free of heavy metals and PVC.

Product Description

Spelsberg IP66 TK PS Series Grey Transparent Lid Polystyrene Enclosure is constructed with a grey (RAL 7035) polystyrene base and transparent polycarbonate lid, measuring externally 165 mm in height, 254 mm in length, and 180 mm in width. It features an IP66 ingress protection rating according to EN 60529 / DIN VDE 0470-1, ensuring strong resistance against dust and powerful water jets, and IK07 impact resistance compliant with DIN EN 5012 / VDE 0470 Part 100 for mechanical robustness.

This enclosure is designed specifically for indoor use and is not weatherproof. It incorporates an integrated polyurethane cover gasket and polyamide 6 fibre glass reinforced cover screws for secure sealing and durability. The enclosure is halogen-free and silicone-free, containing no heavy metals or PVC, providing a safer environment for housing sensitive electrical installations. Its rated insulation voltage is 690 V AC and 1000 V DC, supporting various electrical safety standards including RoHS compliance, VDE 0471, and UL94 flammability ratings.

The enclosure has no pre-embossed metric knockouts, allowing users to customize cable entry points as needed. It is suitable for mounting on walls using through holes beneath lid fixing screws or surface mounting with provided sealing plugs. This makes it ideal for housing a wide range of electrical, electronic, and pneumatic equipment in industrial, laboratory, HVAC, commercial, and manufacturing environments.

The enclosure offers high ingress protection (IP66) against dust and water jets. Polycarbonate transparent lid allows visibility of installed components without opening. Polystyrene body provides durability and resistance to most acids and alkalis.

The unit is impact resistant with IK07 rating, ensuring mechanical protection. Includes polyurethane gasket for effective sealing against contaminants. No built-in cable entries, providing flexible user customization options.

Flammability rating is UL94 HB at 650 °C, ensuring fire safety compliance. Manufactured in Germany, assuring quality and standards adherence. Explore more electrical enclosures in the EnvMart General Purpose Electrical Enclosure category for industrial and commercial applications requiring protected housing solutions.
