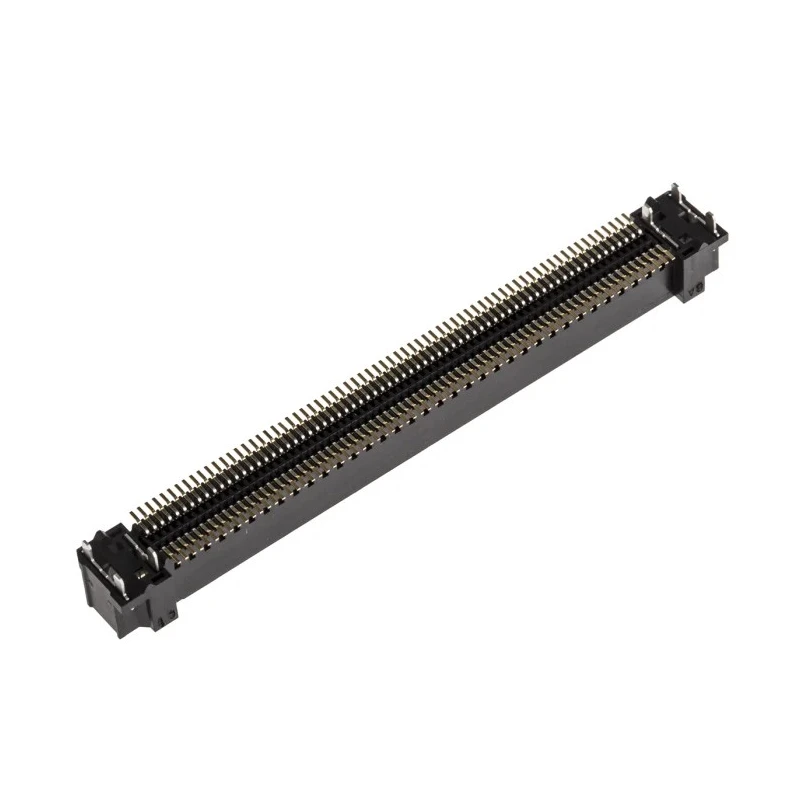

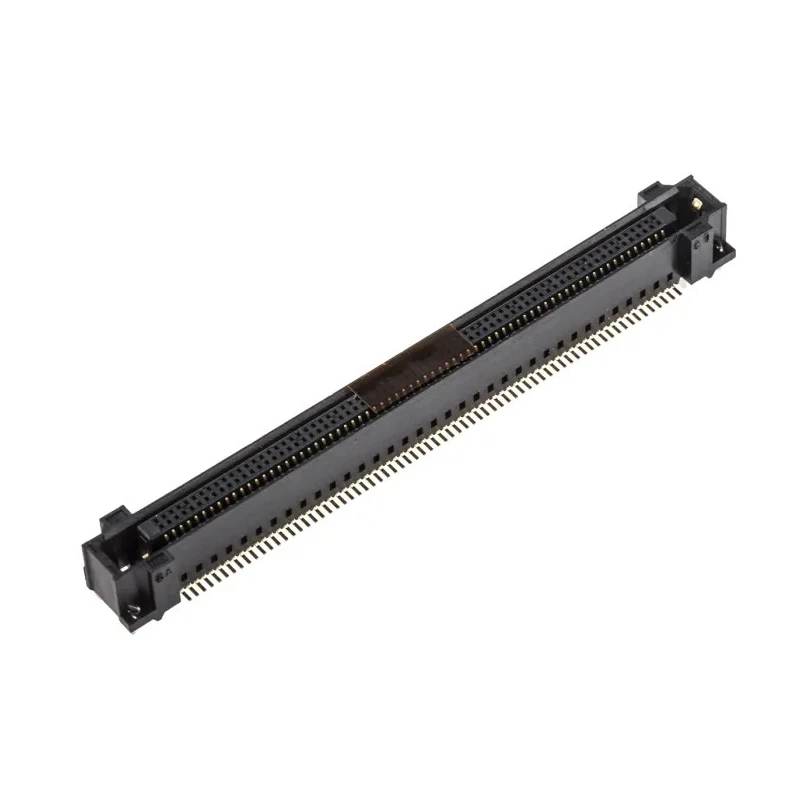

Hirose FunctionMAX FX18 Series Straight Surface PCB Socket, 140-Contact, 2 Row, 0.8 mm Pitch Solder

Hirose FX18-140S-0.8SV10 is a premium FunctionMAX FX18 Series straight surface PCB socket designed for high-speed, high-performance board-to-board communication in industrial and electronic applications. This PCB socket features 140 contacts arranged across 2 rows with a precise 0.8 mm pitch, terminated by solder mounting for secure electrical connections.

Engineered for high-speed transmission, it supports data rates up to 10 Gbit/s and complies with PCI-Express Version 2.0 standards. The socket's design incorporates multifunctional contacts including dedicated ground contacts positioned alongside differential pairs, providing enhanced grounding and significantly reducing electrical cross talk. Power supply contacts remain separate from signal pins, allowing up to 3 A per pin and a cumulative 12 A current capacity, optimizing pin usage and space efficiency.

The connector housing is constructed from polyamide resin, offering durability and stability in demanding environments. Its straight orientation and surface mount type facilitate flexible board layouts. This socket is built to withstand operating temperatures ranging from -55°C to 85°C, making it suitable for a broad range of industrial, medical, and telecommunications applications.

Mechanical robustness is ensured with six through-hole pins that improve PCB retention and resistance against wrenching forces. Additionally, large mating guides simplify connector engagement, improving assembly reliability.

Typical use cases for the Hirose FunctionMAX FX18 Series PCB socket include industrial controllers, medical equipment, servers, smart metering, base station transceivers, and various measurement devices. Its high-speed and multifunctional design caters to the growing demands in these precise and critical fields.

High-speed transmission up to 10 Gbit/s for data integrity. Multifunctional contacts ensure signal integrity and power supply segregation. Robust mechanical design with six through-hole retention pins. Operating temperature range from -55°C to 85°C for versatility.

Gold-plated bronze contacts for excellent conductivity and corrosion resistance. Polyamide resin housing provides durability in harsh conditions. Suitable for surface mounting with a straight orientation. Supports coplanar, vertical, and stacking mating styles.

Manufactured in Malaysia ensuring quality compliance. Large mating guides for reliable connector engagement. Explore the complete range of Hirose FunctionMAX connectors at EnvMart for advanced industrial and electronic component solutions.
