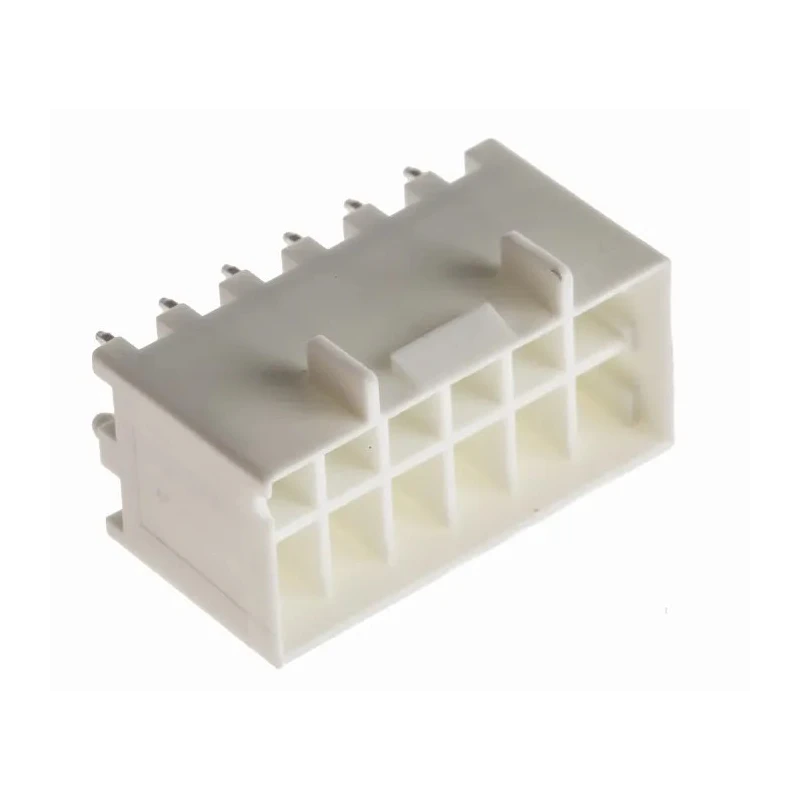

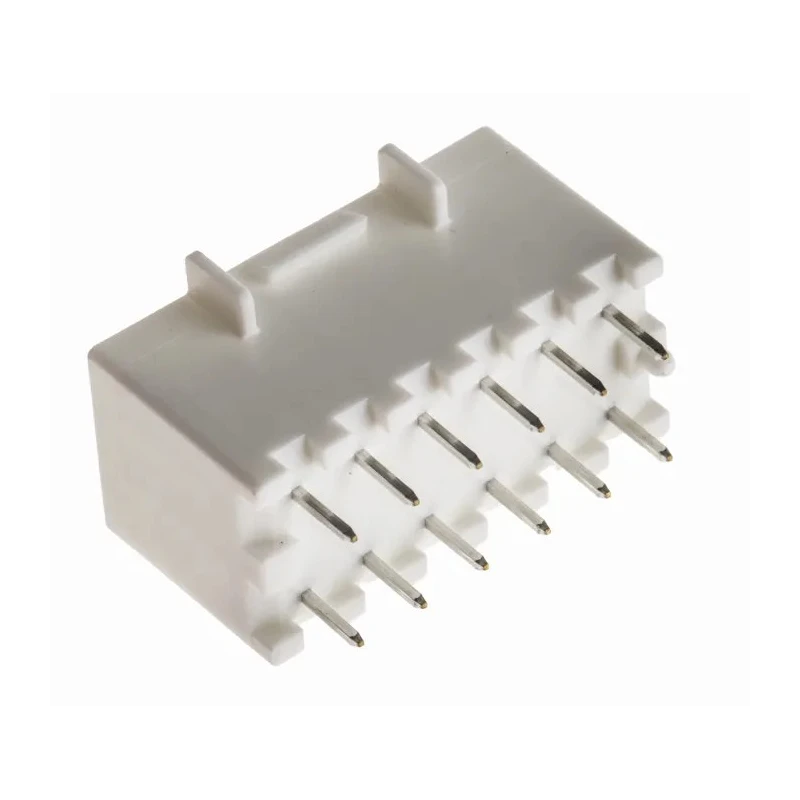

Hirose DF33C Series Straight Through Hole PCB Header, 12 Contacts, 3.3 mm Pitch, 2 Row, Shrouded DF33C
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 500V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 5A |
| Model | DF33C |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF33C |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -35°C |
| Number of Rows | 2 |
| Pitch | 3.3mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Compact design supporting a high current of 5 amperes.
- Robust positive locking mechanism with tactile click to prevent accidental unmating.
- Shrouded housing made of polyamide with glass filled resin to reduce thermal shrinkage.
- Supports resin sealing up to 6.5 mm for dust and moisture protection.
- Brass contacts plated with tin ensure durable electrical connection.
- Operating temperature range from -35°C to 85°C.
- Designed with 3.3 mm pitch and 2 rows for precise PCB placement.
- Wire-to-board connector system with through-hole mount type.
Product Description
Hirose DF33C Series Straight Through Hole PCB Header (model DF33C) offers a compact and robust wire-to-board connector solution with 12 contacts arranged in 2 rows and a 3.3 mm pitch. It is designed to handle currents up to 5 amperes, ensuring reliable power delivery in demanding applications.
The connector features a shrouded polyamide housing filled with glass resin to minimize thermal shrinkage and prevent solder cracking. A positive locking mechanism provides a clear tactile click to confirm a secure mate, effectively resisting accidental disconnections caused by drops or shocks. The housing also supports resin sealing up to 6.5 mm, offering protection against dust and moisture ingress, which enhances durability in harsh environments.
The brass male contacts plated with tin are individually boxed within the housing to prevent short circuits. This DF33C series connector series is compliant with electrical safety standards including a 1.5 mm creepage distance and glow wire test requirements. Its through-hole mount type and guide posts facilitate accurate PCB placement and orientation.
This PCB Header is extensively used in industrial, laboratory, and manufacturing settings, including applications such as LED lighting systems, office equipment, medical devices, robotics, smart meters, and home appliances. Its compact size combined with high-power capability makes it a versatile choice for internal power supply connections.
Compact design supporting a high current of 5 amperes. Robust positive locking mechanism with tactile click to prevent accidental unmating. Shrouded housing made of polyamide with glass filled resin to reduce thermal shrinkage.
Supports resin sealing up to 6.5 mm for dust and moisture protection. Brass contacts plated with tin ensure durable electrical connection. Operating temperature range from -35°C to 85°C. Designed with 3.3 mm pitch and 2 rows for precise PCB placement.
Wire-to-board connector system with through-hole mount type. Suitable for applications in LED lighting, medical devices, industrial controllers, and robotics. Explore more high-quality PCB connectors and related electronic components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 5 amperes, ensuring reliable power delivery in various applications.
The DF33C series features a 3.3 mm pitch and has 12 contacts arranged in 2 rows.
The housing is made of polyamide with glass-filled resin, while the contacts are brass plated with tin.
It operates within a temperature range of -35°C to 85°C, suitable for various environments.
It features a robust positive locking mechanism that provides a tactile click to confirm secure mating, preventing accidental unmating.
Yes, it supports resin sealing up to 6.5 mm, providing dust and moisture protection.
This model utilizes a through-hole mount type for accurate PCB placement and orientation.
The voltage rating for this PCB header is 500V, making it suitable for various electrical applications.
It is commonly used in applications such as LED lighting systems, medical devices, industrial controllers, and robotics.
The termination type for this model is solder, which is standard for secure electrical connections.
This model has a straight orientation, facilitating straightforward installation on PCBs.
The DF33C series PCB header is manufactured in Malaysia.
