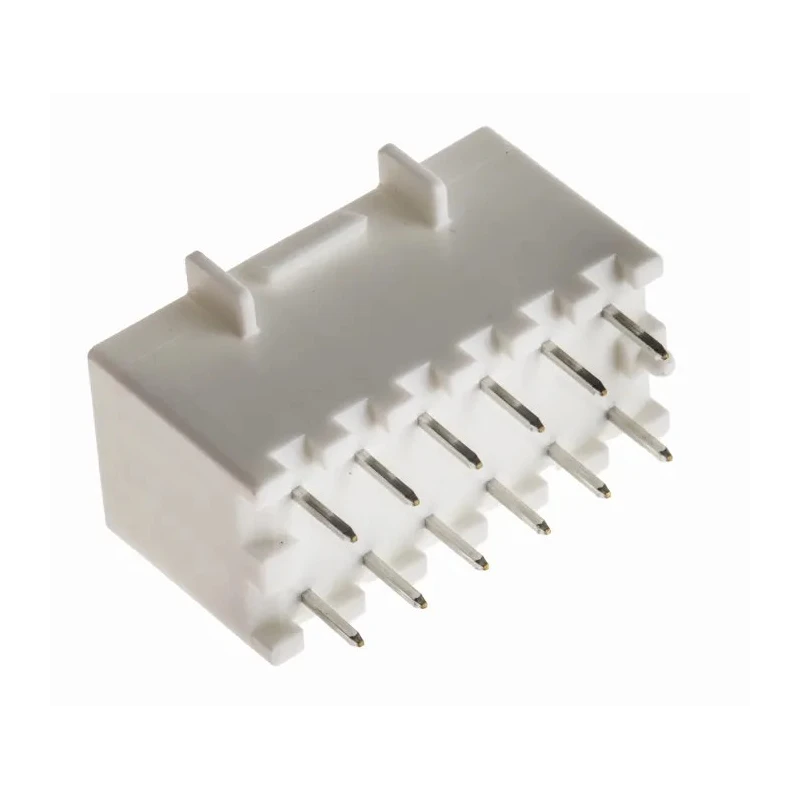

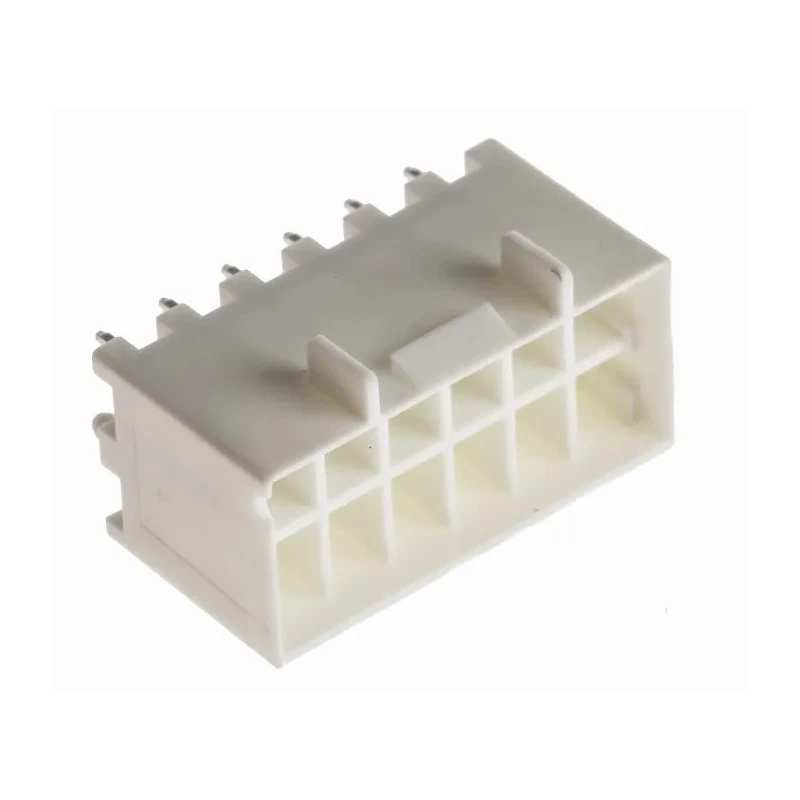

Hirose DF33C Series Straight Through Hole PCB Header, 12 Contacts, 3.3 mm Pitch, 2 Row, Shrouded
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 500V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 5A |
| Model | DF33C |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF33C |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -35°C |
| Number of Rows | 2 |
| Pitch | 3.3mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- High-power capability design with 5A current rating per contact.
- Positive locking mechanism ensures secure mating and tactile feedback.
- Individually boxed contacts prevent short circuits within the housing.
- Guide posts provide accurate PCB placement and alignment.
- Glass filled polyamide housing minimizes thermal shrinkage and solder cracking.
- Supports resin sealing up to 6.5 mm for moisture and dust protection.
- Wire-to-board system, straight through-hole mount, male contact gender.
- Operating temperature range from -35°C to 85°C for industrial reliability.
Product Description
Hirose DF33C-12DP-3.3DSA(24) is a PCB header from the DF33C Series, offering a compact, high-power connection solution for a range of industrial and electronic applications. This straight, through-hole header features a 3.3 mm pitch with 12 contacts arranged in 2 rows, supporting currents up to 5A per contact and voltages up to 500V.
The DF33C Series utilizes a shrouded housing with robust positive locking. When mated, a tactile click confirms full engagement, reducing the risk of accidental disconnect during vibration, drops, or external shocks. Contacts are separated by walls within the glass filled polyamide housing, preventing internal short circuits and optimising durability.
Guide posts incorporated into the design allow accurate placement and orientation on the PCB, supporting repeatable production quality and reliable installation. The header accepts soldering resin sealing up to 6.5 mm, providing enhanced resistance to particulate ingress, moisture, and dust, making it suitable for demanding environments.
High-power capability with 5A current rating per contact. Secure locking mechanism and tactile feedback reduce unmating risk. Boxed contacts isolate and protect, preventing shorts. Resin sealing compatibility for environmental protection.
Polyamide material with added glass fill for reduced shrinkage and crack resistance. Wire-to-board connector system with straight, through-hole solder mount. Male contacts, tin plating over brass for conductivity and robustness.
Applications span internal power supplies, LED lighting, office equipment, medical devices, industrial controllers, robotics, smart meters, and home appliances requiring compact yet powerful connectors. The DF33C Series meets industry requirements, supports electrical creepage distances and glow wire compliance, and fits into modern compact electronics.
Choose Hirose EnerBee DF33C-12DP-3.3DSA(24) for reliable, high-current compact interconnects in PCB designs. Browse more Hirose PCB Headers and power connectors in the EnvMart Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
Each contact in the Hirose DF33C Series PCB header has a current rating of 5A.
The maximum voltage rating for this model is 500V.
The contacts in this PCB header are arranged with a pitch of 3.3 mm.
This model utilizes a through-hole mounting type for installation.
The housing is made of glass-filled polyamide, while the contacts are made of brass with tin plating.
The operating temperature range for the Hirose DF33C Series is from -35°C to 85°C.
This model features a total of 12 contacts arranged in 2 rows.
Yes, this model is designed as a wire-to-board connector system.
Individually boxed contacts within the housing help prevent short circuits.
Yes, it supports resin sealing up to 6.5 mm for moisture and dust protection.
The contacts in this PCB header are oriented straight.
This model is suitable for applications such as internal power supplies, LED lighting, medical devices, and industrial controllers.
