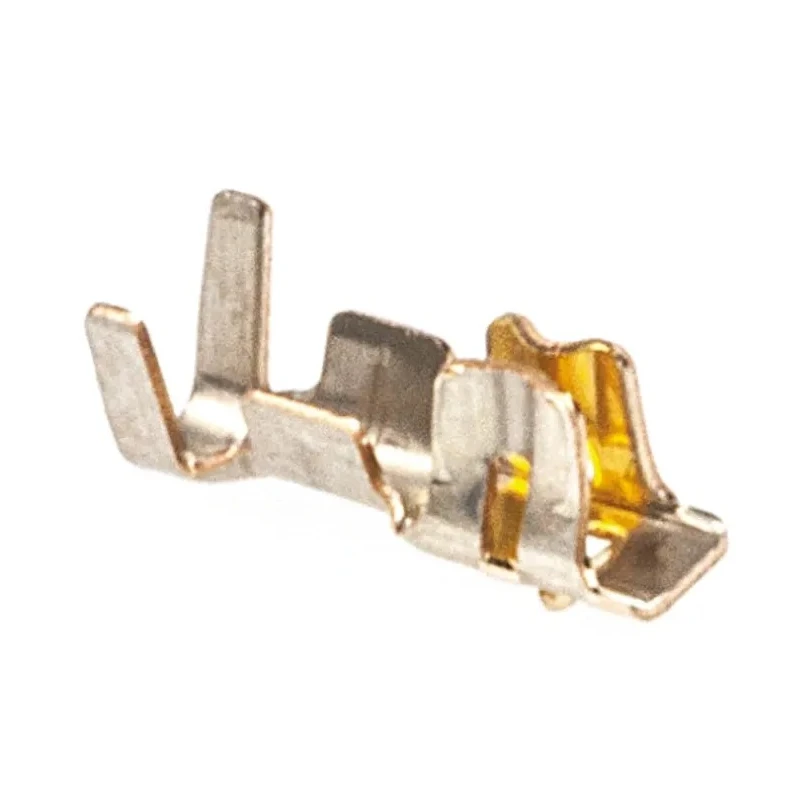

Hirose DF3 Series Female Crimp Terminal 3A Current, Gold Plated, 24 to 28 AWG Wire Size DF3-2428SCC

Free Delivery in India | Lowest Global Shipping Charges

Hirose DF3 Series Female Crimp Terminal 3A Current, Gold Plated, 24 to 28 AWG Wire Size DF3-2428SCC

Name: Hirose DF3 Series Female Crimp Terminal 3A Current, Gold Plated, 24 to 28 AWG Wire Size DF3-2428SCC
Brand: Hirose
SKU: 138958
Price: 0.1 USD
Availability: InStock



Category Crimp Terminal Brand Hirose Condition New

Specifications

Country of Origin	Japan
Brand	Hirose
Current	3A
Model	DF3-2428SCC
Gender	Female
Contact Material	Copper Alloy
Series	DF3
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-35°C
For Use With	DF3 Connector Housing
Contact Plating	Gold
Maximum Wire Size mm²	0.2mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	24AWG
Maximum Contact Resistance	30mΩ

Key Features

Compatible with DF3 series connector housings for reliable termination.
Gold-plated contacts ensure high conductivity and corrosion resistance.
Supports wire sizes ranging from 28 AWG minimum to 24 AWG maximum.
Terminated using crimp technique for secure electrical connection.
Made of copper alloy contact material for durability and performance.
Handles maximum operating temperature of 85°C and minimum of -35°C.
Maximum contact resistance is 30 milliohms ensuring efficient signal transfer.
Manufactured in Japan ensuring high quality standards.

Product Description

Hirose DF3-2428SCC female crimp terminal is a precision-engineered component for electronic assemblies requiring secure and reliable connections. This crimp terminal is specifically designed to be used with DF3 series connector housings, making it ideal for PCB and wire harness applications in industrial, commercial, and electronic manufacturing contexts.

The contact is gold plated, offering excellent conductivity and superior corrosion resistance for consistent electrical performance over a wide temperature range from -35°C up to 85°C. It supports wire sizes ranging from 28 AWG minimum to 24 AWG maximum (0.2 mm²), allowing flexible use with various wire gauges compliant to DF3 series connectors.

Constructed from durable copper alloy, the crimp socket ensures a strong mechanical and electrical bond when used with the appropriate crimping tools. The maximum contact resistance of 30 milliohms guarantees efficient signal and current transmission, suitable for currents up to 3 amps.

This product has been manufactured in Japan, adhering to strict quality controls to provide dependable performance. The crimp termination type facilitates quick and secure connections, widely used in electronic components, power connectors, and automation systems.

Compatible with DF3 series connector housing. Gold-plated copper alloy contacts for corrosion resistance. Wire size capability: 28 AWG to 24 AWG. Rated for 3A current carrying capacity. Operates reliably from -35°C to 85°C.

Maximum contact resistance of 30 mΩ. Crimp termination ensures stable connections. Origin: Japan.

This Crimp Terminal is ideal for electronics manufacturing, industrial automation, and electrical assemblies needing reliable wire-to-board connections. Explore more Hirose connectors and terminals on EnvMart for comprehensive electronic component solutions.
