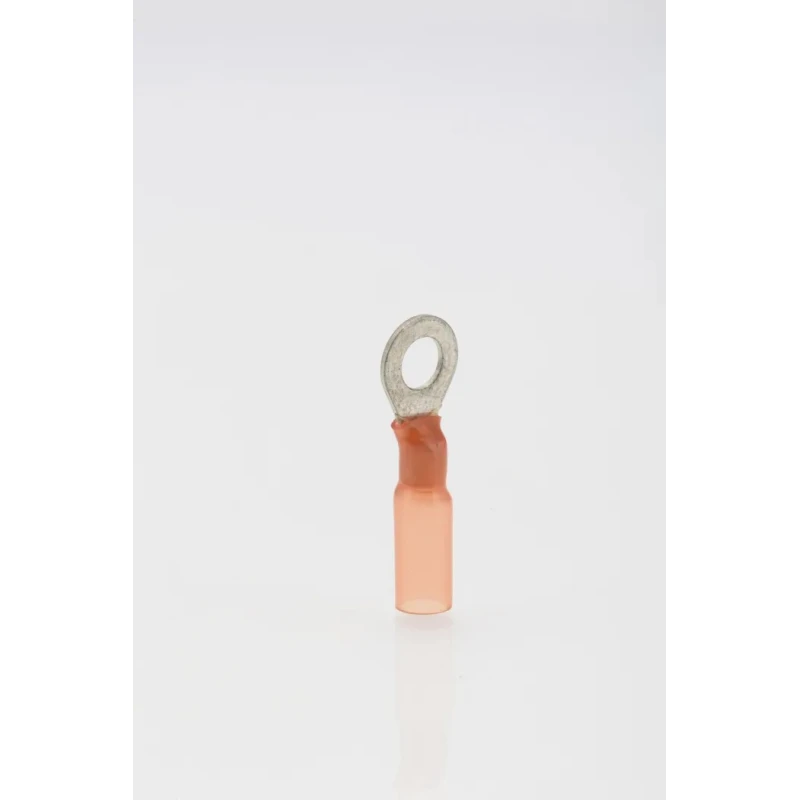

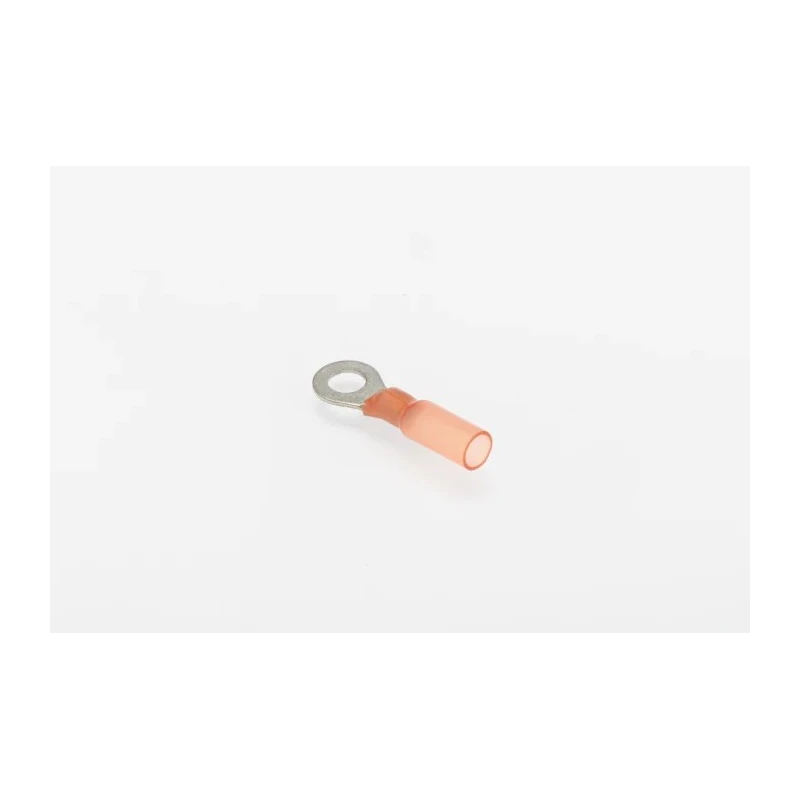

TE Connectivity DuraSeal Insulated Crimp Ring Terminal M5 Stud Size 22 AWG to 18 AWG Wire Size Red DR-2-50

TE Connectivity DR-2-50 DuraSeal Insulated Crimp Ring Terminal offers high-quality insulated crimp terminations with excellent environmental sealing. The nylon insulation and hot-melt adhesive lining protect electrical connections from mechanical abuse, vibration, abrasion, and contaminants such as water and salt.

Designed for 22 AWG to 18 AWG wire sizes, this ring terminal is color-coded red for easy identification and features copper alloy contacts plated with tin for durable performance. Its M5 stud size compatibility and precise dimensions (5.3 mm inner ring diameter and 10 mm outer ring diameter) ensure a secure and reliable connection.

Its heat-shrinkable insulation provides superior protection against environmental factors, making it ideal for automotive and marine builds where condensation and mechanical stresses are common. The crimp barrel is covered with heat-shrink nylon tubing to ensure a reliable wire connection that resists pull-out and abrasion.

The terminal operates effectively within a broad temperature range from -55°C to 125°C, making it suitable for demanding industrial and electrical applications requiring dependable insulation and mechanical strength.

Constructed with copper alloy contact material for conductivity and durability. Heat-shrinkable nylon insulation with hot-melt adhesive lining for environmental sealing. M5 stud size with exact internal and external ring diameters.

Suitable wire size range of 22 AWG to 18 AWG (0.5 mm² to 1.0 mm²). Red insulation indicates wire size compatibility for easy identification. Operates over a temperature range of -55°C to 125°C for versatile applications.

Resistant to mechanical abuse, vibration, wire pull-out, abrasion, water, and salt contamination.

This Ring Terminal is an optimal choice for electronic, automotive, marine, and industrial applications requiring secure and environmentally protected wire connections. Explore more products in the Wire Terminals & Splices category at EnvMart to find complementary components and accessories.
