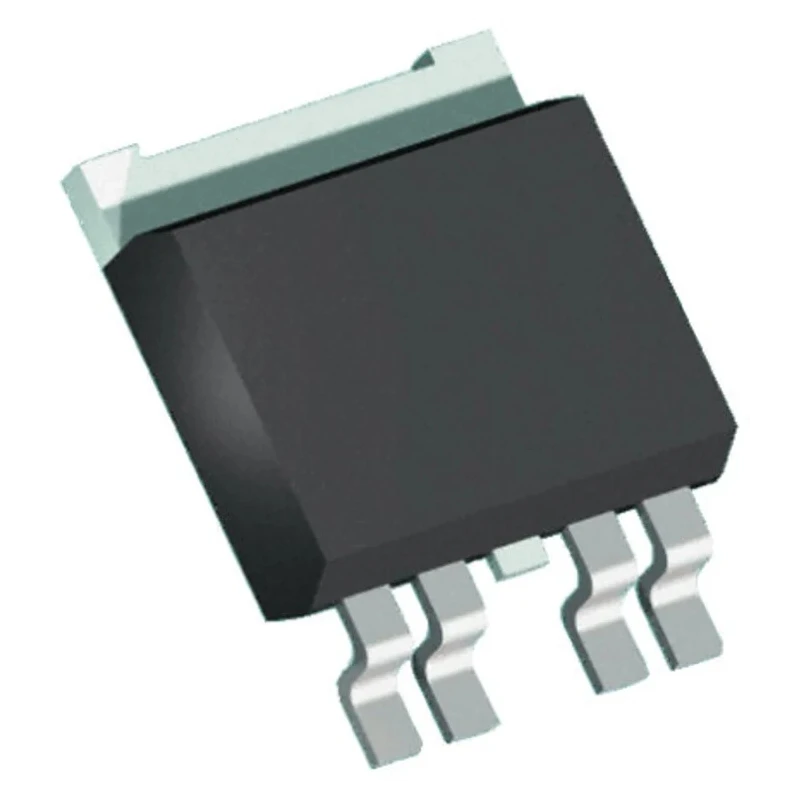

Infineon Voltage Regulator 40V Maximum Input, 150μA Quiescent Current, Surface Mount TO-252 5-Pin TLE4252DATMA1

Infineon TLE4252DATMA1 is a voltage regulator designed for stable positive output voltage regulation in electronic circuits. It supports a wide input voltage range from 3.5V to a maximum of 40V, making it suitable for applications requiring high supply voltage tolerance and low-voltage operation. The device features a low quiescent current of only 150μA, enabling efficient power usage in battery-powered and low-power designs.

Housed in a TO-252 surface-mount package with 5 pins, the regulator allows robust electrical connections and simplifies integration onto printed circuit boards with limited space. The package’s thermal properties allow operation at temperatures up to 150°C, making it appropriate for use in environments exposed to high ambient temperatures such as industrial control systems.

The 5-pin configuration separates input, output, and control/ground connections, which aids in clear circuit design and efficient thermal routing. Positive polarity regulation facilitates easy incorporation into common voltage rails in diverse electronic circuits.

This voltage regulator is ideal for compact surface-mount device (SMD) modules, industrial control electronics requiring 40V tolerance, and low standby current battery-powered systems. However, it is not specified for automotive applications and should not be used where automotive certification is required.

Supports input voltage range from 3.5V minimum to 40V maximum, allowing wide operating flexibility. Low quiescent current of 150μA reduces power consumption during standby modes. Compact TO-252 package suitable for surface-mount PCB assembly with 5 robust pins.

Maximum operating temperature rating of 150°C suited for hot ambient conditions in industrial environments. Positive polarity design simplifies integration with standard electronic rails. 5-pin layout designated for separate input, output, and ground connections supporting reliable circuit design.

Suited for industrial electronics, power assemblies, and compact SMD modules requiring efficient voltage regulation. Not certified for automotive standards; recommended for non-automotive industrial and commercial electronics.

The TLE4252DATMA1 is a reliable and efficient voltage regulator tailored for various industrial and commercial electronic control applications requiring durable and low-power voltage regulation solutions. Discover more similar Voltage Regulators and power management ICs in the EnvMart Electronics & Electricals category.
