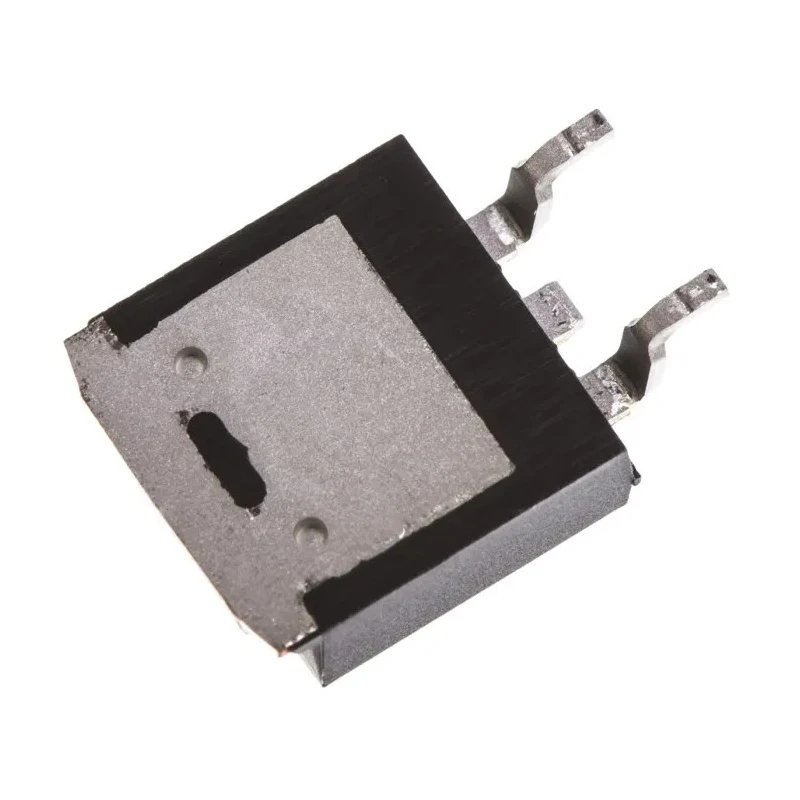

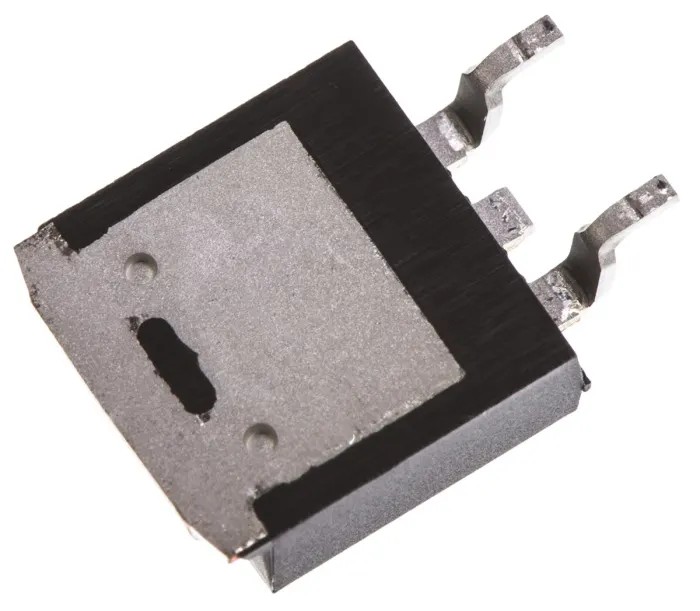

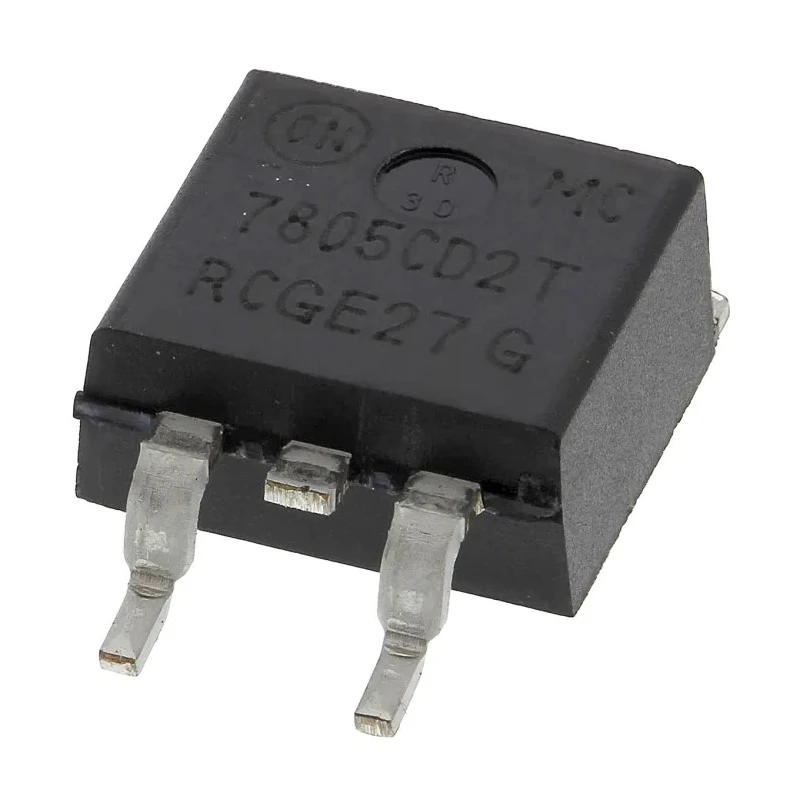

onsemi 5V Linear Voltage Regulator Surface Mount 35V Maximum Input MC7805CD2TG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi MC7805CD2TG, Voltage Regulator 35V 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 30.02mm |
| Length | 10.24mm |
| Model | MC7805CD2TG |
| Width | 9.35mm |
| Mount Type | Surface |
| Series | MC78xx |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 3.2mA |
| Minimum Input Voltage | 5V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Monolithic integrated circuit providing fixed 5V output voltage regulation.
- Surface mount device with 3 pins, optimized for compact PCB layouts.
- Maximum input voltage of 35V ensures robust operation under varying supply conditions.
- Integrated thermal overload protection and current limiting for enhanced device safety.
- Quiescent current of 3.2mA supporting efficient power management.
- Meets automotive standard AEC-Q100 for reliability in automotive environments.
- Package dimensions approximately 10.24 mm length, 9.35 mm width, and 30.02 mm height.
- Positive polarity design suitable for a wide range of positive voltage regulation applications.
Product Description
onsemi MC7805CD2TG is a 5V linear voltage regulator supplied in a 3-pin surface mount package offering fixed voltage regulation suitable for electronic circuits requiring stable 5V power supply.
This regulator from the MC7805 series incorporates internal features such as thermal overload protection and current limiting, ensuring reliable operation and protection against damage due to overheating or overcurrent conditions.
The device supports a maximum input voltage of 35V and minimal quiescent current of 3.2mA, making it an efficient solution for a variety of power management applications including consumer electronics, automotive systems, and industrial electronics.
Compliant with automotive standard AEC-Q100, this regulator is suited for use in automotive electrical systems requiring high reliability and stability. Its compact surface mount form factor (10.24 mm length, 9.35 mm width, 30.02 mm height) facilitates integration into compact printed circuit boards with limited space.
Monolithic integrated 5V linear voltage regulator. Surface mount 3-pin package for easy PCB assembly. Input voltage range from 5V minimum to 35V maximum. Internal thermal and current protection for device safety. Low quiescent current of 3.2mA reduces power loss.
Automotive grade device meeting AEC-Q100 standards. Robust operating temperature up to 125°C.
This voltage regulator is ideal for industrial, automotive, and consumer electronic power supply applications where consistent regulated output voltage and protection features are mandatory.
Explore more on Voltage Regulators and power management ICs suited for various electronics and industrial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 35V, allowing for robust operation under varying supply conditions.
It provides a fixed output voltage of 5V, suitable for various electronic circuits requiring stable power supply.
The quiescent current for this model is 3.2mA, which supports efficient power management.
The dimensions of this surface mount device are approximately 10.24 mm in length, 9.35 mm in width, and 30.02 mm in height.
The maximum operating temperature for the MC7805CD2TG is 125°C, making it suitable for various environments.
This model comes in a 3-pin surface mount package, optimized for compact PCB layouts.
Yes, it incorporates internal thermal overload protection and current limiting for enhanced device safety.
It meets the automotive standard AEC-Q100, ensuring reliability in automotive environments.
This voltage regulator features a positive polarity design, suitable for a wide range of positive voltage regulation applications.
This model belongs to the MC78xx series of voltage regulators.
It is suitable for various applications including consumer electronics, automotive systems, and industrial electronics requiring stable 5V power supply.
The minimum input voltage for this voltage regulator is 5V, which is necessary for proper operation.
