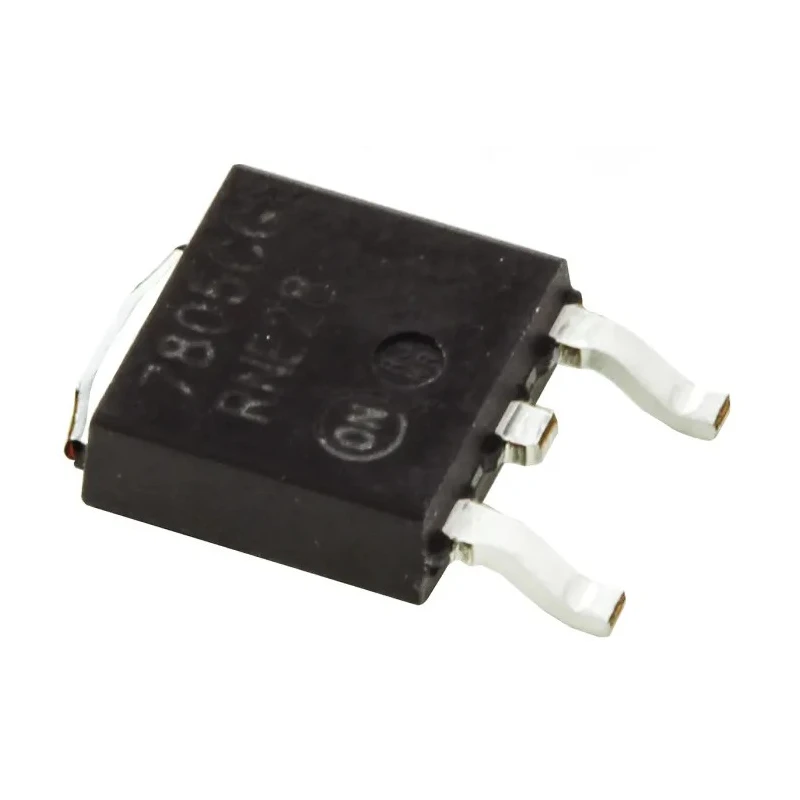

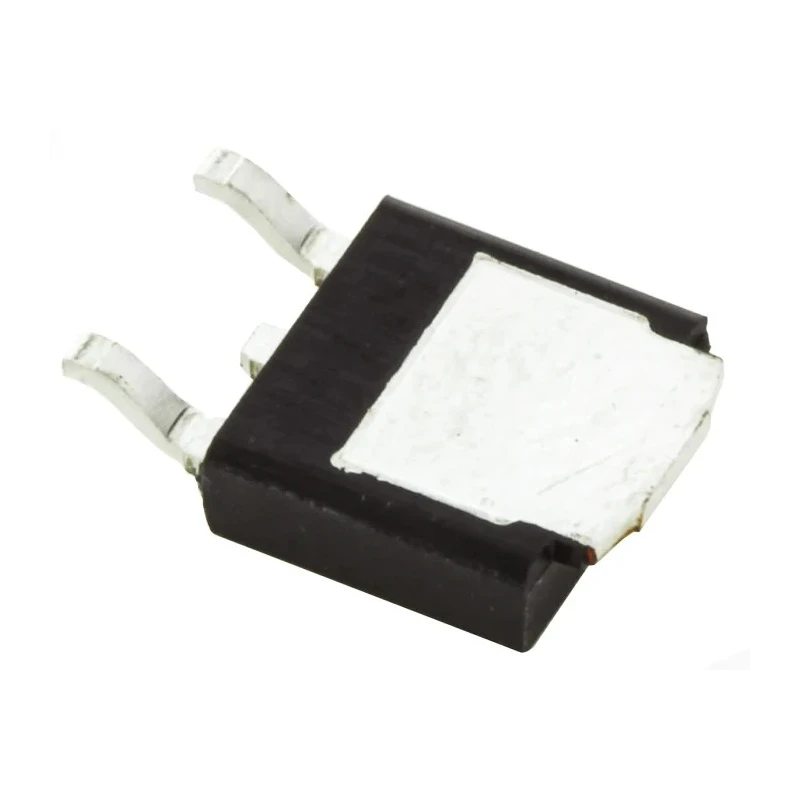

onsemi Fixed Voltage Regulator 5V 1A Linear Surface Mount 3-Pin MC7805CDTG

onsemi MC7805CDTG fixed voltage regulator is a monolithic integrated circuit designed as a fixed-voltage linear regulator providing stable 5V output with up to 1A current capacity. This surface mount device features 3 pins and supports input voltages ranging between 5V minimum and 35V maximum, making it suitable for a wide variety of electronic components and power management circuits.

The MC7805CDTG includes internal protections such as thermal overload shutdown, short circuit current limiting, and safe area compensation, ensuring reliable and durable operation under varying electrical conditions. It complies with the automotive standard AEC-Q100, confirming its robustness for automotive and industrial electronics.

Measuring 6.73mm in length, 6.22mm in width, and 2.38mm in height, this compact regulator integrates seamlessly into PCB layouts. The low quiescent current of 3.2mA optimizes power efficiency, making it ideal for use in battery-powered and low-power applications.

The regulator belongs to the MC78xx series, known for fixed voltage outputs with 1.5%, 2%, or 4% tolerance variations, offering design flexibility for various precision requirements.

Common applications include local voltage regulation on circuit cards, power supplies for microcontrollers, and other industrial and electronics equipment requiring consistent voltage output. The device is RoHS compliant and Pb-Free, aligning with environmental and safety standards.

Package quantities such as tubes of 75 units or packs of 20 make it convenient for volume installations or prototyping. Surface mount device with 3 pins for easy integration. Operates with input voltages from 5V to maximum 35V.

Incorporates internal thermal overload and short circuit protection. Positive polarity regulator with 3.2mA quiescent current. Compact dimensions: 6.73mm length, 6.22mm width, and 2.38mm height. Compliant with automotive AEC-Q100 standard for reliability.

Part of the MC78xx series with output voltage tolerance options. Suitable for power management in industrial and electronics applications. Lead-free (Pb-Free) environmentally compliant device. Explore the onsemi product range and high-quality Voltage Regulators in the EnvMart Electronics & Electrical category for your technical project needs.
