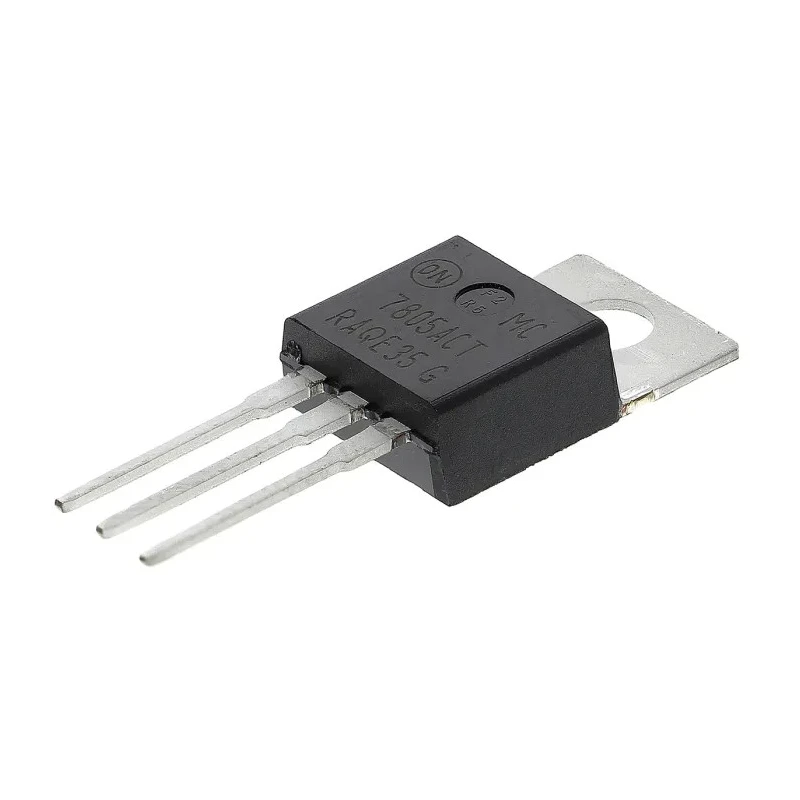

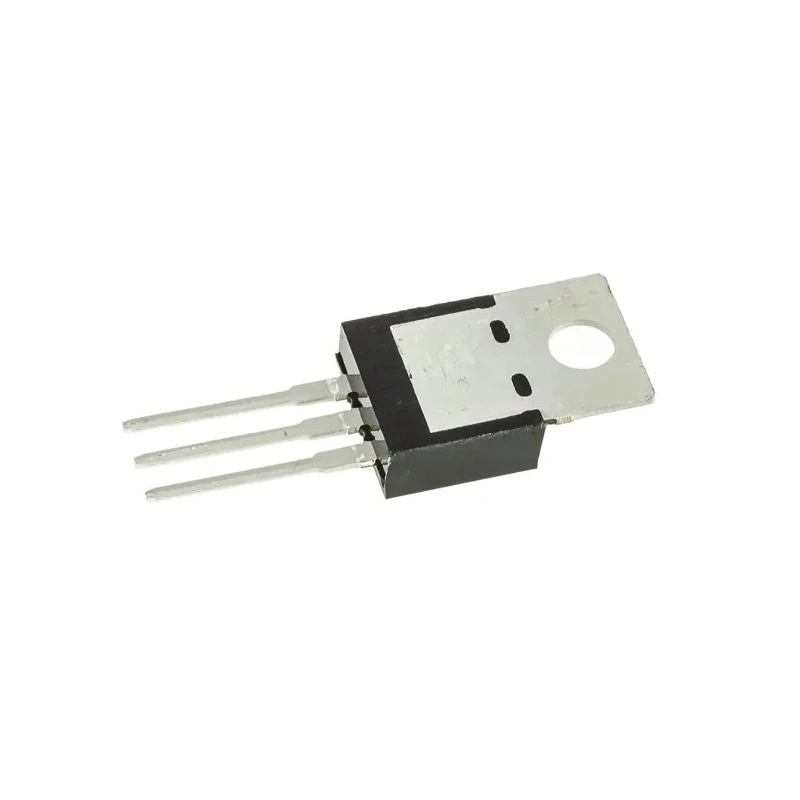

onsemi 5V Linear Voltage Regulator TO-220 3-Pin 35V Input MC7805ACTG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi, Voltage Regulator 35V TO-220 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 30.02mm |
| Length | 10.28mm |
| Model | MC7805ACTG |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Series | MC78xx |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 3.2mA |
| Minimum Input Voltage | 5V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Operates with input voltage range of 5V to 35V for versatile use.
- TO-220 package enables efficient heat dissipation and reliable mounting.
- Low quiescent current of 3.2mA for energy-efficient operation.
- Built-in internal thermal overload protection and current limiting.
- Provides stable 5V regulated output voltage.
- Positive polarity configuration for standard applications.
- Meets AEC-Q100 automotive standard for robust performance.
- Three-pin design suitable for through-hole mounting.
Product Description
onsemi MC7805ACTG is a 5V linear voltage regulator housed in a TO-220 3-pin package, engineered for efficient power management in electronic circuits. It accepts an input voltage range from 5 volts up to a maximum of 35 volts, delivering a stable 5 volts output suitable for various industrial, automotive, and consumer electronic applications.
This fixed-voltage regulator features an integrated internal thermal overload protection and current limiting, improving reliability and preventing damage under fault conditions. Its low quiescent current of 3.2mA ensures energy-efficient operation, beneficial in battery-powered and low-power systems.
The TO-220 through-hole mounting package facilitates straightforward installation and effective heat dissipation, making it suitable for PCB designs where thermal management is critical. Compliance with the AEC-Q100 automotive standard assures durability and performance in automotive environments.
Common use cases for the MC7805ACTG include regulating voltage in power supplies, embedded systems, automotive electronics, and industrial controls. The device supports applications requiring a regulated 5V supply with high input voltage tolerance and robust protection features.
Operates with input voltage range of 5V to 35V for wide compatibility. Compact TO-220 package with three-pin through-hole mounting. Low quiescent current (3.2mA) enhances energy efficiency. Integrated thermal overload protection and current limiting safeguards device.
Provides a fixed stable 5V output voltage. Meets automotive standard AEC-Q100 for enhanced reliability. Positive polarity suitable for standard applications requiring regulated voltage. Dimensions: Height 30.02mm, Length 10.28mm, Width 4.82mm.
Package supplied in a tube format facilitating convenient insertion into machinery and assembly lines, aiding production efficiency. Explore more Voltage Regulators and power management ICs at EnvMart to find the perfect match for your electrical and electronic system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a stable output voltage of 5V, suitable for numerous electronic circuits and applications.
The dimensions of the TO-220 package are 30.02mm in height, 10.28mm in length, and 4.82mm in width.
The quiescent current is 3.2mA, which contributes to its energy-efficient operation, especially in low-power systems.
Yes, it features integrated thermal overload protection and current limiting to enhance reliability and prevent damage under fault conditions.
The maximum operating temperature is 125°C, making it suitable for a range of environments, including automotive applications.
It supports through-hole mounting, which facilitates straightforward installation on PCBs.
This voltage regulator meets the AEC-Q100 automotive standard, ensuring robust performance in automotive environments.
It has a positive polarity configuration, suitable for standard applications requiring regulated voltage.
The country of origin for this model is India.
It is suitable for regulating voltage in power supplies, embedded systems, automotive electronics, and industrial controls.
