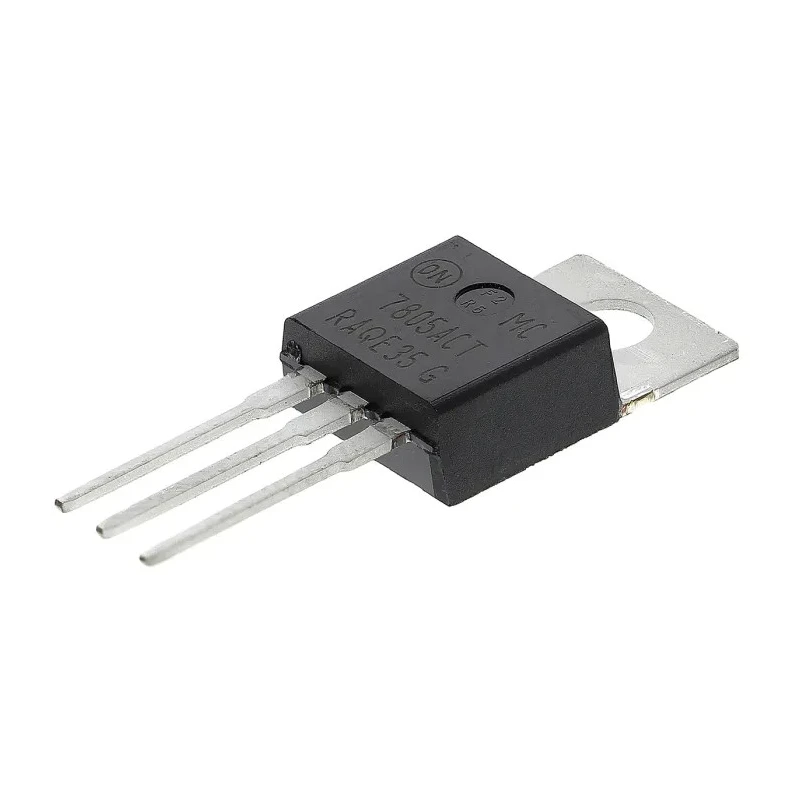

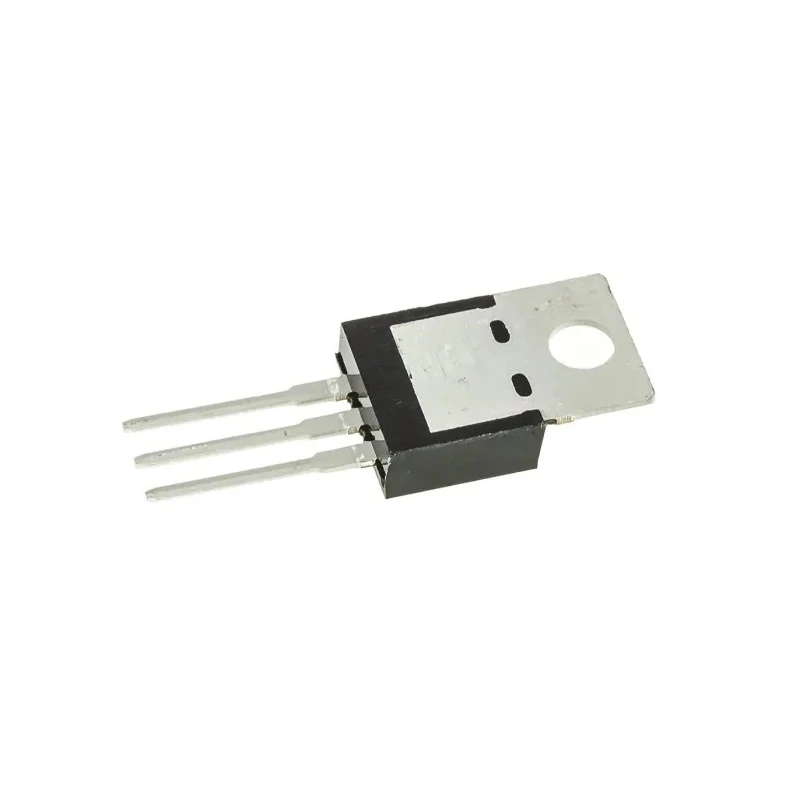

onsemi 5V Fixed Linear Voltage Regulator TO-220 3-Pin, 35V Max Input MC7805ACTG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi MC7805ACTG, Voltage Regulator 35V TO-220 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 30.02mm |
| Length | 10.28mm |
| Model | MC7805ACTG |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Series | MC78xx |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 3.2mA |
| Minimum Input Voltage | 5V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Provides a regulated 5V output from 5V to 35V input range.
- Features thermal overload protection and current limiting for safety.
- Three-pin through-hole mount suitable for easy PCB integration.
- Designed for positive polarity applications with low quiescent current of 3.2mA.
- Meets Automotive AEC-Q100 standard for reliable operation up to 125°C.
- Monolithic integrated circuit provides stable and consistent voltage output.
- Ideal for local on-card voltage regulation in electronics and power systems.
Product Description
The onsemi MC7805ACTG is a 5V fixed linear voltage regulator supplied in a TO-220 3-pin through-hole package. It operates with a maximum input voltage of 35V and a minimum input of 5V, delivering a steady 5V output, suitable for various local and on-card voltage regulation requirements in industrial electronic applications.
This voltage regulator is monolithic and includes internal thermal overload protection and current limiting, enhancing device reliability and safety during usage. It is designed for positive polarity and consumes a low quiescent current of 3.2mA.
The device dimensions measure 30.02mm in height, 10.28mm in length, and 4.82mm in width, making it compact for embedded and PCB-mounted applications. It also complies with the Automotive AEC-Q100 standard, supporting operation in environments with operating temperatures up to 125°C.
Its features include stable voltage output with safe area compensation, making it a dependable component in power management circuits. The regulator is particularly suitable for industrial, automotive, laboratory, and commercial electronic systems requiring a reliable 5V supply source.
Regulated 5V output from 5V to 35V input voltage range for flexible usage. Internal thermal shutdown and current limiting protect against overload conditions. Compact TO-220 3-pin package facilitates through-hole mounting on PCBs.
Low quiescent current reduces power loss and heat generation. Certified to AEC-Q100 automotive grade ensuring robust performance. Operates reliably at ambient temperatures up to 125°C for harsh conditions. Perfect for local and on-card voltage regulation in electronic assemblies.
Choose the MC7805ACTG Voltage Regulator from onsemi for dependable, precise voltage regulation suited for industrial, automotive, electronic, and power supply applications. Explore the comprehensive range of power management ICs available in the Electronics & Electricals category at EnvMart to meet your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a maximum input voltage of 35V and a minimum input voltage of 5V.
The MC7805ACTG provides a regulated output voltage of 5V.
The dimensions of this model are 30.02mm in height, 10.28mm in length, and 4.82mm in width.
The quiescent current for the MC7805ACTG is 3.2mA, which helps reduce power loss and heat generation.
This voltage regulator is supplied in a TO-220 3-pin through-hole package, suitable for easy PCB integration.
It includes internal thermal overload protection and current limiting to enhance reliability and safety during operation.
The MC7805ACTG can operate reliably at ambient temperatures up to 125°C.
Yes, it meets the Automotive AEC-Q100 standard, ensuring reliable operation in automotive applications.
This voltage regulator is designed for positive polarity applications.
It is suitable for local on-card voltage regulation in industrial, automotive, laboratory, and commercial electronic systems.
This model features a 3-pin configuration, allowing for straightforward integration into circuits.
The MC7805ACTG is part of the MC78xx series of voltage regulators.
