ICP DAS USA Data Acquisition Module with RJ45 Ethernet Connectivity

Free Delivery in India | Lowest Global Shipping Charges

ICP DAS USA Data Acquisition Module with RJ45 Ethernet Connectivity

Name: ICP DAS USA Data Acquisition Module with RJ45 Ethernet Connectivity
Brand: ICP DAS USA
SKU: 138498
Price: 316.85 USD
Availability: InStock



Category Data Acquisition System Brand ICP DAS USA Condition New

Specifications

Country of Origin	India
Brand	ICP DAS USA
Height	95mm
Length	27mm
Connectivity	RJ45, Ethernet
Model	RJ45
Width	52mm
Maximum Operating Temperature	75°C
Minimum Operating Temperature	-25°C
Standards/Approvals	RoHS, IEEE 802.3af, UL94V0

Key Features

The module supports Modbus TCP masters and slaves communication protocols.
Equipped with 1 Ethernet port (10/100 Base-TX) and 1 RS-485/RS-422 port for versatile interfacing.
Features a 32-bit microcontroller (MCU) for optimized network traffic management.
Redundant power inputs include PoE compliant with IEEE 802.3af and a DC jack supporting 12 to 48 VDC.
Includes a built-in web server for easy configuration via web interface.
Supports DHCP, Static IP, TCP, UDP, HTTP, BOOTP, and TFTP protocols.
Designed from fire retardant materials ensuring safety compliance.
Compact dimensions (27mm length x 52mm width x 95mm height) for space-saving installations.

Product Description

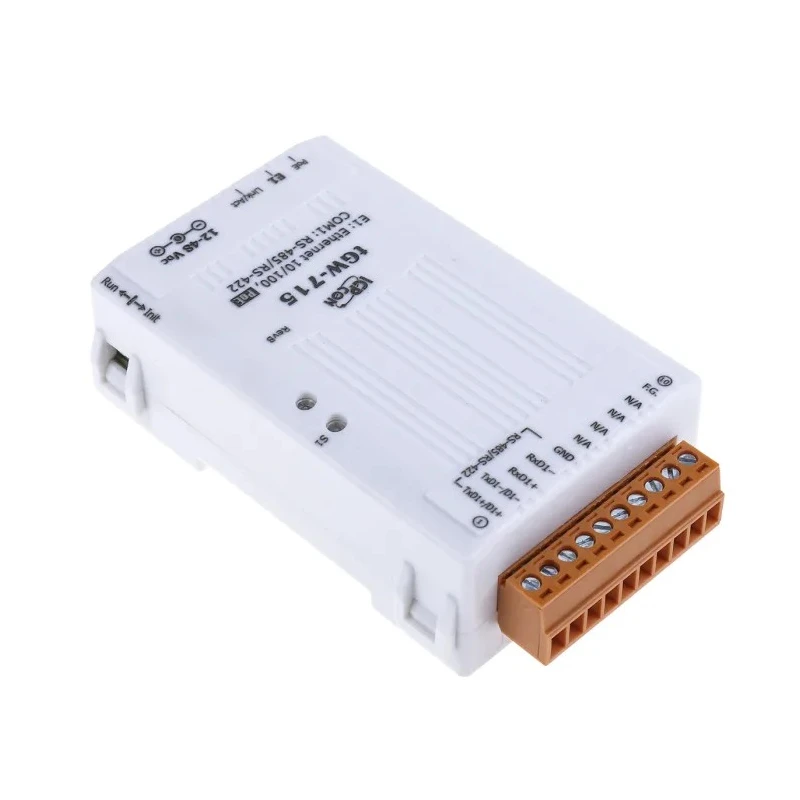

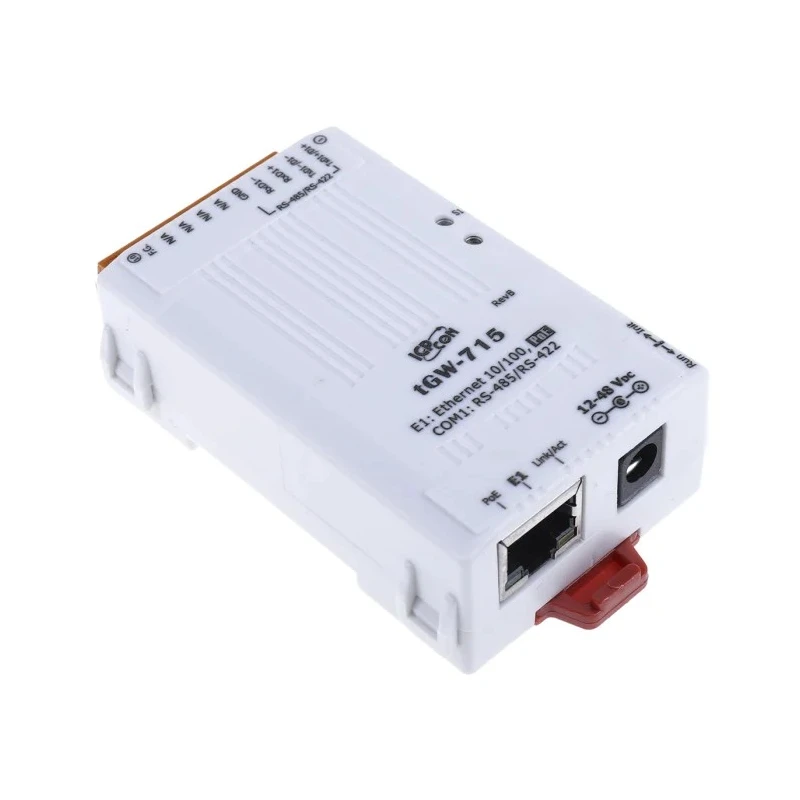

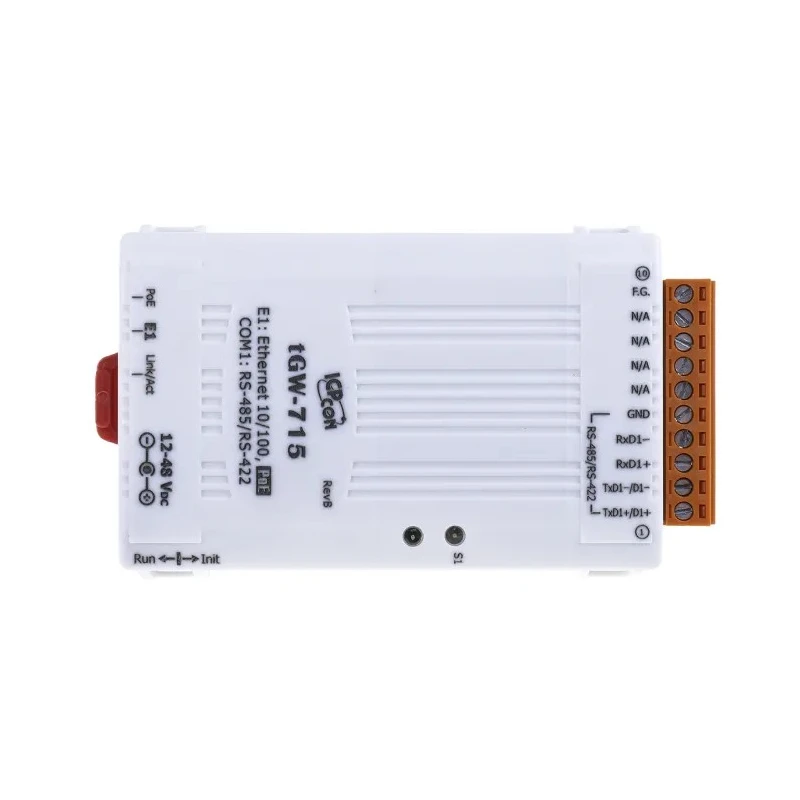

The ICP DAS USA TGW-715 Data Acquisition Module is an industrial-grade device designed for efficient data communication in automation and monitoring systems. It supports RJ45 Ethernet connectivity, enabling reliable communication over TCP/IP networks. Powered by 12 to 48 V DC or via Power over Ethernet (PoE) compliant with IEEE 802.3af class 1, this module offers flexible power options suitable for various industrial applications.

This compact gateway facilitates communication between Modbus TCP and Modbus RTU/ASCII serial devices, eliminating the limitations of traditional serial cable length. Featuring one Ethernet port (10/100 Base-TX) and one RS-485/RS-422 port, it supports both master and slave roles for Modbus TCP and Modbus RTU/ASCII protocols. The embedded 32-bit microcontroller efficiently manages network traffic and ensures smooth communication.

Configuration is simplified through the built-in web server which provides a user-friendly interface to modify network and serial port settings, including DHCP/static IP and gateway masks. The device supports multiple protocols such as TCP, UDP, HTTP, DHCP, BOOTP, and TFTP, as well as UDP responder functionality for easy device discovery.

Constructed from fire retardant materials and meeting RoHS compliance and UL94V0 safety standards, this gateway module is suited for industrial control, factory automation, building automation, remote diagnosis, and management use cases where reliable Modbus communication over Ethernet is required.

Supports Modbus TCP and Modbus RTU/ASCII protocols for master and slave devices. Redundant power inputs via PoE (IEEE 802.3af) and DC jack (12 to 48 VDC) enable flexible installations. Compact form factor with dimensions 27 x 52 x 95 mm minimizes installation footprint.

Built-in web server offers easy onsite or remote configuration. Supports multiple network protocols enabling versatile connectivity options. Utilizes fire retardant materials and complies with RoHS and UL94V0 standards for safety.

Ideal for factory and building automation, as well as remote monitoring and control systems. Explore the extensive range of industrial data acquisition solutions and modules available at EnvMart to enhance your automation and network communication infrastructure.
