ICP DAS USA Data Acquisition Module 8-Channel 10 sps 24-bit, RS-485 Interface I-7017

Free Delivery in India | Lowest Global Shipping Charges

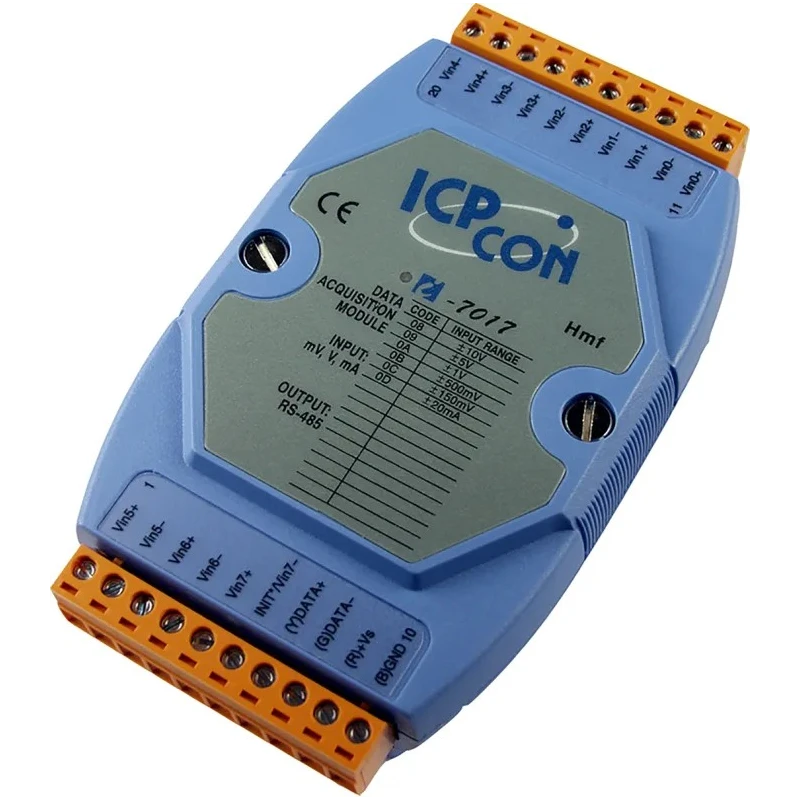

ICP DAS USA Data Acquisition Module 8-Channel 10 sps 24-bit, RS-485 Interface I-7017

Name: ICP DAS USA Data Acquisition Module 8-Channel 10 sps 24-bit, RS-485 Interface I-7017
Brand: ICP DAS USA
SKU: 182957
Price: 540.26 USD
Availability: InStock



Category Data Acquisition Brand ICP DAS USA Condition New

Specifications

Country of Origin	Taiwan
Resolution	24 bit
Brand	ICP DAS USA
Height	35mm
Length	123mm
Model	I-7017
Width	72mm
Bandwidth	15.7Hz
Sampling rate	10sps
Maximum Operating Temperature	75°C
Minimum Operating Temperature	-25°C
Number Of Channels	8

Key Features

Features 8 input channels for versatile data collection.
Maintains 24-bit resolution ensuring high data accuracy.
Supports a sampling rate of 10 samples per second.
Operates on 10 to 30 V DC power supply.
Wide operating temperature range from -25°C to 75°C.
RS-485 interface for reliable communication and data transfer.
Provides 3000 V DC intra-module isolation for enhanced safety.
Includes dual watchdog for system reliability and fault protection.

Product Description

ICP DAS USA I-7017 is an advanced data acquisition module, designed for industrial, building, and factory automation. It features 8 analog input channels with 24-bit resolution and a sampling rate of 10 samples per second, enabling precise and reliable measurement of various sensors and instrumentation signals.

Powered by a 10 to 30 V DC source, this module operates safely over a wide temperature range from -25°C to 75°C, ensuring durability in harsh environments. The compact form factor with dimensions 123mm (L) x 72mm (W) x 35mm (H) allows easy integration into automation systems and control panels.

The I-7017 utilizes an RS-485 communication interface, facilitating robust and long-distance data transmission. It incorporates 3000 V DC intra-module isolation that eliminates interference from other modules or external disturbances, thus improving system reliability. Additionally, the dual watchdog feature provides continuous system monitoring and fault recovery, enhancing operational safety.

Common industrial applications include factory automation, building management systems, environmental monitoring, and machine condition monitoring. Its high resolution and precise sampling make it suitable for scientific instrumentation and laboratory measurement tasks as well.

Features 8 input channels for versatile data collection. Maintains 24-bit resolution ensuring high data accuracy. Supports a sampling rate of 10 samples per second. Operates on 10 to 30 V DC power supply. Wide operating temperature range from -25°C to 75°C.

Compact dimensions: 123mm length, 72mm width, and 35mm height. RS-485 interface for reliable communication and data transfer. Provides 3000 V DC intra-module isolation for enhanced safety. Includes dual watchdog for system reliability and fault protection.

Manufactured in Taiwan, Province Of China with high reliability standards. Explore the full range of Data Acquisition modules and related instrumentation at EnvMart to meet diverse industrial and laboratory needs.
