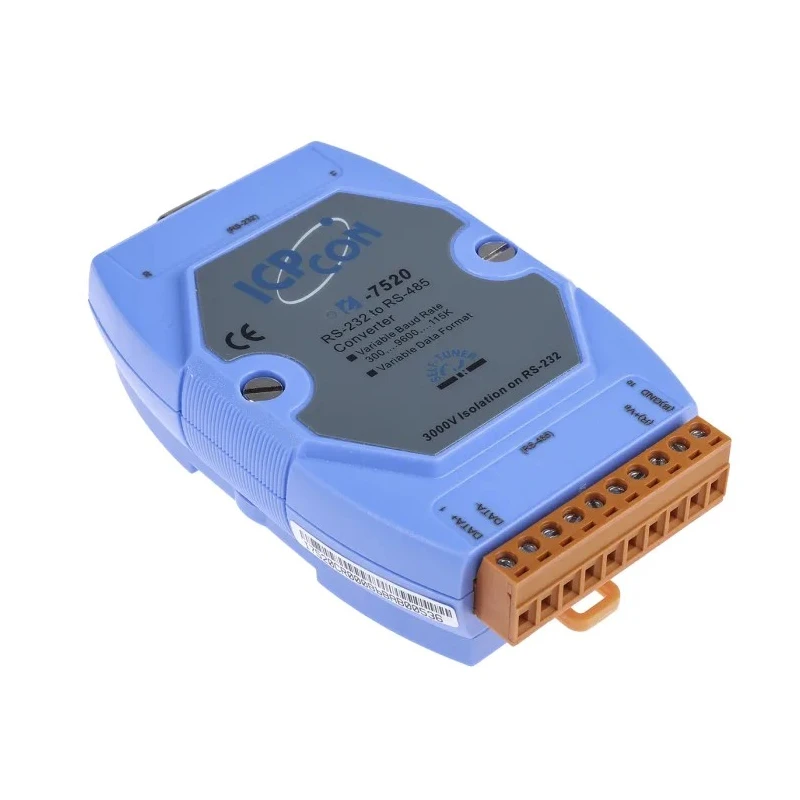

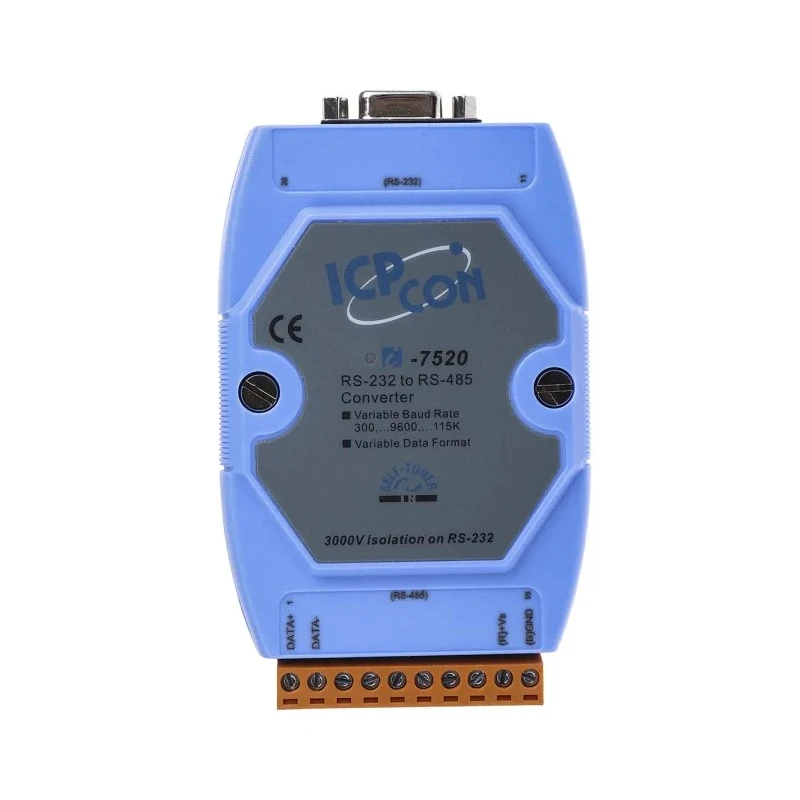

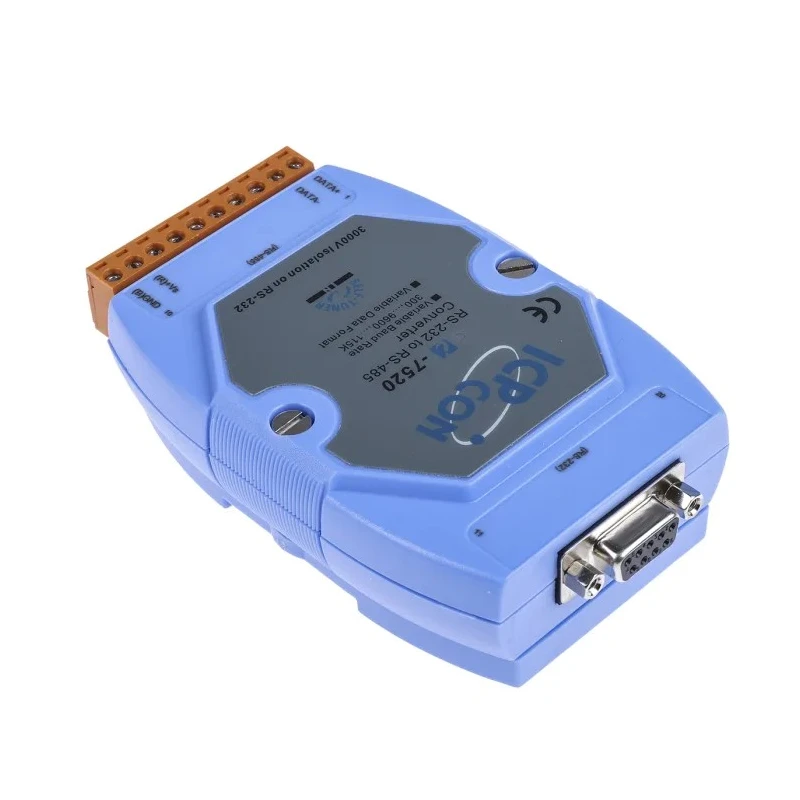

ICP DAS USA RS232, RS432 Ethernet Media Converter with Half Duplex and Full Duplex Modes 1.2 km Transmission Range I-7520
Specifications
| Country of Origin | Taiwan |
|---|---|
| Output | RS-485 protocol (two wire, D+, D-) |
| Brand | ICP DAS USA |
| Model | I-7520 |
| Input | RS-232 protocol to female 9 pin connector |
| Maximum Operating Temperature | 75°C |
| Connection port | RS232, RS432 |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| For Use With | Serial Network |
| Standards/Approvals | RoHS |
| Maximum Data Transfer Rate | 115.2kbps |
| Maximum Transfer Distance | 1.2km |
| Fibre Operating Mode | Half Duplex, Full Duplex |
| Repeater request | 4,000 feet or over 256 modules |
Key Features
- Supports RS-232 protocol via female 9-pin connector for input.
- Output uses RS-485 protocol with two-wire D+ and D- signals.
- Auto switching baud rate from 300 to 115200 bps enhances compatibility.
- Features internal self-tuning for optimal communication stability.
- Maximum network size of 256 modules without a repeater and 2048 with repeater support.
- 3000VDC isolation protection on both RS-232 and RS-485 sides for safety.
- Supports half duplex and full duplex fibre operating modes for flexibility.
- Durable fire-retardant enclosure suitable for industrial environments.
Product Description
ICP DAS USA I-7520 Ethernet Media Converter is designed to convert RS-232 signals into isolated RS-485 signals supporting both half duplex and full duplex fibre operating modes. This device facilitates long-distance data transfer up to 1.2 km, making it an excellent solution for industrial-grade networking needs.
Constructed with fire-retardant materials, the converter offers robust isolation protection with 3000VDC on the RS-232 and RS-485 sides, safeguarding sensitive electronics against voltage surges. It supports an auto switching baud rate from 300 to 115200 bps with an internal self-tuning feature, allowing optimal communication without manual configuration.
With a maximum output of 1 and connection ports for RS232 and RS432, the I-7520 enables seamless integration within serial network environments. It can support up to 256 modules on a single RS-485 network without a repeater, scaling to 2048 modules with repeaters, suitable for extensive industrial automation or monitoring systems.
The operating temperature range from -25°C to 75°C ensures reliable operation in varying environmental conditions, making it suitable for industrial, laboratory, manufacturing, and networking applications that require secure and long-distance serial communication.
Supports RS-232 to RS-485 protocol conversion with female 9-pin input connector. Half duplex and full duplex fibre operating modes for flexible communication. Auto switching baud rate with internal self tuner covering 300 to 115200 bps.
3000VDC isolation protection minimizes risk of electrical disturbances. Max 256 modules without and 2048 with repeater on RS-485 network. Compatible with serial network setups requiring long-distance link. Robust fire-retardant enclosure suited for industrial settings.
Wide temperature tolerance ensures durability in diverse conditions. Supports repeater requests for connections over 4000 feet. Industrial-grade solution for building long-distance communication systems.
This ICP DAS USA product is ideal for professional networking and industrial communication applications, ensuring high performance and safety. Explore more Ethernet Media Converters on EnvMart for diverse networking solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum transmission range of this model is 1.2 km.
The maximum data transfer rate is 115.2 kbps.
The operating temperature range is from -25°C to 75°C.
It has a durable fire-retardant enclosure suitable for industrial environments.
This model supports both half duplex and full duplex fibre operating modes.
Yes, it is designed for long-distance data transfer, supporting connections over 4000 feet with repeater requests.
It complies with RoHS standards.
It is designed for use with serial networks, facilitating secure long-distance communication.
