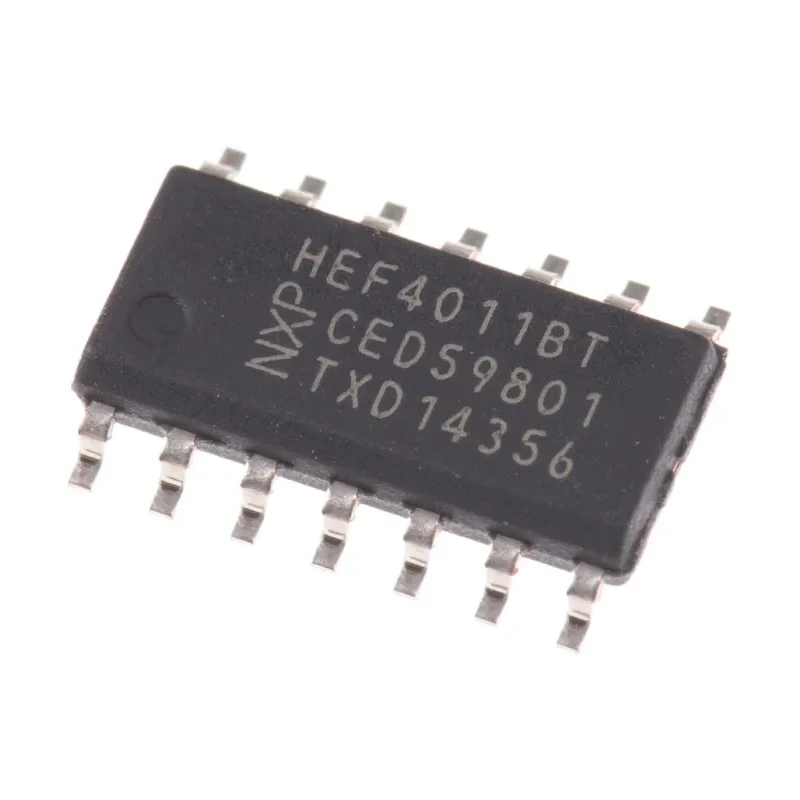

Nexperia 4 2-Input NAND Logic Gate, 14-Pin SOIC HEF4011BT,652

Nexperia HEF4011BT,652 is a quad 2-input NAND logic gate designed for precise and efficient digital logic control. Packaged in a 14-pin SOIC surface-mount form factor, it integrates four independent NAND gates, each with two inputs, making it highly versatile for applications in industrial and consumer electronics.

Featuring CMOS input technology, the device operates efficiently with a supply voltage range from 3 V to 15 V. This wide voltage tolerance facilitates use in mixed 3.3 V and 5 V systems, lowering design complexity and enabling compatibility with modern microcontrollers and logic circuits.

The outputs are fully buffered to ensure high noise immunity and stable output impedance, which improves signal integrity and reduces pattern sensitivity. The device has a maximum propagation delay of 35 ns at specified load capacitances, suitable for moderately fast digital switching applications.

This logic gate IC performs reliably across a broad temperature range from -40°C to 85°C, ensuring durability in various industrial environments. Its peak high and low-level output currents are ±3.6 mA, maintaining consistent signal levels during operation.

The 14-pin SOIC package provides a compact footprint while enabling surface mount technology (SMT) assembly, optimizing PCB space and reducing manufacturing costs. This product is not certified for automotive applications but is ideal for general electronics, embedded system designs, and prototyping.

Four 2-input NAND gates integrated into one IC. Wide operating voltage range: 3 V to 15 V. CMOS technology ensures low power consumption. Buffered outputs provide excellent noise immunity. High switching speed with 35 ns maximum propagation delay.

Operating temperature from -40°C to 85°C. Compact 14-pin SOIC package suitable for surface mounting. Reliable output current rating of ±3.6 mA ensures signal consistency. Not automotive rated, ideal for industrial and general electronics.

Perfect for use in electronic logic control, digital signal processing, and embedded application development in industrial, laboratory, and commercial environments. Explore more semiconductor solutions and Logic Gate ICs available at EnvMart for your engineering and design needs.
