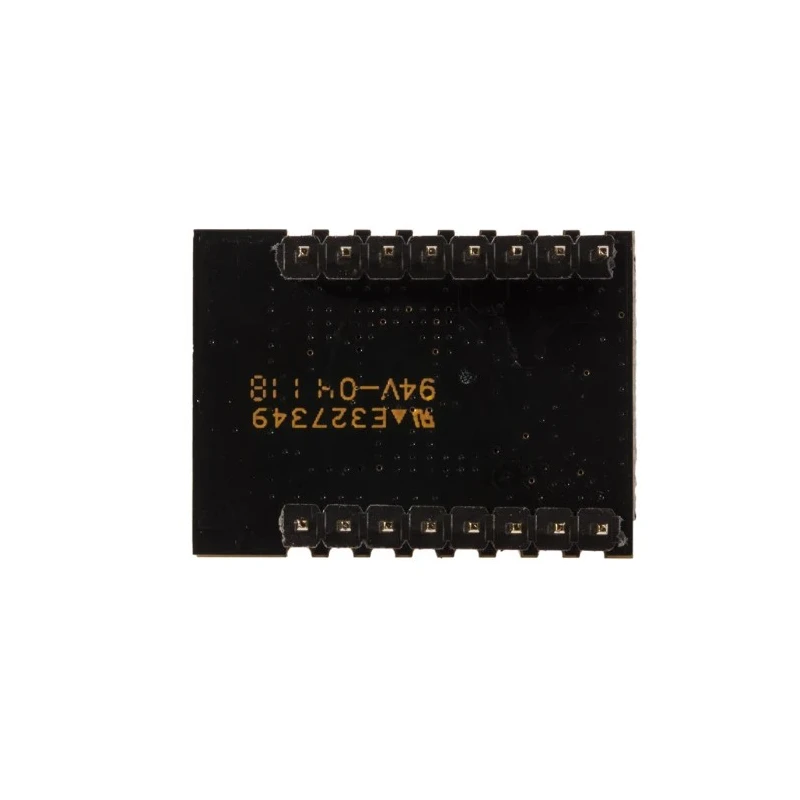

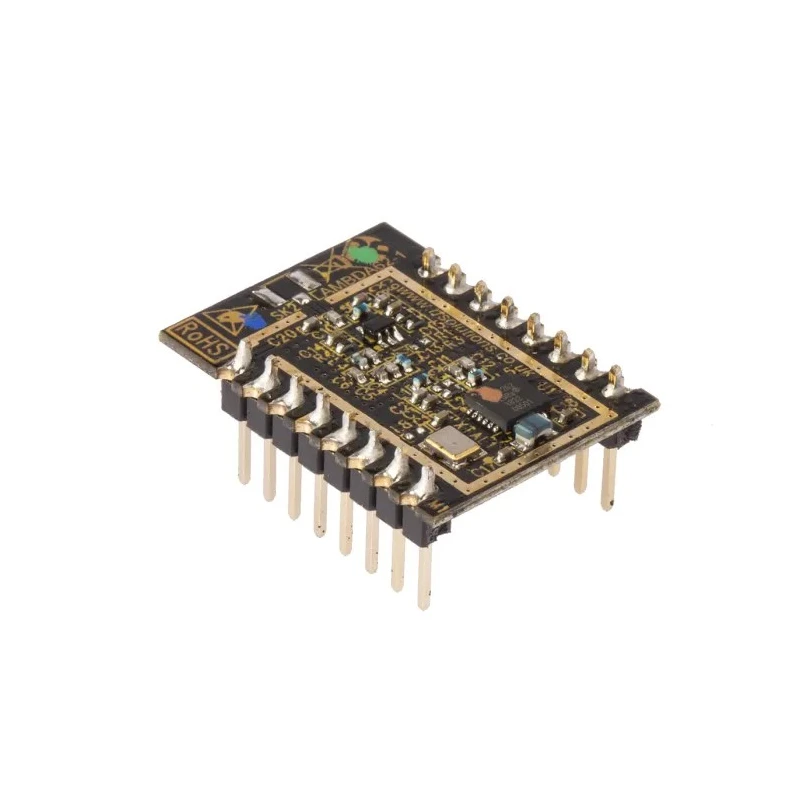

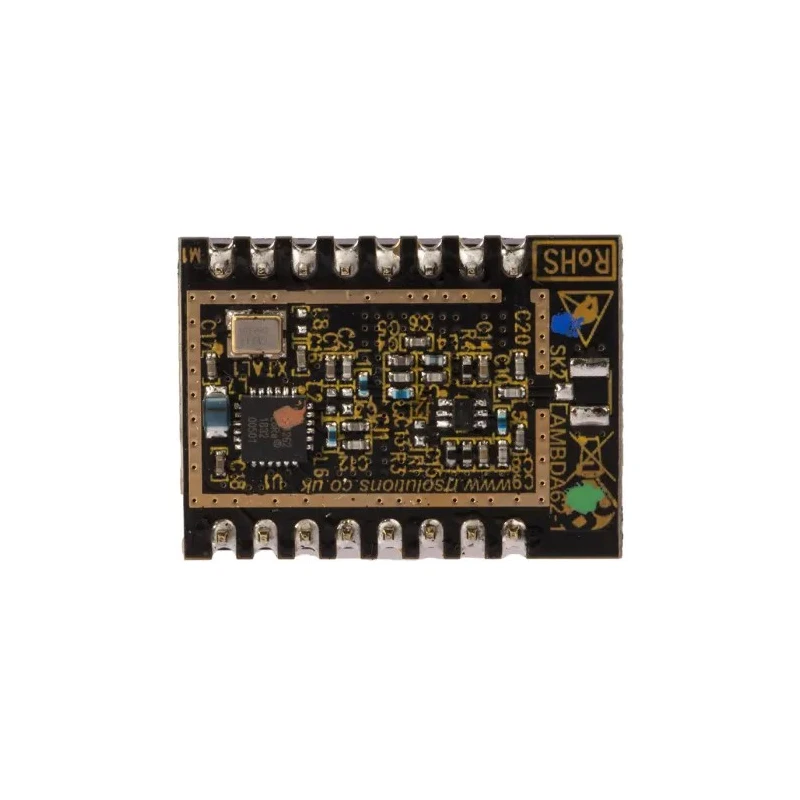

RF Solutions LoRa Module 868MHz Ultra-Long Range 22 km, -148 dBm Receiver Sensitivity LAMBDA62-8D

RF Solutions LAMBDA62-8D LoRa Module is a high-performance communication module operating at 868 MHz frequency, designed for ultra-long range wireless data transmission in industrial and commercial applications. This module supports a wide voltage input from 1.6V to 3.3V, making it adaptable to various power supply configurations.

The module features a DIP package with an extremely low profile of 1mm height, facilitating integration into compact electronic systems. Its maximum output power is 22 dBm, which, combined with its outstanding receiver sensitivity of -148 dBm, enables communication distances up to 22 km in optimal conditions.

Equipped with the Semtech SX1262 LoRa modem, the module supports various modulation schemes including LoRa, FSK, GFSK, MSK, GMSK, and OOK, allowing flexible communication protocols to suit diverse wireless network requirements.

Additional integrated features include a built-in temperature sensor and a low battery indicator to enhance monitoring capabilities. The module also incorporates a bullet-proof front end with -12.5 dBm for improved signal integrity, a built-in RF switch, and an efficient impedance matching network that improves transmission quality and reduces power consumption.

Low receive current at 4.6 mA during LoRa operating mode ensures minimal energy usage, making it suitable for battery-powered and energy-sensitive applications. The automatic RF sense and Channel Activity Detection (CAD) with ultra-fast Automatic Frequency Control (AFC) enhances the module’s resilience against interference and supports robust communication links.

This transceiver module is ideal for integration in industrial automation, agricultural monitoring, smart city applications, and other wireless sensor network deployments requiring reliable long-distance communication with low power consumption.

Operates at 868 MHz frequency with maximum output power of 22 dBm. Ultra-low receiver sensitivity of -148 dBm ensures precise signal reception. Supports SPI bus interface for communication. Wide supply voltage range from 1.6V to 3.3V.

Compact 23 mm × 20 mm form factor in DIP package. Includes built-in temperature sensor and low battery indicator. Low RX current of 4.6 mA during operation. Multiple modulation support including LoRa and FSK. High interference immunity and link budget of 170 dB.

Set includes 1 Pc RF Solutions LAMBDA62-8D LoRa Module. Country of origin: United Kingdom. Product condition: New. This module represents a cost-effective and reliable solution for implementing ultra-long range wireless communication in various industrial, agricultural, commercial, and IoT applications.
