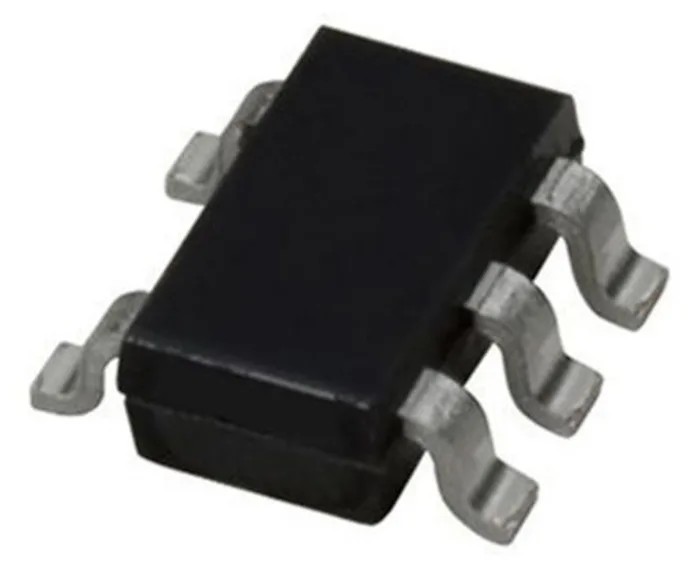

Texas Instruments CMOS Single SPST Multiplexer 5-Pin SOT-323 TS5A3166DCKR

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments CMOS Single SPST Multiplexer 5-Pin SOT-323 TS5A3166DCKR

Name: Texas Instruments CMOS Single SPST Multiplexer 5-Pin SOT-323 TS5A3166DCKR
Brand: Texas Instruments
SKU: 138342



Category Multiplexer & Demultiplexer ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	900μm
Length	2mm
Model	TS5A3166DCKR
Width	1.25mm
Mount Type	Surface
Output type	CMOS
Configuration	Single SPST
Maximum Operating Temperature	85°C
Package Type	SOT-323
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	5
Number of Elements per Chip	1
Maximum Supply Voltage	5.5V
Logic Family	CMOS
Minimum Supply Voltage	1.65V
Multiplexer/Demultiplexer	Multiplexer
Maximum On State Resistance	1.2Ω

Key Features

CMOS logic family ensures low power consumption.
Single SPST configuration ideal for signal routing applications.
Wide voltage supply range from 1.65 V to 5.5 V.
Maximum on-state resistance of 1.2 ohms for efficient switching.
Compact 5-pin SOT-323 surface-mount package supports space-saving designs.
Operating temperature range from -40°C to 85°C for reliable use in harsh environments.
RoHS compliant ensuring environmental safety.
Pin count of 5 suitable for embedded circuit applications.

Product Description

Texas Instruments TS5A3166DCKR is a high-performance CMOS multiplexer featuring a single single-pole single-throw (SPST) switch configuration designed for electronic circuit applications requiring reliable signal routing and isolation. This device is enclosed in a compact 5-pin SOT-323 surface-mount package, enabling efficient PCB layout with minimal space usage.

Operating with a supply voltage range from 1.65 volts to 5.5 volts, the TS5A3166DCKR delivers low on-state resistance of 1.2 ohms, ensuring minimal signal loss and excellent electrical performance. It supports operation in demanding thermal environments with an extended operating temperature range from -40°C to 85°C.

Its CMOS logic family technology enables low power consumption and compatibility with a variety of digital circuits. The device finds applications in industrial, telecommunications, automotive (non-automotive certified), and consumer electronics sectors where signal multiplexing and switching are required.

CMOS logic family ensures low power consumption. Single SPST configuration ideal for signal routing applications. Wide voltage supply range from 1.65 V to 5.5 V. Maximum on-state resistance of 1.2 ohms for efficient switching.

Compact 5-pin SOT-323 surface-mount package supports space-saving designs. Operating temperature range from -40°C to 85°C for reliable use in harsh environments. RoHS compliant ensuring environmental safety. Pin count of 5 suitable for embedded circuit applications.

This multiplexer is RoHS compliant, making it suitable for environmentally conscious design processes. It is ideal for use in industrial machines and instruments, telecommunications equipment, and general electronic applications that require precise and reliable signal multiplexing.
