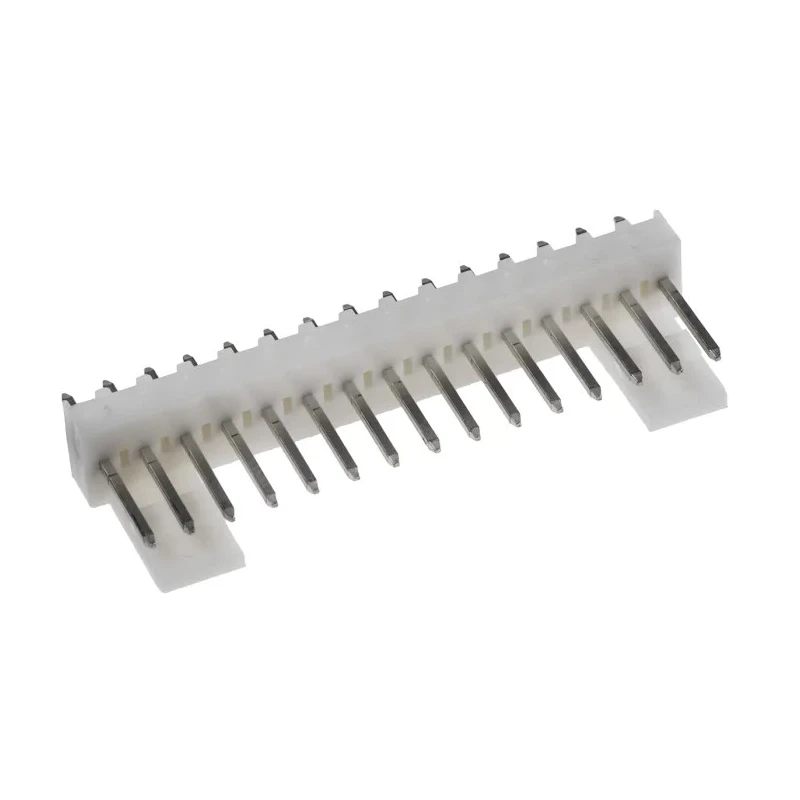

Molex KK 254 Series Straight Through Hole Pin Header, 15 Contact, 2.54 mm Pitch, 1 Row, Unshrouded 22-27-2151
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 4A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.56mm |
| Mating Pin Length | 2.54mm |
Key Features
- Constructed with a nylon housing for electrical insulation and durability.
- Features brass contacts with tin plating for corrosion resistance and conductivity.
- Designed for through-hole mount with solder termination for sturdy PCB connection.
- Operates reliably between -40°C and 105°C temperature range.
- Rated for a maximum voltage of 250V and current carrying capacity of 4A.
- Tail pin length measures 3.56 mm and mating pin length is 2.54 mm for secure connections.
- Suitable for high vibration environments due to its secure straight friction lock design.
- Compatible with Molex 2695, 6471 series crimp terminal housings and 7880 series high pressure housings.
Product Description
Molex 22-27-2151 KK 254 Series Straight Through Hole Pin Header is a durable and reliable wire-to-board male pin header featuring 15 contacts arranged in a single row at 2.54 mm pitch. The housing is made from red UL 94V-0 rated nylon, providing excellent electrical insulation and flame retardance for industrial and electronic applications.
The contacts are manufactured from brass with tin plating to ensure good conductivity and corrosion resistance. With a through-hole mount design and solder termination type, this pin header offers a robust mechanical and electrical connection to printed circuit boards.
Designed for operation in a broad temperature range from -40°C to 105°C, and rated for 250 volts and 4 amperes of current, it is suitable for demanding electrical environments. The tail pin length of 3.56 mm and mating pin length of 2.54 mm enable a secure mechanical fit and reliable mating action.
This unshrouded connector's straight friction lock enhances retention when mated, making it ideal for applications subject to high vibration, such as industrial controls and communications equipment. It mates with Molex 2695 and 6471 series crimp terminal housings that include locking ramps, and 7880 series high pressure housings for enhanced performance.
The pin header is widely used in industries including electronics manufacturing, industrial automation, laboratory instrumentation, telecommunications, and power supply assemblies. Its robust construction supports long-term reliability and ease of maintenance or testing due to the unshrouded contact access.
Constructed with nylon housing for insulation and durability. Brass contacts with tin plating for conductivity and corrosion resistance. Through hole solder termination for secure PCB mounting. Operates reliably in -40°C to 105°C temperature range.
Rated for 250V voltage and 4A current capacity. Includes 15 contacts in a single row with 2.54 mm pitch. Compatible with related Molex crimp terminal and housing series. Straight friction lock resists vibration and disconnection.
Unshrouded design allows easy contact access. Explore the extensive range of PCB connectors and wire housings at EnvMart to find compatible products and accessories for your application needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 250V.
This model has a current carrying capacity of 4A.
The pitch size of the contacts is 2.54 mm.
The housing is made from nylon, while the contacts are brass with tin plating for conductivity and corrosion resistance.
It operates reliably in a temperature range from -40°C to 105°C.
This pin header features 15 contacts arranged in a single row.
The tail pin length measures 3.56 mm.
This connector is unshrouded, allowing for easy access to the contacts.
It uses a through-hole mounting type with solder termination for secure PCB connection.
It is compatible with Molex 2695 and 6471 series crimp terminal housings, as well as 7880 series high pressure housings.
The orientation of this pin header is straight.
This pin header is widely used in electronics manufacturing, industrial automation, laboratory instrumentation, telecommunications, and power supply assemblies.
