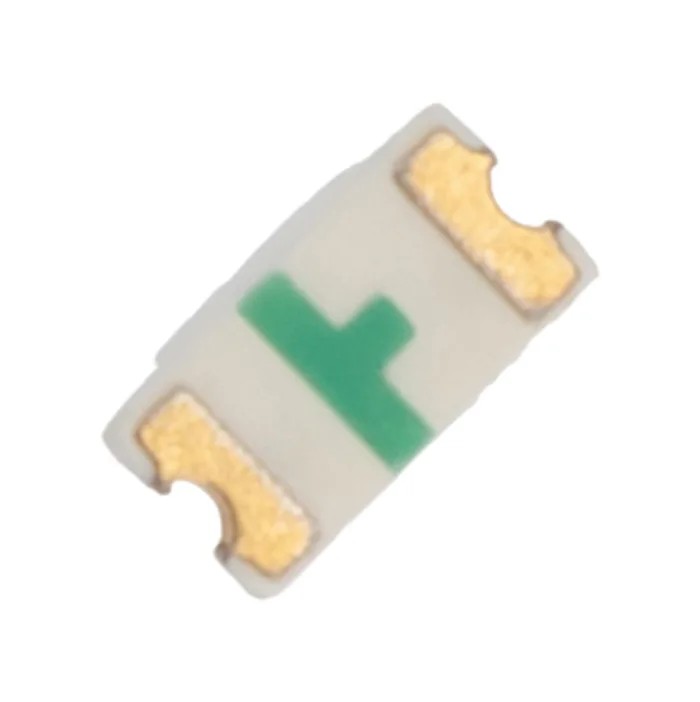

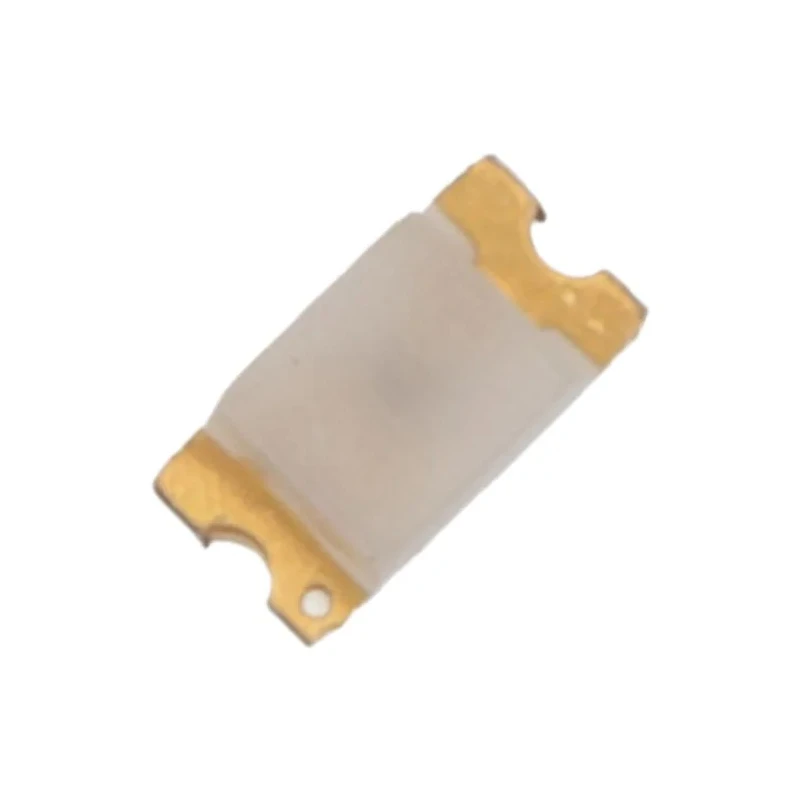

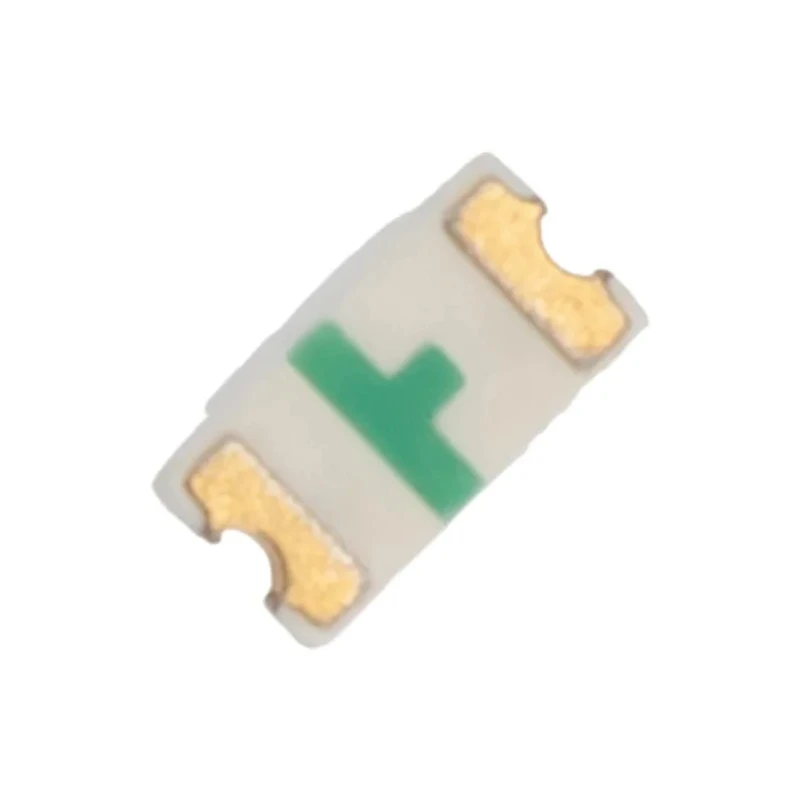

Broadcom 2.2 V Green LED Standard Surface Chip LED with 20mA Forward Current and 15 mcd Luminosity HSMG-C190

Broadcom HSMG-C190 is a high-quality 2.2 V Green LED Standard Surface Chip LED designed for low-power electronic applications requiring reliable visual indication. It operates at a forward voltage of 2.2 volts and supports a forward current of up to 20 milliampere with a power dissipation ceiling of 52 milliwatts, making it suitable for a variety of control panel and device backlighting uses.

This component uses a clear rectangular lens with a diffused and untinted finish to provide uniform light diffusion and an expansive viewing angle of 170 degrees. The LED's green emission is centered at a dominant wavelength of 572 nanometers, producing bright and distinct visible light at an intensity of 15 millicandela.

Mounted using surface mount technology, the LED features 2 pins and is supplied in tape and reel packaging to optimize integration within automated pick-and-place manufacturing processes. The component is RoHS compliant, meeting environmental health and safety standards.

Applications of the HSMG-C190 include status display indicators on control panels, backlighting for handheld instruments, illumination for small switches and bezels, and general purposes on printed circuit boards where a high viewing angle is essential.

Rectangular clear lens with a diffused finish softens light output. Wide 170° viewing angle ensures visibility from multiple directions. Maximum forward current of 20 mA for controlled brightness. Emits bright green light at 572nm wavelength.

Standard tape and reel packaging supports automated assembly lines. Compact lens dimensions of 1.6 x 0.8 x 0.8 mm allow installation in space-constrained electronics. Two-pin configuration simplifies circuit design integration.

Low forward voltage (2.2 V) minimizes power consumption. RoHS compliance aligns with environmental regulations.

Choose Broadcom's HSMG-C190 for durable, efficient, and high-performance LED illumination in industrial, electronics manufacturing, communication devices, instrumentation, and consumer electronic segments. Explore more LED components and chip LEDs in the Broadcom range at EnvMart.
