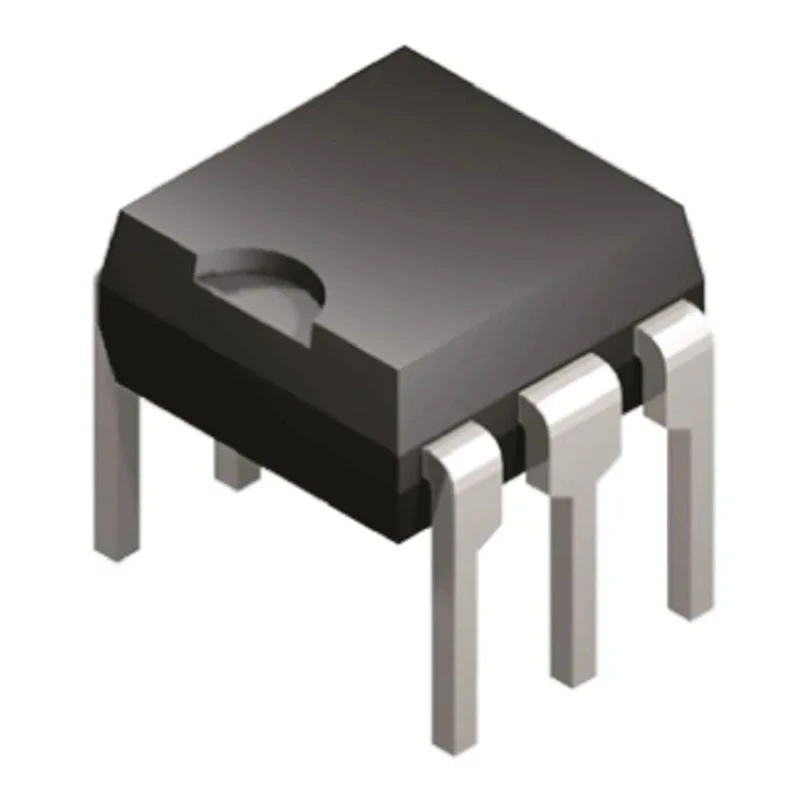

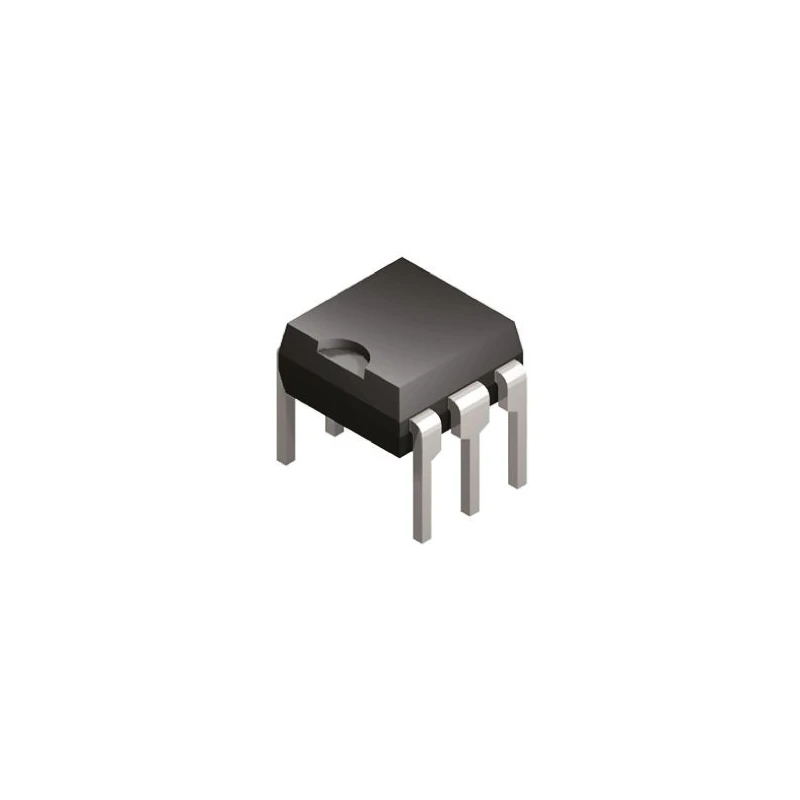

Panasonic PCB Mount Solid State Relay Through Hole Surface Mount 600 V Load 0.55 A Load AQV21

Panasonic AQV21 Series PCB Mount Solid State Relay (Model AQV21) is engineered for efficient switching applications on printed circuit boards, supporting both through hole and surface mount types. It allows control of up to 0.55 amperes load current with a maximum load voltage rating of 600 volts, making it suitable for industrial, automation, and control system uses.

The relay operates on a 5 V control voltage, compatible with typical logic circuits. Its DIP-6 package ensures a compact footprint with dimensions of 8.8mm length, 6.4mm width, and 3.9mm height, ideal for space-constrained PCB designs.

With low on state resistance of 120 ohms and minimal off state leakage current of 1 microampere, the device achieves high efficiency and reliable signal integrity. It is designed to operate within a temperature range of -40°C to 85°C, which accommodates various industrial environments.

This solid state relay utilizes Panasonic's PhotoMOS output technology to provide silent, fast switching with excellent durability. It is RoHS compliant, reflecting adherence to environmental regulations.

Supports through hole and surface mounting for PCB integration. 0.55 A maximum load current and 600 V maximum load voltage ratings. 5 V input control voltage for logic level operation. DIP-6 compact package measuring 8.8 x 6.4 x 3.9 mm.

Operation temperature range from -40°C to +85°C. Low on state resistance (120 Ω) and minimal leakage current (1 μA). PhotoMOS output provides silent and reliable switching. Compliant with RoHS environmental standards.

This relay is suited for industrial automation, signal conditioning, and control panel applications where reliable, noise-free switching is required. For a comprehensive selection of Solid State Relays, browse the Electronics & Electricals category at EnvMart.
