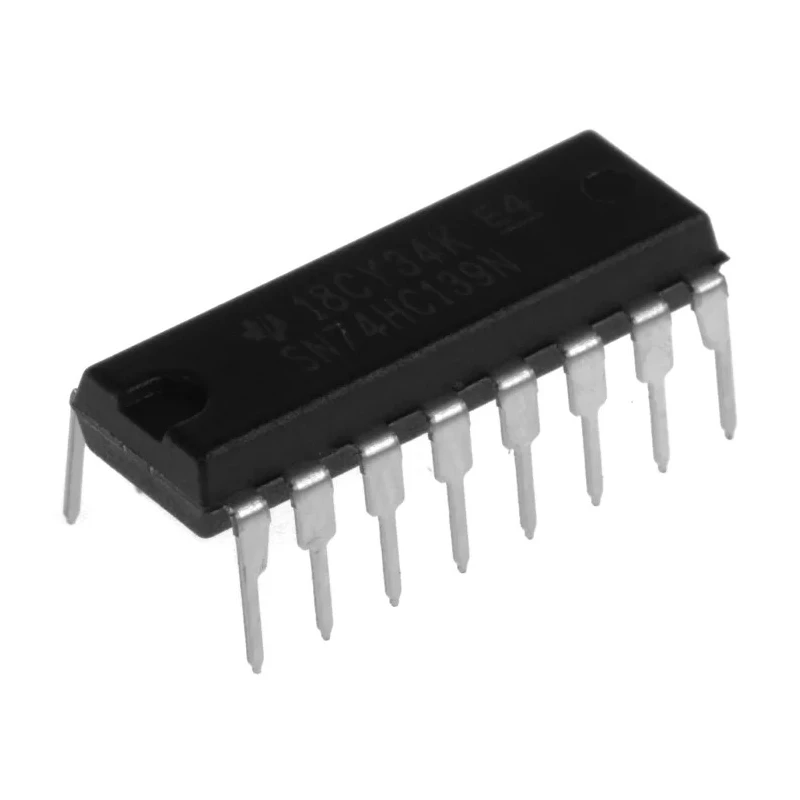

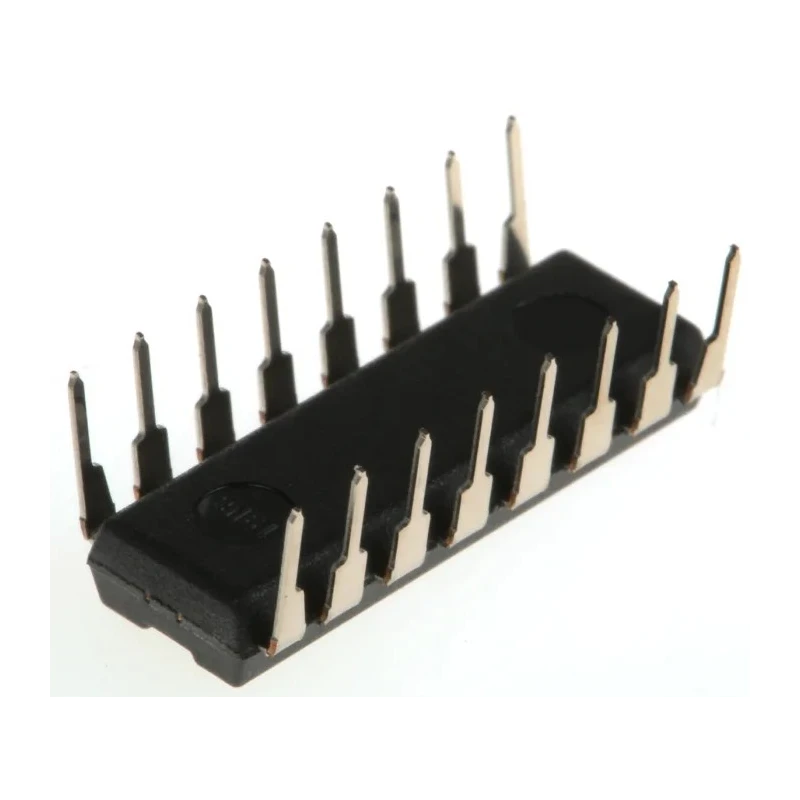

Texas Instruments Decoder Logic IC 1MHz, 16-Pin PDIP Package SN74HC139N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN74HC139N |
| Mount Type | Through Hole |
| Compatibility | Input CMOS, Output CMOS |
| Number of inputs | 4 |
| Series | SN |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Operating Voltage | 2 to 6 V |
| Pin Count | 16 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Logic Function | Decoder, Demultiplexer |
| Minimum Supply Voltage | 2V |
Key Features
- Operates at a supply voltage range of 2V to 6V.
- Supports 4 inputs for flexible decoding functions.
- Through Hole mount type for ease of PCB integration.
- Compatible with input and output CMOS logic levels.
- Operating temperature range from -40°C to 85°C for industrial applications.
- Compact dimensions with 19.3mm length and 4.57mm height.
- Part of the 74HC Family using high-speed CMOS technology for low power consumption.
- Designed for use in logic decoding and demultiplexing circuits.
Product Description
Texas Instruments SN74HC139N is a high-speed CMOS logic decoder integrated circuit, built for industrial and commercial logic circuit applications. Featuring 1MHz frequency operation and a 16-pin PDIP package, this device supports decoding and demultiplexing functionalities with 4 input lines.
The device operates efficiently within a supply voltage range of 2 to 6 volts, and supports CMOS-compatible input and output signals, making it suitable for modern digital systems. Its through hole mounting configuration allows for straightforward assembly on printed circuit boards.
The SN74HC139N is built on silicon gate CMOS technology to deliver high-speed performance comparable to LSTTL logic families while consuming significantly less power. This makes it ideal for applications requiring both speed and energy efficiency.
This decoder IC is rated for operation in harsh environments, with a temperature range spanning from -40°C to 85°C. Compact dimensions (19.3mm length and 4.57mm height) enable its use in space-constrained designs.
Operates at supply voltages between 2V and 6V. 4 input lines support flexible decoding and demultiplexing. Through hole mounting ensures stable PCB placement. Compatible with CMOS logic input and output. Temperature rating from -40°C to 85°C for reliability in diverse environments.
Compact 16-pin PDIP package for easy installation. Applications include industrial logic control, signal decoding, and demultiplexing tasks in laboratory, manufacturing, communication equipment, and embedded systems. Explore more industrial-grade semiconductor components and logic ICs at EnvMart for your precise electronic design and manufacturing needs.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates efficiently within a supply voltage range of 2 to 6 volts.
The maximum operating temperature for the SN74HC139N is 85°C.
It supports 4 input lines for flexible decoding functions.
This unit features a through hole mount type for ease of PCB integration.
The compact dimensions of this model are 19.3mm in length and 4.57mm in height.
Yes, it is compatible with both input and output CMOS logic levels.
This model is designed for logic decoding and demultiplexing tasks.
The minimum operating temperature for the SN74HC139N is -40°C.
This decoder IC has a pin count of 16.
It belongs to the SN series of logic devices.
This model is suitable for applications in industrial logic control, signal decoding, and demultiplexing tasks in various systems.
It is built on high-speed CMOS technology for low power consumption.
