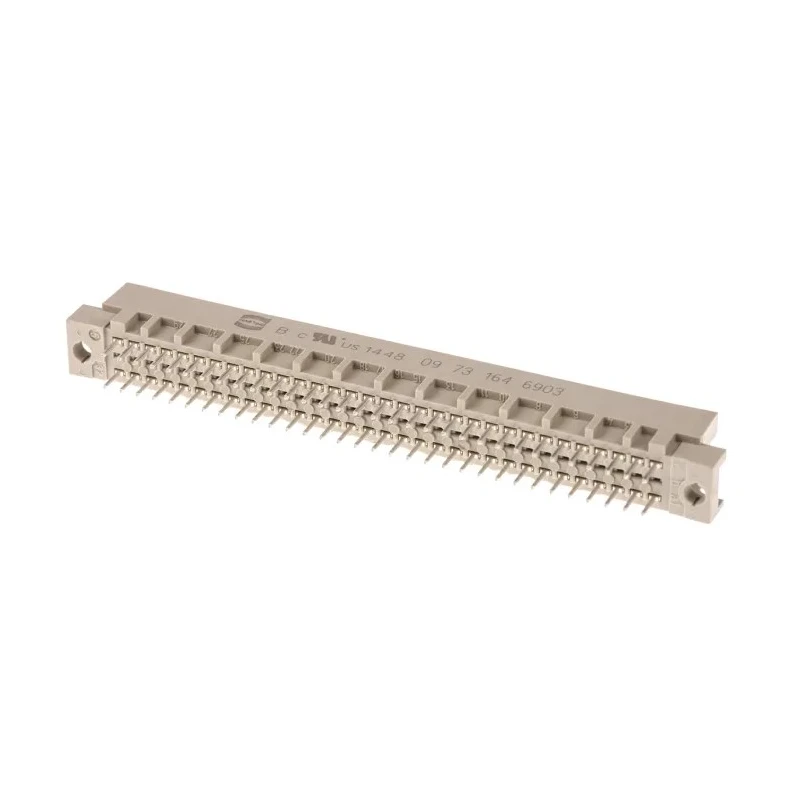

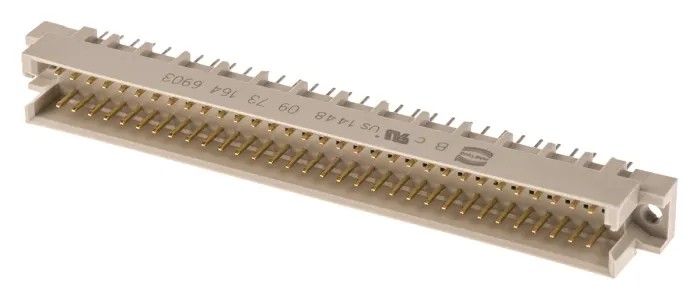

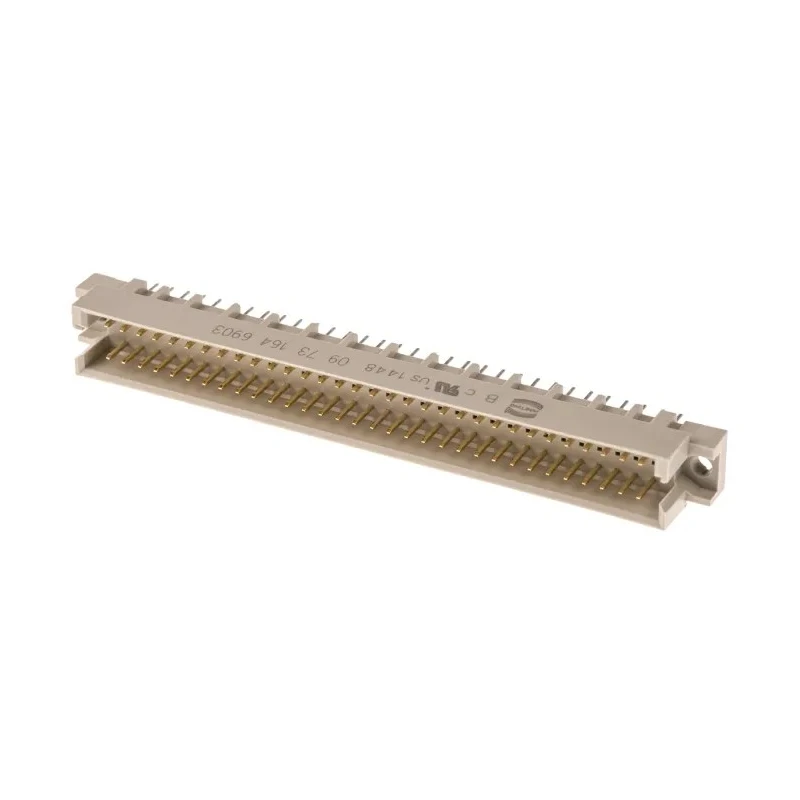

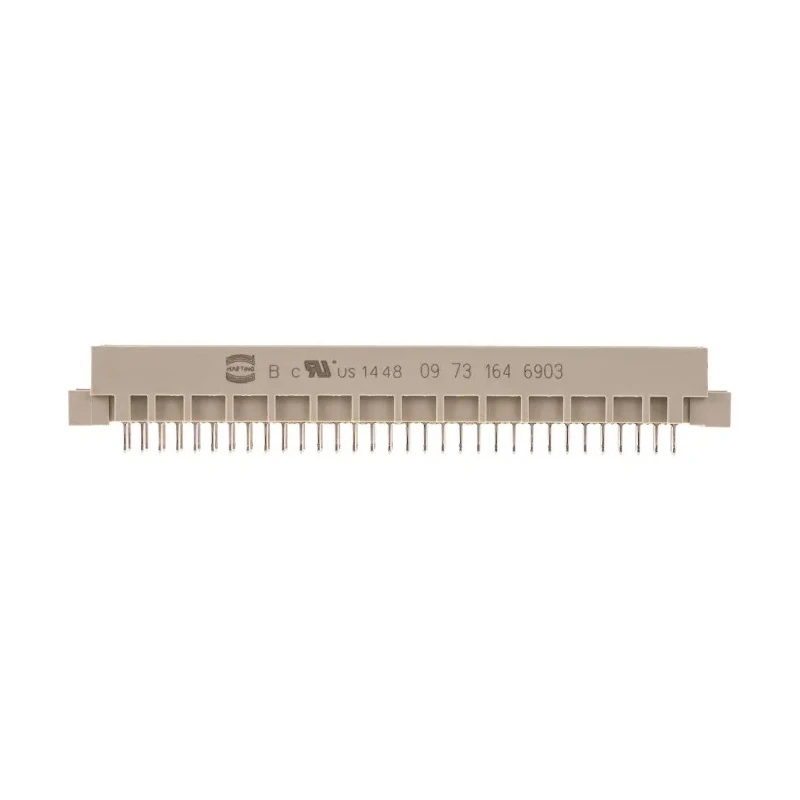

HARTING DIN 41612 64 Way 2.54 mm Pitch, Type Through Hole, Type C/2, Type Solder Class Class C2, 2 Row Male 09731646903

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 64 Way 2.54 mm Pitch, Type Through Hole, Type C/2, Type Solder Class Class C2, 2 Row Male 09731646903

Name: HARTING DIN 41612 64 Way 2.54 mm Pitch, Type Through Hole, Type C/2, Type Solder Class Class C2, 2 Row Male 09731646903
Brand: HARTING
SKU: 136853
Price: 7.12 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	64
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	20mΩ
Row Loading	A/C

Key Features

Features 64 gold over nickel plated contacts for reliable conductivity.
Two-row male connector with straight orientation for through-hole mounting.
Rated for a maximum current of 2A and a contact resistance of 20 milliohms.
Suitable for operating temperatures from -55°C to 125°C.
Constructed with copper alloy contacts and polybutylene terephthalate housing for durability.
Compatible with 19in Eurocard racking systems and provides a robust connection solution.
Meets Class C2 solder termination standards for secure PCB soldering.
Designed to withstand industrial and electronic component assembly environments.

Product Description

HARTING 09731646903 DIN 41612 Connector is a high-quality 64 Way, 2 Row Male connector featuring a 2.54 mm pitch for precise connections in electronic assemblies. It is designed with a through-hole mounting style and a straight orientation, ideal for robust and durable soldering processes in industrial and manufacturing settings.

The connector's contacts are made of copper alloy with gold over nickel plating, ensuring excellent electrical conductivity and corrosion resistance. The polybutylene terephthalate housing provides mechanical strength and thermal stability, suitable for operation across a wide temperature range from -55°C up to 125°C.

This DIN 41612 standard connector supports a current rating of 2A and maintains a maximum contact resistance of 20 milliohms, ensuring reliable signal integrity in high-demand electronic applications. The Class C2 solder termination guarantees a secure and durable soldered connection to PCBs, compatible with the C/2 subtype specifications.

Specifically designed for use in Eurocard racking systems with 19-inch racks, it facilitates reliable backplane and rack interconnections in communications, industrial controls, and automation equipment. The connector assembly supports A/C row loading and male contact gender, which fits seamlessly into established DIN 41612 connector systems.

64 gold over nickel plated contacts for durability and superior conduction. Through-hole mount type with straight orientation suitable for PCB assembly. Supports operating temperatures from -55°C to 125°C, ideal for harsh environments.

Robust copper alloy contacts combined with a strong polybutylene terephthalate housing. Class C2 solder termination ensures secure and stable solder joints. Meets DIN 41612 series standards for compatibility in electronic rack systems.

Rated for 2A continuous current with maximum 20 milliohms contact resistance. Perfect for industrial, manufacturing, and electronic component interconnection applications. Reliable solution for backplane and rack connector needs in automation and power electronics.

Discover more DIN 41612 Connectors at EnvMart and enhance your electronic and industrial assembly projects with trusted HARTING quality and performance.
