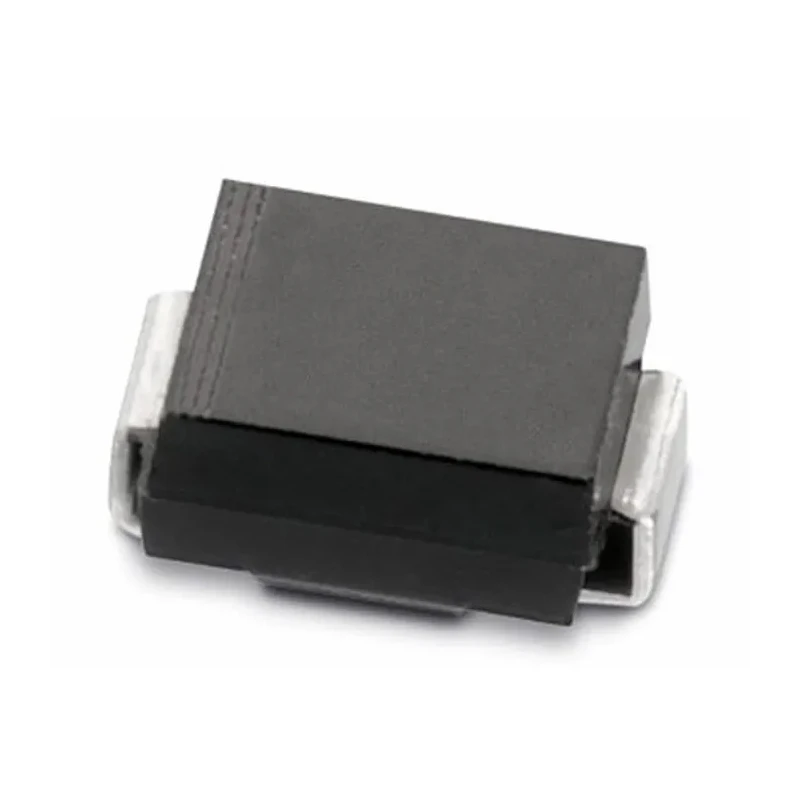

Wurth Elektronik 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-214 824521700

Wurth Elektronik 824521700 is a 1-element bi-directional TVS diode delivering 600 W peak pulse power dissipation, housed in a compact surface-mounted DO-214 package with 2 pins. It is engineered for transient voltage suppression in electronic circuits, effectively protecting sensitive semiconductor devices from voltage spikes and surges typically encountered in industrial, automotive, and communication equipment.

The diode features a minimum breakdown voltage of 8.19 V and clamps at a voltage of 12 V, making it suitable for low voltage surge protection. It supports high peak pulse current of 50 A and operates stably across a wide temperature range from -65°C to 150°C, ensuring reliable performance in harsh environments.

The glass passivated junction design yields fast response times and enhanced durability. With a low maximum reverse leakage current of 400 μA, it minimizes power loss and interference in sensitive electronic applications. The device's compact size of 4.32 mm length, 3.62 mm width, and 2.3 mm height facilitates efficient circuit board space utilization.

This TVS diode series WE-TVSP from Wurth Elektronik is primarily designed for surface mounting in the DO-214 package type, making it easy to integrate into automated assembly lines. It offers excellent transient voltage protection for consumer electronics, industrial equipment, telecommunication devices, and automotive electronics, among other engineering applications.

Although this specific diode model does not carry any formal standards or automotive certification, it follows rigorous manufacturing processes ensuring quality and reliability. Its bidirectional configuration protects against both positive and negative voltage surges, enhancing circuit resilience.

The diode's low-profile DO-214 package allows compact and efficient design layouts for modern electronics. Tailored for industrial, laboratory, and electronic manufacturing applications requiring transient voltage suppression.

Surface mount format simplifies and accelerates PCB assembly and production operations. Ideal for safeguarding power supplies, data lines, and sensitive circuit components from damage caused by voltage transients. Manufactured in China under Wurth Elektronik’s quality controls, ensuring consistent product performance.
