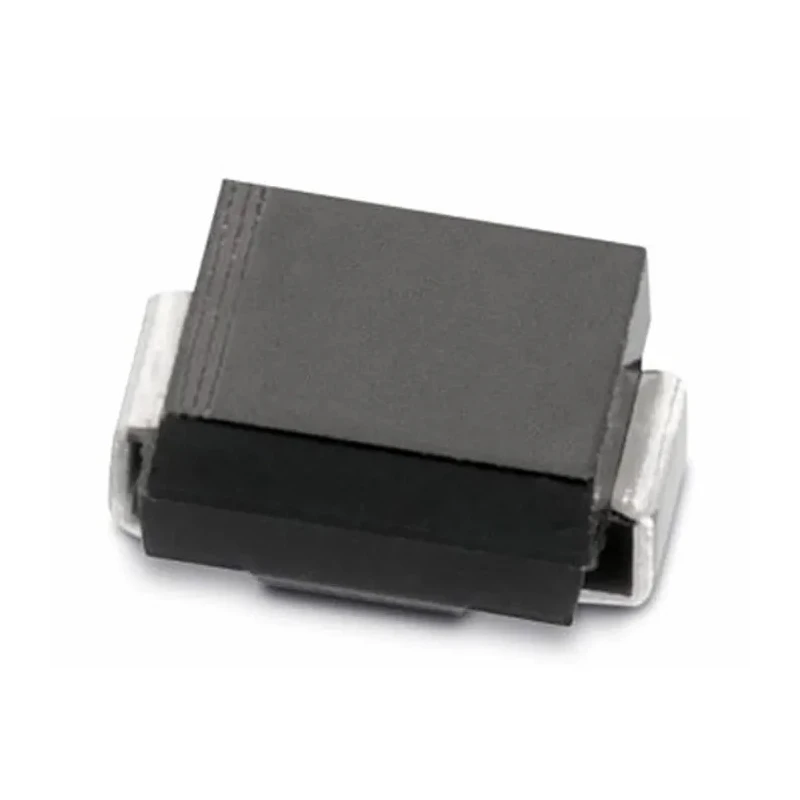

Wurth Elektronik 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-214 824521261

Wurth Elektronik 824521261 is a 1-element bi-directional transient voltage suppressor (TVS) diode designed for robust protection against voltage spikes and surges in electronic circuits. Rated for 600 W peak pulse power dissipation, this surface mount device is housed in a compact DO-214 package, making it suitable for various power and signal line protection applications.

The diode supports a bi-directional configuration, allowing it to clamp voltage transients in both directions efficiently. With a minimum breakdown voltage of 30.4 V and a clamping voltage of 42.1 V, it provides reliable suppression against threatening voltage spikes, safeguarding sensitive components.

Operating over a wide temperature range from -65°C up to 150°C, the device ensures stability and performance in harsh industrial environments. Its small dimensions (length 4.32 mm, width 3.62 mm, height 2.3 mm) and surface mount design facilitate space-saving on circuit boards, suitable for high-density electronic assemblies.

The diode features a glass passivated junction for enhanced durability and fast response time for instantaneous transient voltage suppression. It supports a maximum peak pulse current of 14.3 A, effectively dissipating transient energy.

Additional benefits include a low reverse leakage current of 1 μA, promoting energy efficiency and reduced thermal stress in circuits. The device meets effective protection standards, albeit without specific approvals or automotive certifications.

This product is ideal for use in industrial electronics, power supply protection, automotive electronics systems, communication equipment, and general purpose surge protection in sensitive devices that require high reliability and performance.

Manufactured in China, this diode maintains Wurth Elektronik's commitment to quality and reliability. Explore more in EnvMart's Semiconductor category to find compatible protective components and accessories. Bi-directional transient voltage suppressor diode.

600 W peak pulse power dissipation. Surface mount DO-214 package with 2 pins. Operating temperature range: -65°C to 150°C. Minimum breakdown voltage of 30.4 V and clamping voltage of 42.1 V. Maximum peak pulse current of 14.3 A.

Glass passivated junction for durability. Compact dimensions: 4.32 mm x 3.62 mm x 2.3 mm. Low reverse leakage current of 1 μA. Manufactured in China with high quality standards.
