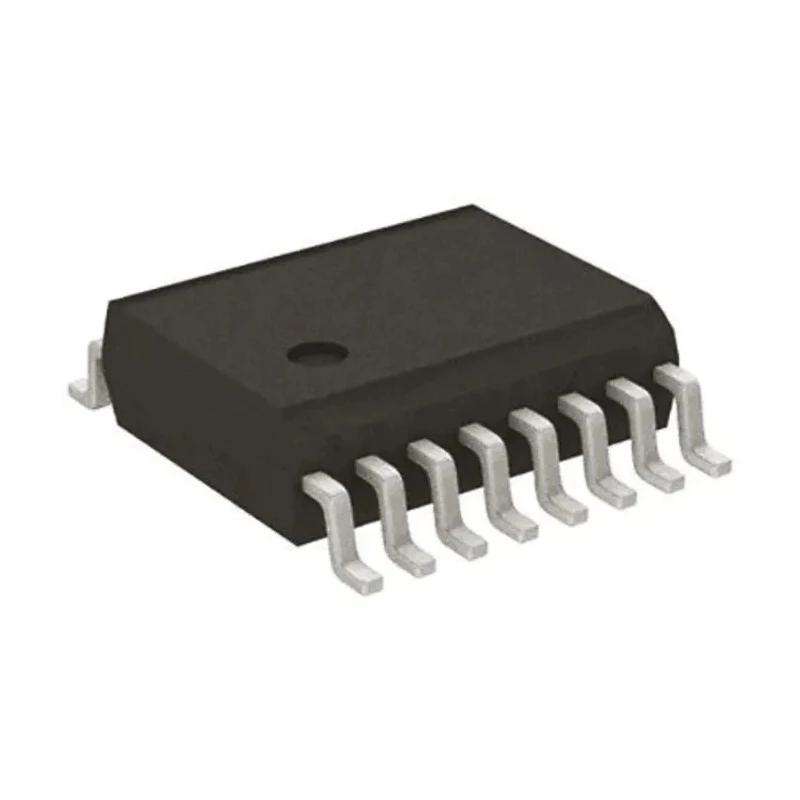

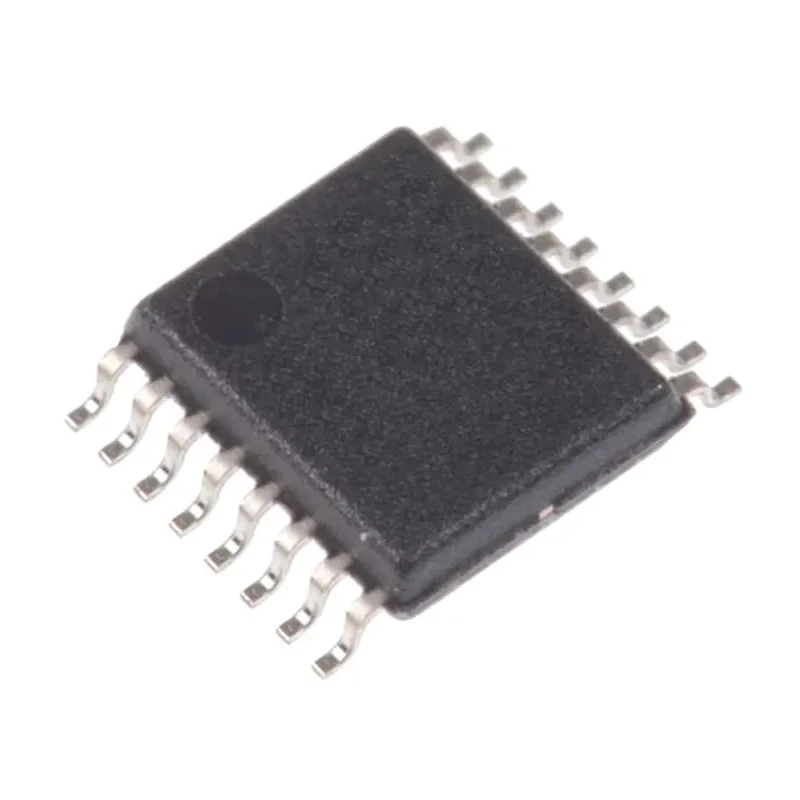

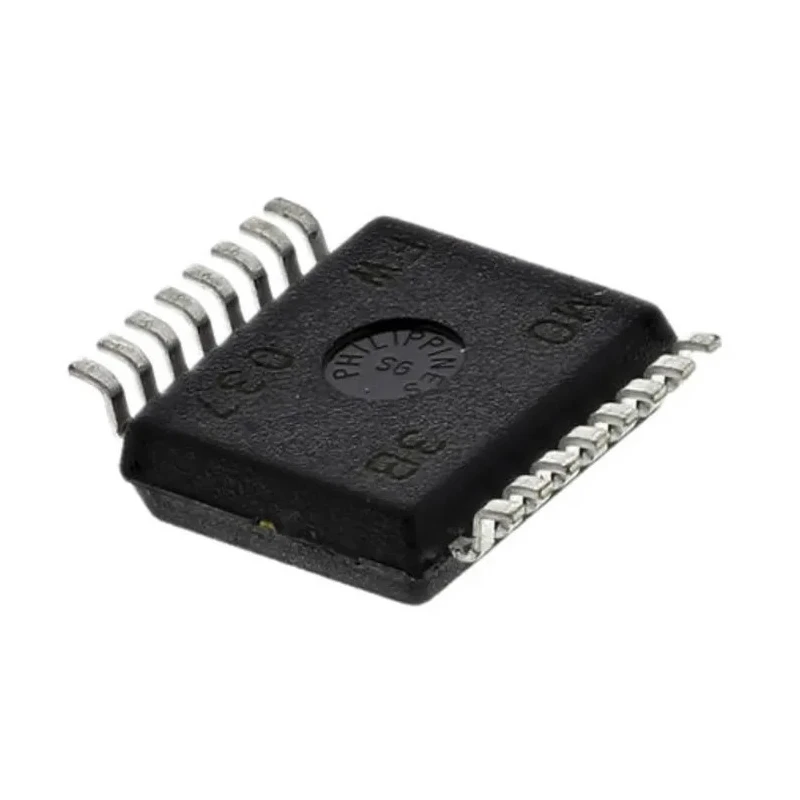

Renesas Electronics Line Transceiver TTL/CMOS 3V–5.5V 16-Pin SSOP ICL3221EIAZ-T

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics Line Transceiver TTL/CMOS 3V - 5.5V 16-Pin SSOP ICL3221EIAZ-T

Name: Renesas Electronics Line Transceiver TTL/CMOS 3V - 5.5V 16-Pin SSOP ICL3221EIAZ-T
Brand: Renesas Electronics
SKU: 136800
Price: 1.91 USD
Availability: InStock



Category Line Interface ICs Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	2mm
Length	10.6mm
Model	ICL3221EIAZ-T
Width	8.2mm
Mount Type	Surface
Output type	TTL/CMOS
Series	ICL32xxE
Input Type	Single Ended
Maximum Operating Temperature	125°C
Package Type	SSOP
Minimum Operating Temperature	-40°C
IC Type	Line Transceiver IC
Standards/Approvals	V.28/V.24, EIA/TIA-232, IEC61000-4-2, RoHS
Pin Count	16
Maximum Supply Voltage	5.5V
Logic Family	CMOS
Logic Function	Transceiver
Minimum Supply Voltage	3V
Maximum High Level Output Current	1mA
Maximum Propagation Delay Time @ CL	0.15μs
Maximum Low Level Output Current	1.6mA

Key Features

CMOS logic family optimizes power efficiency and integration.
Single-ended input with TTL/CMOS compatible output.
Mount type is surface mount with SSOP package for compact PCB designs.
Supports data rates up to 1Mbps with propagation delay of 0.15μs.
Operating temperature range from -40°C to 125°C for robust industrial use.
Complies with V.28/V.24, EIA/TIA-232, IEC61000-4-2, and RoHS standards.
Maximum high-level output current of 1mA and low-level output current of 1.6mA.
Not rated as automotive standard compliant.

Product Description

Renesas Electronics ICL3221EIAZ-T is a line transceiver IC designed for RS-232 communication interface requirements. Featuring a CMOS logic family and TTL/CMOS output compatibility, it delivers efficient data transmission with low power consumption. The IC supports operating voltage from 3V to 5.5V, fitted within a compact 16-pin SSOP surface-mount package, enabling easy integration into modern electronic systems.

This transceiver supports data rates up to 1Mbps with a maximum propagation delay time of 0.15 microseconds, ensuring reliable high-speed communication for industrial and commercial electronics.

Designed for harsh environments, it operates reliably over a wide temperature range from -40°C to 125°C and conforms to international standards such as V.28/V.24, EIA/TIA-232, IEC61000-4-2, and RoHS for electrostatic discharge protection and environmental compliance.

The product dimensions are 10.6mm in length, 8.2mm in width, and 2mm in height, supporting compact space designs in electronics manufacturing. CMOS logic operation enables low power consumption and high integration. Surface mount SSOP package facilitates automated assembly processes.

Robust temperature tolerance suitable for industrial, communication, and embedded applications. Compliant with major industry standards ensuring broad compatibility. Efficient line driver with output currents suited for typical RS-232 signalling needs.

This versatile line transceiver IC is ideal for use in industrial automation, communication devices, instrumentation, and other electronic applications requiring reliable RS-232 data interface solutions.
