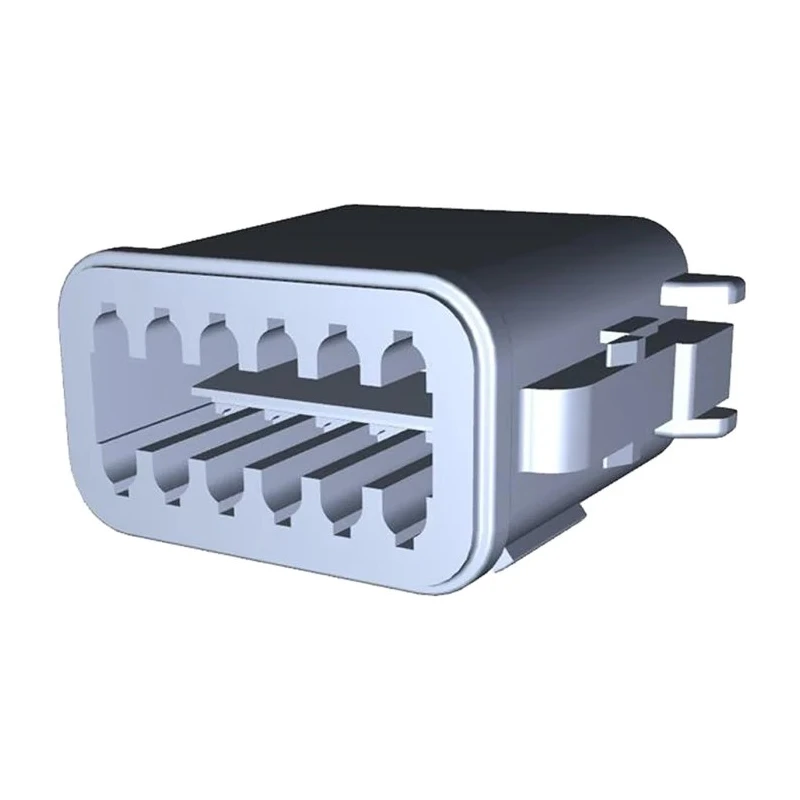

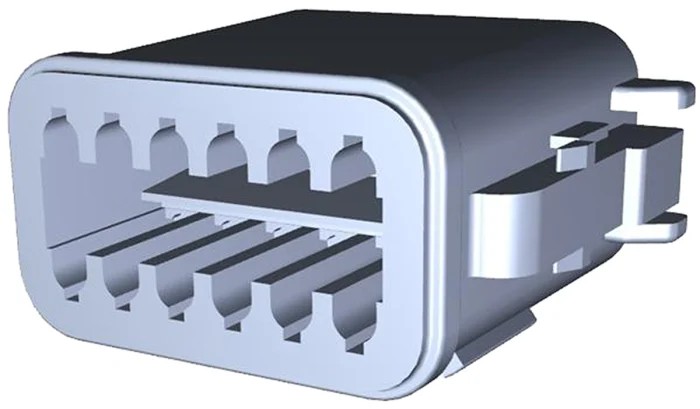

Deutsch Automotive Connector Female Grey In-Line 12 Way Crimp Termination DT06-12SA

Deutsch DT06-12SA Automotive Connector Female Grey In-Line 12 Way Crimp Termination is engineered for robust and reliable wire-to-wire automotive electrical connections. Its polyamide fibreglass housing ensures mechanical strength and excellent environmental sealing for demanding applications in automotive, industrial, and commercial equipment.

This 12-contact connector uses size 16 DEUTSCH contacts, rated at 13 amps continuous current each, arranged in two rows for efficient cable organization. The crimp termination type enables secure electrical and mechanical connections to cables sized 14-20 AWG (2.5-0.5mm²).

Operating safely from -55°C up to 125°C, this connector suits harsh temperature environments commonly encountered in automotive and industrial sectors. Its integrated latch system guarantees a reliable mating connection, while wedgelocks confirm contact alignment and retention for electrical integrity.

Product dimensions include a width of 40.56mm, depth of 30.94mm, and height of 18.19mm, providing a compact footprint for in-line mounting. The housing’s grey polyamide fibreglass material resists impact, vibration, and environmental wear, ensuring longevity and robust performance.

Certifications including EU RoHS and EU ELV demonstrate compliance with environmental regulations. The DT series connectors provide high reliability, versatility, and ease of installation for automotive wiring harnesses, industrial machinery, and transportation systems.

Designed for wire-to-wire connections with 12 contacts in a 2-row configuration. Features crimp termination and an integrated latch for secure mating. Operates within -55°C to +125°C temperature range for versatile applications.

Housings made from polyamide fibreglass provide robust durability and are grey in color. Current rating of 13A per contact with steel and zinc plated contacts. Compact in-line mount type dimensions: 40.56mm width, 30.94mm depth, and 18.19mm height.

Meets EU RoHS and EU ELV standards ensuring compliance and environmental safety.

This Deutsch DT automotive connector is an ideal solution for industrial and automotive electrical systems requiring reliable, sealed multi-contact connectors. Explore more Automotive Connector solutions at EnvMart to suit your needs.
