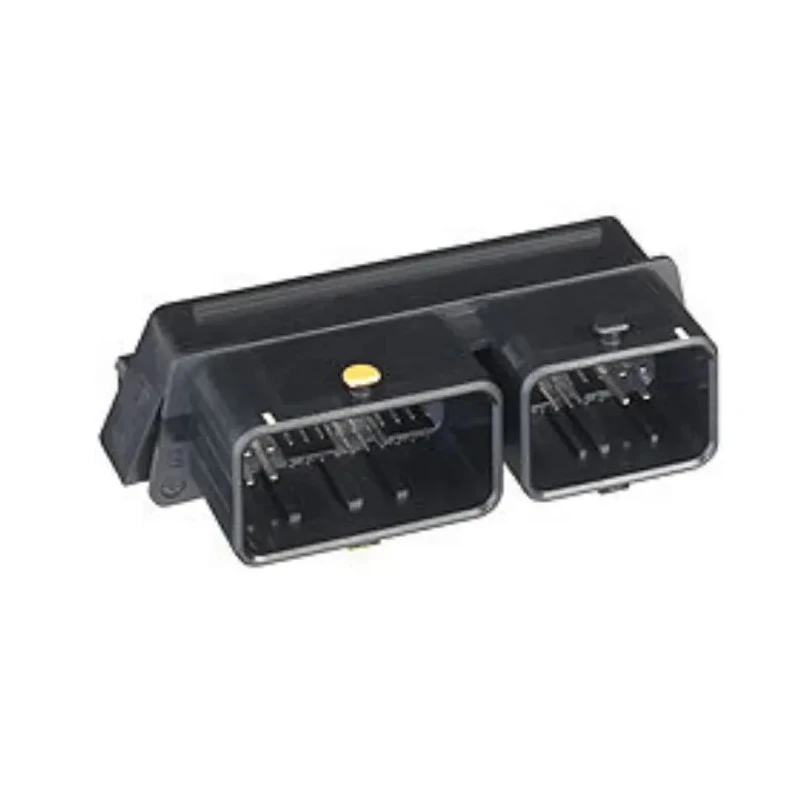

Molex CMC Automotive Connector Male Black Through Hole 80 Way Solder Termination 502225-0801
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Colour | Black |
| Current | 6A |
| Height | 30.6mm |
| Depth | 49mm |
| Width | 99mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | CMC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Header |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 4 |
| Standards/Approvals | EU RoHS, REACH SVHC |
| Contact Plating | Tin |
| Number of Contacts | 80 |
Key Features
- Features 80-way male connector with solder termination for reliable wire connections.
- Constructed with durable polybutylene terephthalate housing that resists abrasion and high temperatures.
- Copper alloy contacts with tin plating provide corrosion resistance and long service life.
- Rated for 6A current with operation from -40°C to 105°C temperature range.
- Through-hole mount style suitable for secure PCB installation.
- Measures 99 mm width, 49 mm depth, and 30.6 mm height for compact integration.
- Designed for automotive, agricultural, marine, and construction vehicle uses.
- Complies with EU RoHS and REACH SVHC standards for hazardous substances.
Product Description
Molex 502225-0801 is a male automotive connector from the CMC series featuring through-hole mounting and solder termination with 80 contacts. This black connector is designed to provide high-density and reliable connections in demanding automotive and industrial environments.
The housing is made of polybutylene terephthalate, offering excellent resistance to abrasion, wear, and temperature extremes up to 105°C. Copper alloy contacts are tin-plated to ensure durability and corrosion resistance, allowing stable electrical performance in moist or harsh conditions.
Rated for 6 amps of current and enduring temperatures ranging from -40°C to 105°C, this connector suits a variety of applications including agricultural equipment, trucks, construction vehicles, automotive manufacturing, and marine industry.
Its through-hole mount and 4-row configuration facilitate error-free PCB assembly, enhanced by a leveraging and polarization design that prevents incorrect mating. The compact size, 99 mm wide by 49 mm deep and 30.6 mm high, optimizes space on circuit boards while supporting a large number of circuits in a single connector.
80-way male connector with solder termination for secure wiring. Polybutylene terephthalate housing provides abrasion and heat resistance. Copper alloy contacts with tin plating resist corrosion for longevity. Electrical current rating of 6A with wide operating temperature range.
Through-hole mount style designed for PCB integration. Compliant with EU RoHS and REACH SVHC environmental standards. Ideal for automotive, agricultural, marine, and construction applications.
This Molex Automotive Connector enhances vehicle electronics reliability by offering robust physical and electrical performance, ensuring secure and durable circuit connections in tough conditions. EnvMart offers this technical connector solution as part of its automotive and electronic components category, supporting professional industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive connector is rated for a current of 6A.
It operates within a temperature range of -40°C to 105°C.
The connector measures 99 mm in width, 49 mm in depth, and 30.6 mm in height.
It features solder termination for secure wiring connections.
The housing is constructed from polybutylene terephthalate, which resists abrasion and high temperatures.
This model has a total of 80 contacts.
It features a through-hole mount style suitable for secure PCB installation.
It complies with EU RoHS and REACH SVHC standards for hazardous substances.
The contacts are made of copper alloy with tin plating for corrosion resistance.
It is designed for use in automotive, agricultural, marine, and construction vehicle applications.
This connector features a 4-row configuration for enhanced connectivity.
The connector is black in color.
