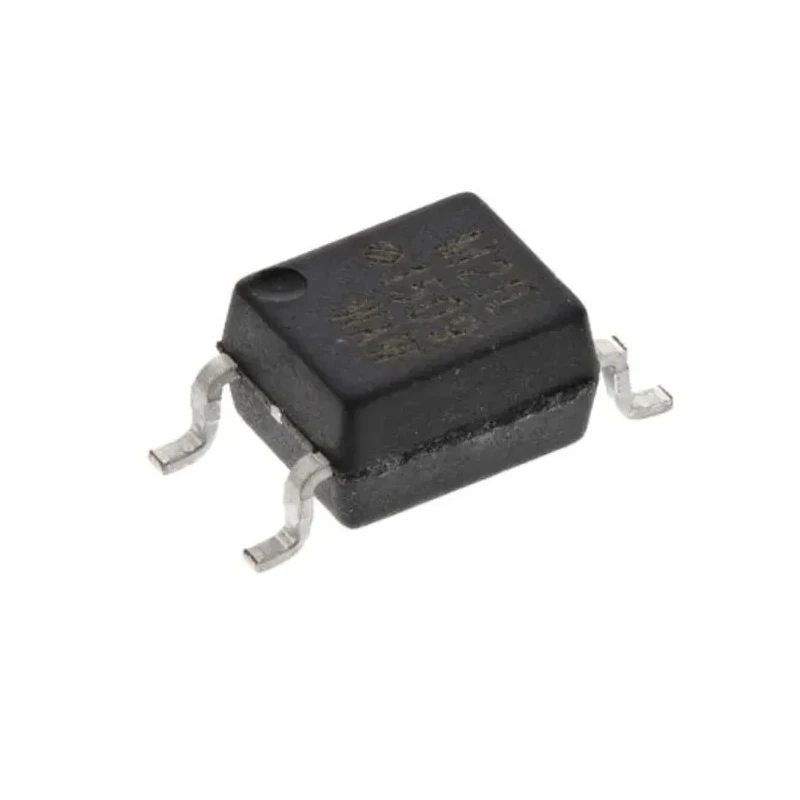

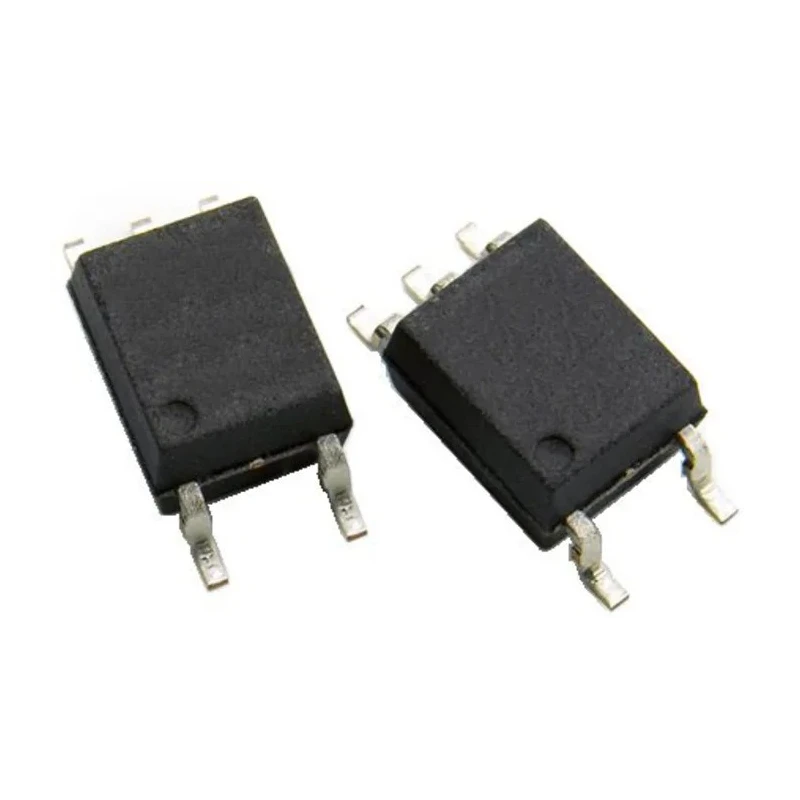

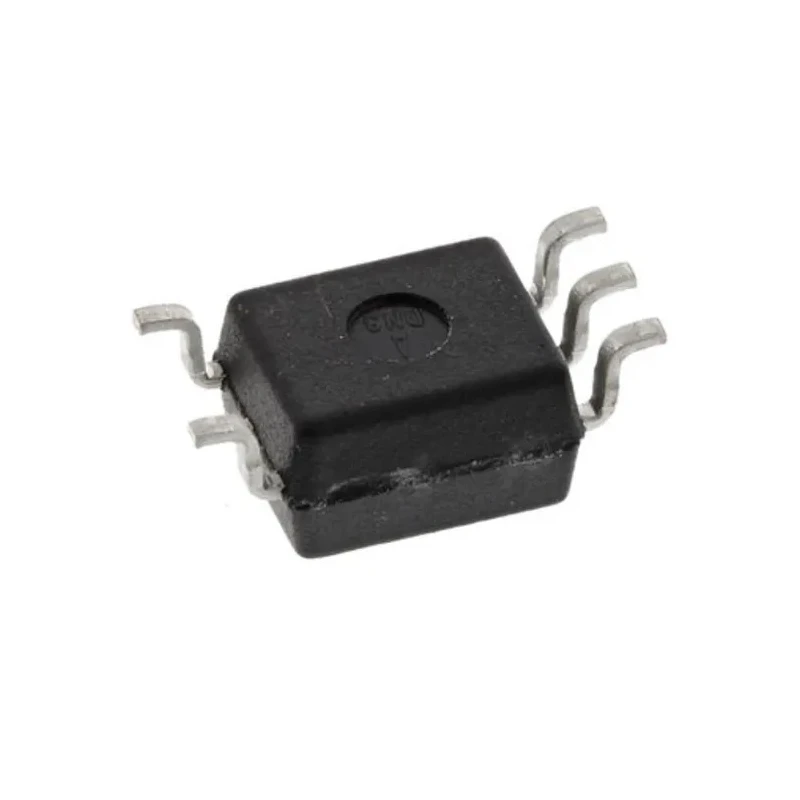

Broadcom Optocoupler Surface Mount 5-Pin SO Package 1 Channel 1.8V Forward Voltage 20mA Input Current HCPL-M456-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-M456-000E |
| Mount Type | Surface |
| Series | HCPL |
| Maximum Operating Temperature | 100°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 20mA |
| Number Of Channels | 1 |
| Standards/Approvals | IEC/EN/DIN EN 60747-5-5, RoHS, UL 1577, CSA |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 5 |
Key Features
- Designed for intelligent power module interfaces providing short propagation delay.
- Operates over a wide temperature range from -40°C to 100°C.
- Offers high isolation voltage of 3750 Vrms ensuring reinforced insulation.
- Complies with IEC/EN/DIN EN 60747-5-5, RoHS, UL 1577, and CSA standards.
- Features fast IGBT switching and high common mode transient rejection.
- Ideal for automotive and high temperature industrial applications.
- Packaged in a tube ready for efficient production insertion.
- Supports reliable and robust optocoupler performance in electronic circuits.
Product Description
Broadcom HCPL-M456-000E optocoupler is a surface mount device designed with a 5-pin SO package and a single channel. It features a maximum forward voltage of 1.8V and can handle a maximum input current of 20mA, making it suitable for high-speed signal isolation and power module interface applications.
This optocoupler operates reliably across a broad temperature range from -40°C to 100°C, making it fit for use in harsh and demanding industrial and automotive environments. It offers a high isolation voltage of 3750 Vrms, providing reinforced insulation to safeguard sensitive electronics from high voltage surges and noise.
Certified to meet IEC/EN/DIN EN 60747-5-5 standards along with RoHS, UL 1577, and CSA approvals, this device ensures compliance with safety and environmental guidelines. It delivers fast IGBT switching capabilities and exhibits high common mode transient rejection, which is critical for maintaining signal integrity in power electronics.
The optocoupler is part of Broadcom's HCPL series, widely recognized for durable and efficient performance in intelligent power module interfaces. It is packaged in tubes suitable for automated assembly lines to enhance manufacturing productivity.
Typical industrial applications include power inverters, motor controls, and other systems requiring galvanic isolation with excellent electrical noise immunity. Its robust characteristics support reliable operation within the electronics, power, automotive, and industrial automation sectors.
Designed for intelligent power module interface with fast switching. Wide operating temperature from -40°C to 100°C for harsh environments. High isolation voltage of 3750 Vrms for reinforced electrical insulation. Compliant with IEC/EN/DIN EN 60747-5-5, RoHS, UL 1577, and CSA approvals.
Single channel with 5-pin SO surface mount package for compact design. Supports efficient automation with tube packaging. Ideal for automotive and industrial electronic circuits requiring reliable isolation. Explore our extensive range of Optocouplers and electronic components at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 100°C, making it suitable for high-temperature environments.
It offers a high isolation voltage of 3750 Vrms, ensuring reinforced electrical insulation for sensitive electronics.
This optocoupler features a single channel design, which is typical for applications requiring signal isolation.
The maximum input current for the HCPL-M456-000E is 20mA, allowing it to handle significant signal levels.
It operates reliably over a wide temperature range from -40°C to 100°C, suitable for harsh environments.
This model complies with IEC/EN/DIN EN 60747-5-5, RoHS, UL 1577, and CSA standards, ensuring safety and environmental compliance.
It is packaged in a 5-pin SO (Small Outline) surface mount package, which is designed for compact applications.
Yes, it features fast IGBT switching capabilities, which are essential for maintaining signal integrity in power electronics.
The maximum forward voltage for this optocoupler is 1.8V, suitable for various electronic applications.
It is ideal for automotive and industrial applications, particularly in power inverters and motor controls requiring galvanic isolation.
The country of origin for this model is India, reflecting its manufacturing location.
High common mode transient rejection is critical for maintaining signal integrity, especially in environments with electrical noise.
