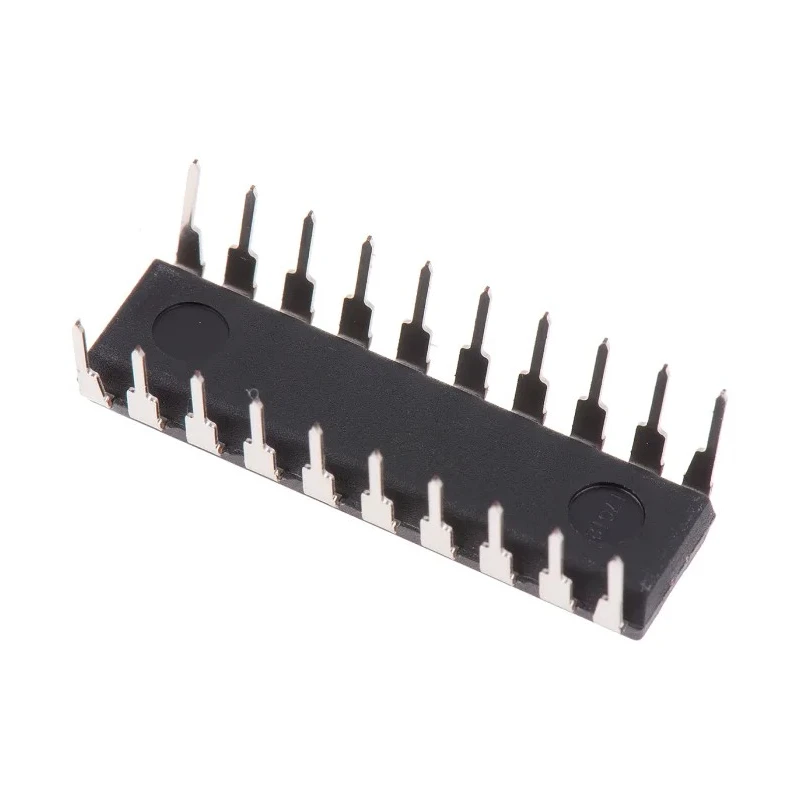

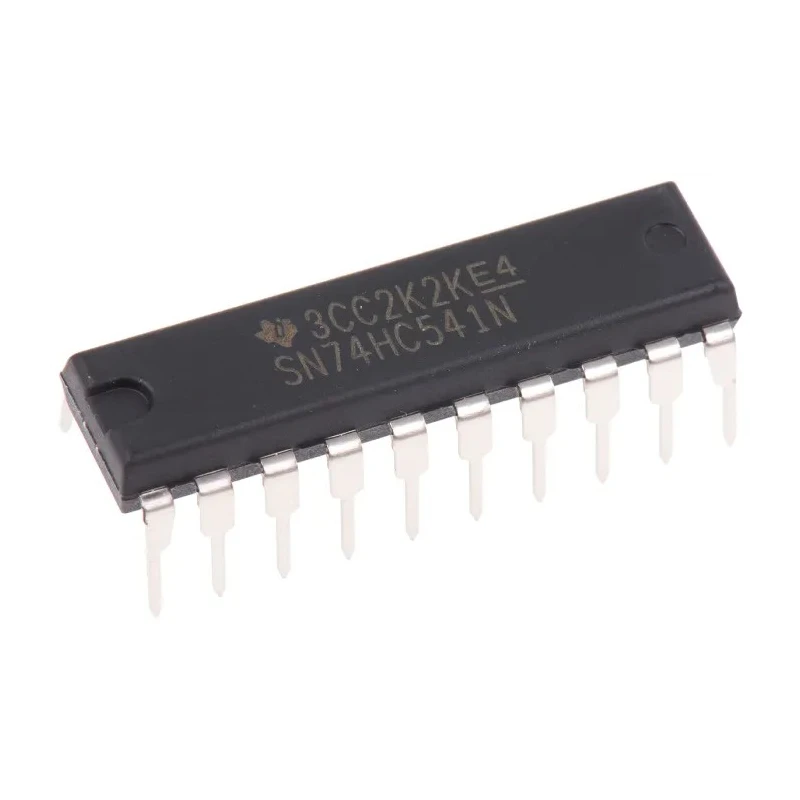

Texas Instruments 8-Channel Buffer & Line Driver Non-Inverting 3-State 20-Pin PDIP SN74HC541N

Texas Instruments SN74HC541N is an 8-channel buffer and line driver designed to provide high-performance, non-inverting signal buffering and line driving for interface applications. Packaged in a 20-pin PDIP, this device supports 3-state outputs enabling bus-oriented systems to use shared lines effectively. The device operates with supply voltages from 2 to 6 volts, supporting a wide range of CMOS logic systems.

The buffer utilizes silicon gate CMOS technology, delivering high-speed logic operation with low power dissipation. It offers output drive currents of up to ±7.8 mA, suitable for driving moderate loads in digital circuits. The non-inverting characteristic ensures signal integrity across the channels, and 3-state outputs allow for multiple device outputs to share the same bus lines without interference.

This line driver has a maximum propagation delay of 10 nanoseconds at a specified load, guaranteeing fast signal transmission suitable for timing-sensitive applications. Its thermal operating range from -45 to 85 degrees Celsius makes it appropriate for industrial and commercial environments.

The SN74HC541N device is designed for through hole PCB mounting in a robust 20-pin PDIP package, facilitating easy manual or automated assembly. With a low quiescent current of 80 microamperes, it helps in reducing overall system power consumption.

This product finds applications in industrial control systems, communication interface circuits, instrumentation, and general logic buffering tasks in electronic designs. Its compatibility with CMOS input and output levels simplifies integration into existing systems.

Operates from 2 V to 6 V power supply for versatile voltage compatibility. Buffers 8 channels with non-inverting 3-state outputs for flexible bus control. Provides ±7.8 mA high and low level output currents, suitable for driving loads.

Through-hole 20-pin PDIP package supported for reliable mounting. Temperature rating from -45°C to 85°C ensures industrial robustness. Fast propagation delay of 10 ns supports high-speed digital signaling. Low supply current of 80 µA reduces power consumption.

Built with silicon gate CMOS technology ensuring low power and high speed. Choose Texas Instruments buffers and line drivers at EnvMart for reliable semiconductor components tailored to your electronic and industrial applications.
