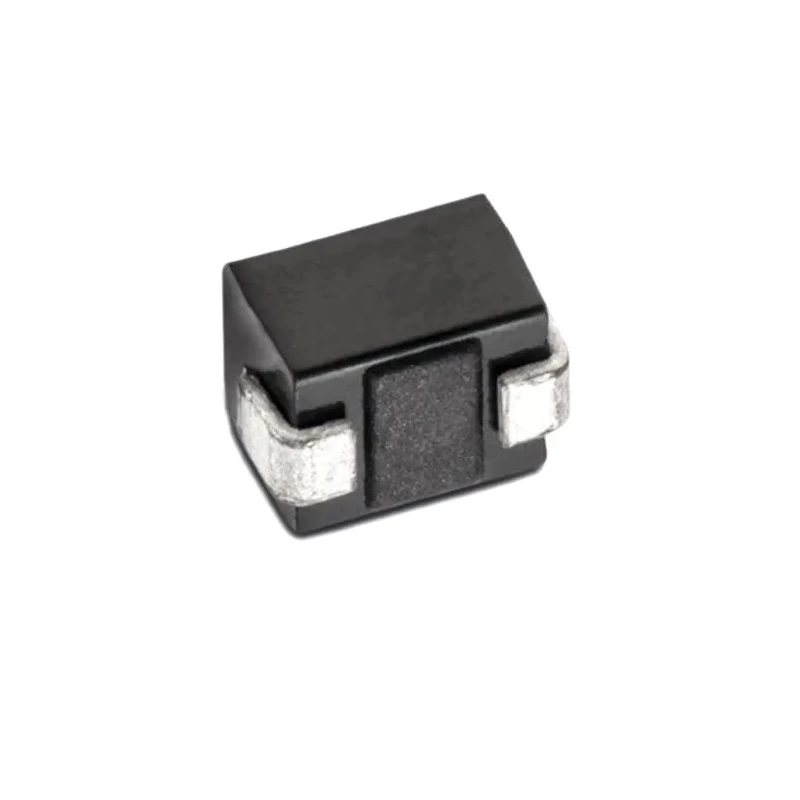

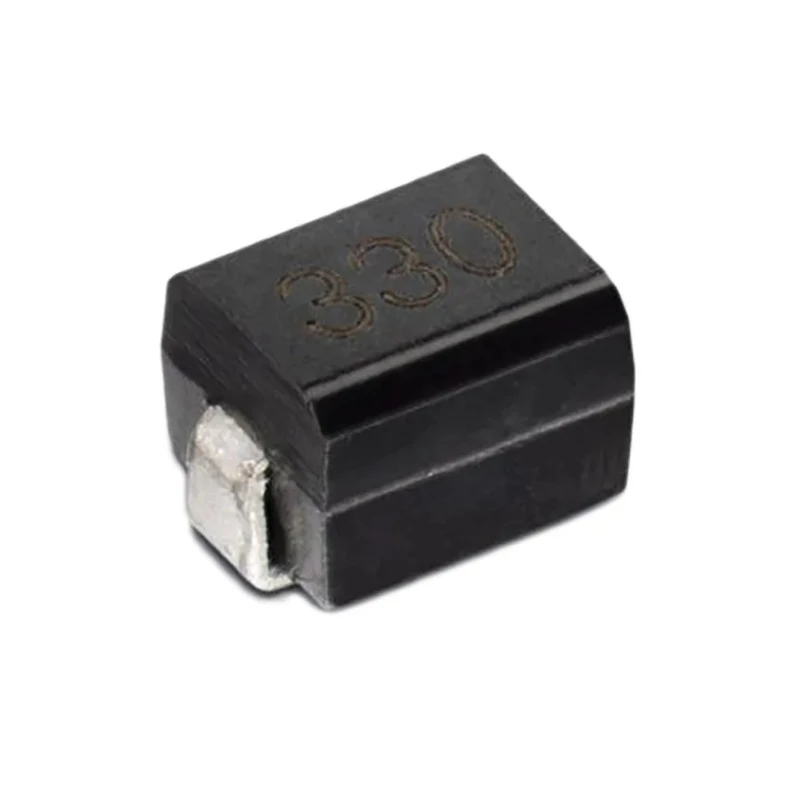

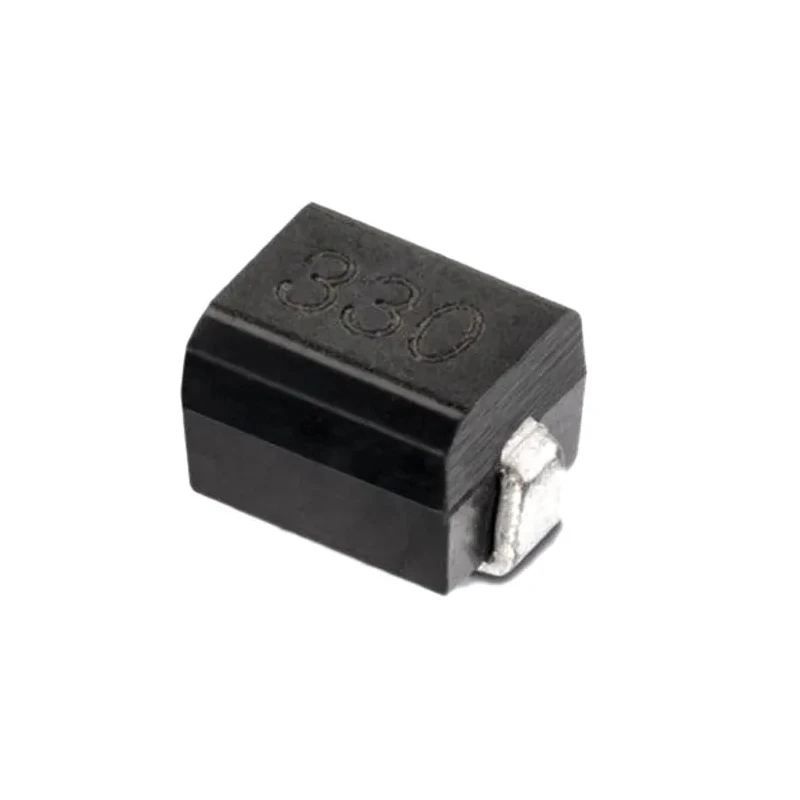

Wurth Elektronik WE-GFH 3225 Unshielded Surface Mount Inductor 68 μH ±10% 225 mA 14 MHz 2.9x2.5x2.2mm 7447649168

Wurth Elektronik 7447649168 is a high-quality unshielded surface mount inductor from the WE-GFH series, featuring a 68 μH inductance with ±10% tolerance. This inductor is specially designed with a powdered iron core and moulded construction, offering enhanced performance at high frequencies, making it ideal for acoustic and HF filtering circuits.

The component’s compact dimensions (2.9 mm length, 2.5 mm depth, 2.2 mm height) and 3225 package enable space-saving on printed circuit boards while supporting a maximum DC current of 225 mA for robust functionality in demanding applications.

The inductor provides a maximum DC resistance of 8.45 Ω and a maximum self-resonant frequency of 14 MHz, ensuring efficient operation in HF circuits. Its surface mount termination is compatible with automated PCB assembly lines, promoting manufacturing efficiency.

Engineered without shielding, this inductor offers design flexibility in electronic components where specific electromagnetic compatibility requirements are necessary. The part complies with REACH and RoHS, affirming its suitability for environmentally conscious engineering projects.

Its operating temperature range from -40°C to 125°C enables reliable use across various industrial and commercial environments, including telecommunications, automotive electronics, and power supplies.

The inductor is molded with a powdered iron core for superior magnetic characteristics. Compact 3225 surface mount package facilitates high-density board layouts. Maximum DC current of 225 mA supports stable device operation.

Inductance tolerance is ±10% for predictable circuit performance. Maximum self-resonant frequency of 14 MHz supports HF circuit designs. Operating temperature range from -40°C to +125°C accommodates diverse applications.

Compliance with REACH and RoHS protects against hazardous substances. Packaged in tape & reel format for optimized manufacturing.

This Wurth Elektronik surface mount inductor is ideal for use in industrial electronics, communication equipment, high-frequency filtering, and acoustic circuits. It provides dependable magnetic performance in a compact form factor meeting stringent quality and environmental standards.
