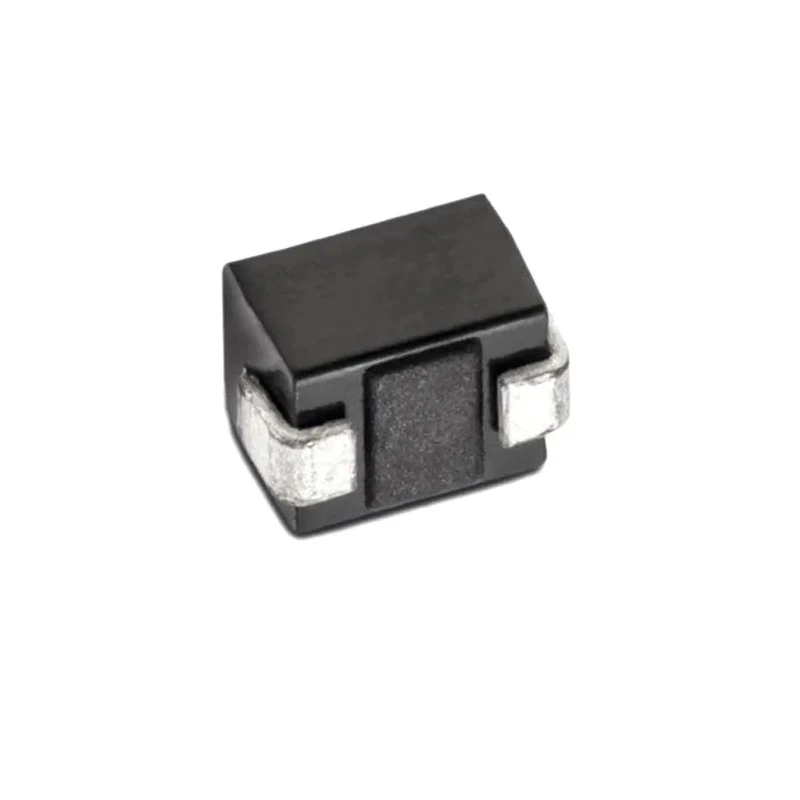

Wurth Elektronik Wirewound Surface Mount Inductor 4.7μH 800mA Iron Core Moulded 3225 WE-GFH 744764904
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.2mm |
| Length | 2.9mm |
| Depth | 2.5mm |
| Packaging | Tape & Reel |
| Series | WE-GFH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Iron |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS, REACH |
| Package/Case | 3225 |
| Maximum DC Current | 800mA |
| Pin Count | 2 |
| Maximum DC Resistance | 520mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 63MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Moulded |
Key Features
- Compact 3225 package size ensures efficient PCB space utilization.
- Iron core construction provides stable performance and supports high current applications.
- Moulded design with ±20% inductance tolerance maintains reliability.
- Maximum DC resistance of 520mΩ minimizes power loss.
- Suitable operating temperature range from -40°C to 125°C for varied environments.
- Non-shielded with 2 termination pins for surface mount placement.
- Ideal for acoustic filtering, high frequency filtering, and HF circuit applications.
- Compliant with RoHS and REACH standards ensuring environmental safety.
Product Description
Wurth Elektronik 744764904 WE-GFH series Wirewound Surface Mount Inductor is designed for high frequency applications requiring compact and robust performance. With an inductance value of 4.7μH and a maximum DC current rating of 800mA, this inductor features an iron core and a moulded construction that delivers reliable inductance stability and durability.
The inductor is housed in a standard 3225 (2.9mm x 2.5mm x 2.2mm) package suitable for modern surface mount technology processes. Its non-shielded design and 2-pin termination style facilitate easy PCB assembly. The inductance tolerance of ±20% ensures consistent performance within specified limits.
With a maximum DC resistance of 520mΩ, the inductor minimizes power losses, offering efficient current handling and thermal performance. It operates reliably within a temperature range from -40°C to 125°C, making it suitable for industrial, communication, and high frequency circuit applications including acoustic and HF filtering.
Compliant with RoHS and REACH directives, this environmentally responsible component is packaged in tape and reel format for optimized manufacturing processes. The WE-GFH series supports higher currents with lower resistance compared to standard inductors, enhancing the efficiency of electronic circuit designs.
Compact 3225 package for space-efficient PCB designs. Iron core moulded inductor ensures durability and consistent inductance. Supports up to 800mA DC current suitable for demanding electronic circuits. Wide operating temperature range (-40°C to 125°C) for versatile use.
Non-shielded design with 2 surface mount terminations allows ease of integration. RoHS and REACH compliant for environmental safety. Ideal for acoustic and high frequency filtering applications.
This inductor from Wurth Elektronik is ideally applied in industrial electronic circuits, high frequency components, telecommunications, and other advanced electronics requiring reliable surface mount inductance solutions.
Explore more Surface Mount Inductors from Wurth Elektronik and similar high-quality passive components on EnvMart to enhance your electronic designs and manufacturing efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 4.7μH.
This model has a maximum DC current rating of 800mA.
It is housed in a standard 3225 package size, which measures 2.9mm x 2.5mm x 2.2mm.
The maximum DC resistance is 520mΩ, which helps minimize power loss.
It operates reliably within a temperature range from -40°C to 125°C.
The inductor features an iron core construction.
This model has a surface mount termination style with 2 pins.
It is compliant with RoHS and REACH standards, ensuring environmental safety.
It is ideal for acoustic filtering, high frequency filtering, and HF circuit applications.
The minimum quality factor is 30, indicating its efficiency in circuit applications.
The maximum self-resonant frequency is 63MHz.
It is packaged in tape and reel format for optimized manufacturing processes.
