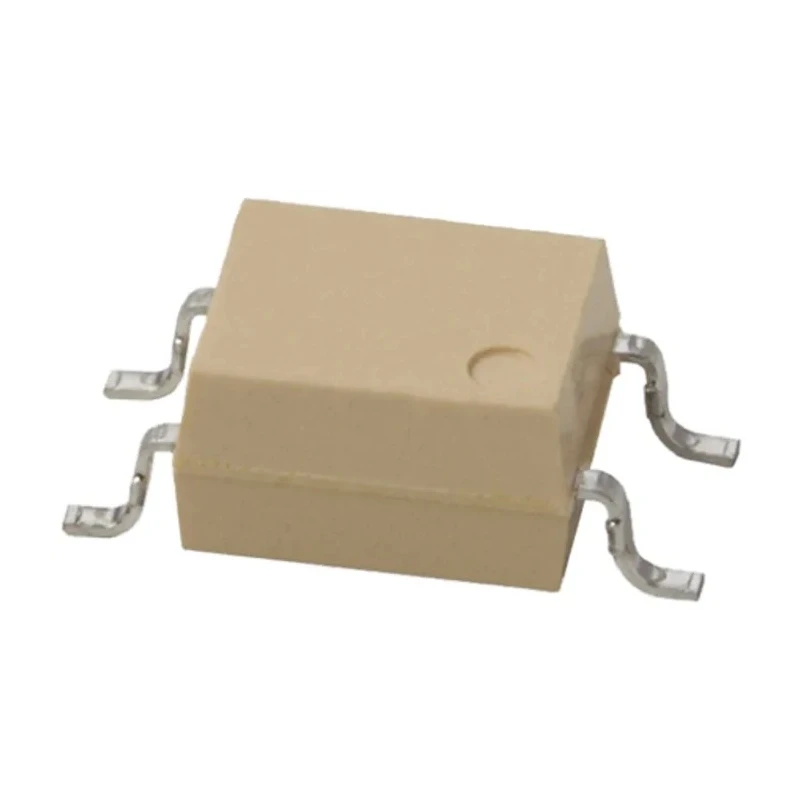

Toshiba TLP171A Series Solid State Relay 400 mA Load, Surface Mount, 60 V Load TLP171A

Toshiba TLP171A Series Solid State Relay (model TLP171A) is designed for applications requiring a robust and reliable electronic switching device. This relay features a maximum load current of 400 mA and load voltage up to 60 V, making it ideal for controlling low to medium power loads in various industrial, commercial, and consumer electronics. The surface mount SOP package facilitates compact PCB design, saving valuable circuit board space.

With a contact configuration of SPST and a MOSFET output type, the TLP171A relay ensures efficient and noise-free switching. It performs reliably across a wide operating temperature range from -40°C to 85°C, suitable for harsh environments. The relay’s low on-state resistance of 2 Ω reduces power dissipation and thermal stress during operation, while a minimal off-state leakage current of 1000 nA enhances energy efficiency when idle.

The relay package measures 4.4 mm in length and 3.9 mm in height, supporting dense PCB layouts in compact devices. Capacitance of 130 pF supports high-speed switching capabilities while maintaining signal integrity. Certified with standards such as UL 1577, CSA Component Acceptance Service, and EN 60747-5-5, it meets stringent safety and quality requirements.

Toshiba’s TLP171A is well-suited for industrial automation systems, signal conditioning, electronic control systems, and consumer electronics. Its surface mount design simplifies assembly processes in automated manufacturing environments.

Maximum load current of 400 mA for efficient switching applications. Surface mount design ensures easy integration into PCB assemblies. Maximum load voltage of 60 V suitable for various electronic circuits. SPST contact configuration providing simple on/off switching.

Operates reliably over -40°C to 85°C temperature range. Compact SOP package with dimensions 4.4mm length and 3.9mm height. MOSFET output type enabling low noise switching performance. Low on-state resistance of 2 ohms reduces power loss and heat generation.

Off-state leakage current as low as 1000 nA minimizing standby power consumption. Capacitance of 130 pF supporting fast switching speeds and signal integrity. Explore more Toshiba semiconductor products and Solid State Relays on EnvMart for your electronic design and industrial automation needs.
