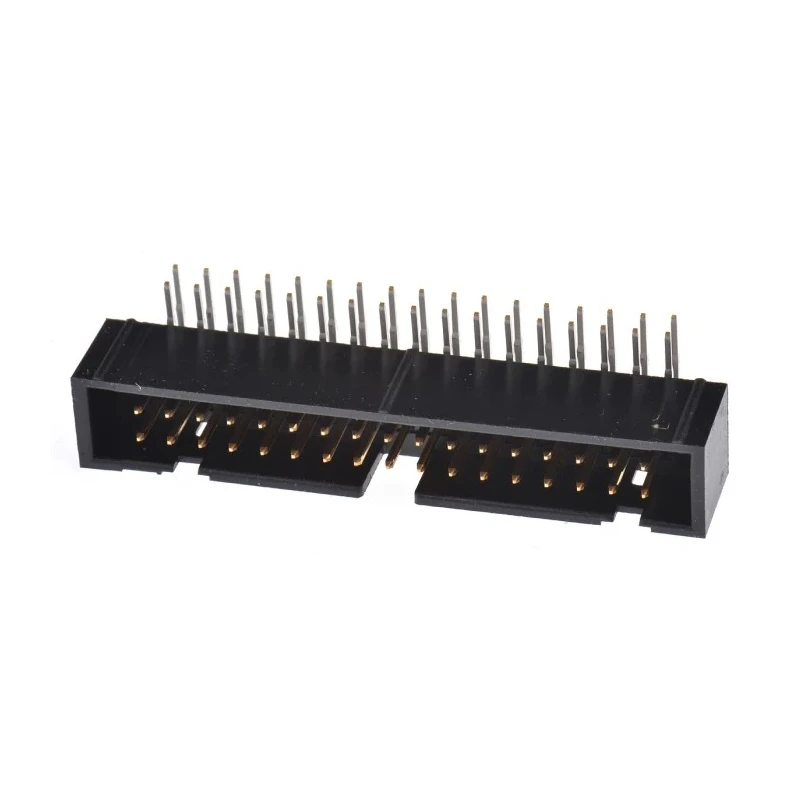

Hirose Right Angle Through Hole PCB Header, 34 Contacts, 2 Row, 2.54 mm Pitch, Shrouded, Brass Gold Plated Contact HIF3FC
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 200V |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 1A |
| Model | HIF3FC |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | HIF3FC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 34 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6mm |
Key Features
- The connector system supports board-to-board mounting with through hole mount type.
- Housing is made of durable polybutylene terephthalate with UL94V-0 rating.
- Contacts are brass with gold plating for excellent conductivity and corrosion resistance.
- Rated for 1 amp current and up to 200 volts operating voltage.
- Operating temperature range from -55°C to 85°C suits diverse industrial applications.
- Male contact gender with solder termination ensures reliable electrical performance.
- Tail pin length is 3 mm and mating pin length is 6 mm for optimal connection.
- Low profile height and shrouded construction protect contacts and facilitate stacking in compact assemblies.
Product Description
Hirose HIF3FC series right angle through hole PCB Header provides a robust, shrouded connector solution with 34 contacts arranged in 2 rows at a 2.54 mm pitch. Designed for board-to-board applications, this connector features a polybutylene terephthalate housing rated UL94V-0 for flame retardancy, combined with brass contacts plated in gold to maintain conductivity and long service life in industrial environments.
The connector supports operating voltages up to 200V and current up to 1 amp, suitable for various electrical and electronic equipment. Its male contact gender and solder termination deliver secure and reliable connections, while the tail pin length of 3 mm and mating pin length of 6 mm optimize mechanical stability. Operating temperatures range from -55°C to 85°C, accommodating extreme conditions in manufacturing, office automation, and computing sectors.
The HIF3FC series is engineered for compact stackable board layouts with a low profile that helps save PCB space. The shrouded contact design additionally protects pins from accidental damage and contact contamination.
The connector system supports board-to-board mounting with through hole type. Housing material is polybutylene terephthalate with UL94V-0 rating. Brass contacts are selectively gold plated to assure conductivity and corrosion resistance.
Rated current is 1 amp and voltage 200 volts. Operating temperature range is -55°C to 85°C. Contact gender is male and termination type is solder. Tail pin and mating pin lengths are 3 mm and 6 mm respectively. Shrouded design provides protection and aids stacking of connections.
Typical applications include computers, electronic equipment, and office automation machines.
These features make the Hirose HIF3FC series an excellent choice for industrial, manufacturing, laboratory, and commercial electronic PCB connectors, offering durability and reliability in demanding environments. For more specialized connector needs, explore other Hirose series and related components in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this model is 200 volts.
This connector is rated for a maximum current of 1 amp.
The tail pin length is 3 mm, while the mating pin length is 6 mm.
The contacts are arranged at a pitch of 2.54 mm.
It uses a solder termination type for secure connections.
The operating temperature range is from -55°C to 85°C.
The housing is made of polybutylene terephthalate, which has a UL94V-0 rating.
This model features 34 contacts arranged in 2 rows.
The contact gender is male, designed for reliable connections.
Yes, this connector is designed for board-to-board mounting with a through hole type.
The contacts are brass with gold plating for enhanced conductivity and corrosion resistance.
Typical applications include computers, electronic equipment, and office automation machines.
