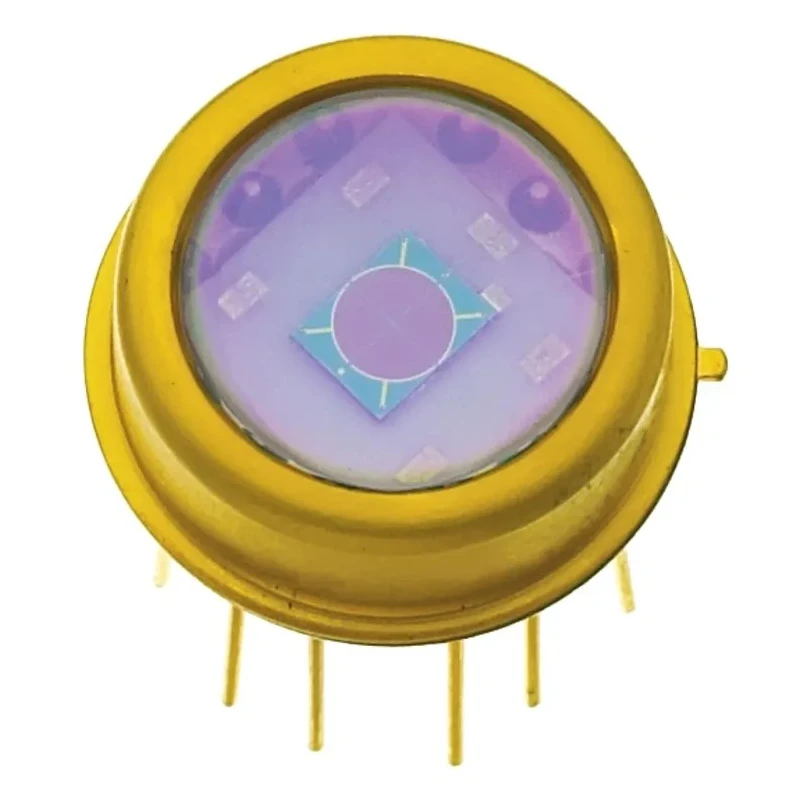

OSI Optoelectronics Infrared Photodiode, 65 ° Half Sensitivity Angle, Through Hole TO-8 Package FCI-InGaAs-Q3000

OSI Optoelectronics FCI-InGaAs-Q3000 is a high-performance infrared photodiode designed for precise and reliable infrared detection. Featuring a 65 ° half sensitivity angle and housed in a through hole TO-8 package, this photodiode is engineered for use in demanding industrial and scientific applications.

The device detects infrared light within a spectrum range of 1100nm to 1620nm, with peak sensitivity at 1550nm. This makes it suitable for a wide variety of infrared instrumentation, optical monitoring, power measurement, sensing applications, and medical devices. The photodiode operates with a minimal dark current of 0.2nA in reverse polarity, ensuring high accuracy and low noise performance.

Designed to perform across a broad temperature range from -25°C up to 85°C, the FCI-InGaAs-Q3000 ensures reliable operation under varying environmental conditions. Its fast response times with 24 nanoseconds typical rise and fall times facilitate rapid signal detection and processing.

The robust construction includes 8 pins and is supplied in a tape and reel packaging format for ease of automated assembly. Physical dimensions are 13.97mm length, 5mm width, 6.6mm height, and 15.24mm diameter, offering compatibility with many optical systems.

This photodiode is RoHS compliant, adhering to environmental and safety standards. Its breakdown voltage rating of 30V provides durability for high-performance applications. The large active area options (1mm, 1.5mm, and 3mm) enable enhanced responsivity for demanding infrared detection tasks.

Detects infrared spectrums with a peak sensitivity wavelength of 1550nm. Wide spectral range between 1100nm and 1620nm for versatile infrared applications. Motion through hole TO-8 package type with 8 pins for secure mounting.

Operating temperature range suitable for industrial and medical devices (-25°C to 85°C). Fast electrical response with 24ns rise and fall times. Low noise operation with 0.2nA dark current in reverse polarity configuration.

Environmental compliance with RoHS certification. Compact physical dimensions supporting diverse integration requirements. Breakdown voltage of 30V for high reliability. Large active area photodiodes with sizes of 1mm, 1.5mm, and 3mm available.

This OSI Optoelectronics infrared photodiode model FCI-InGaAs-Q3000 is ideal for applications in industrial measurement, optical sensing, power instrumentation, and medical diagnostics. It offers dependable performance and quality build within a compact footprint. For more OSI Optoelectronics components and Photodiodes, browse the Electronics Components category at EnvMart.
